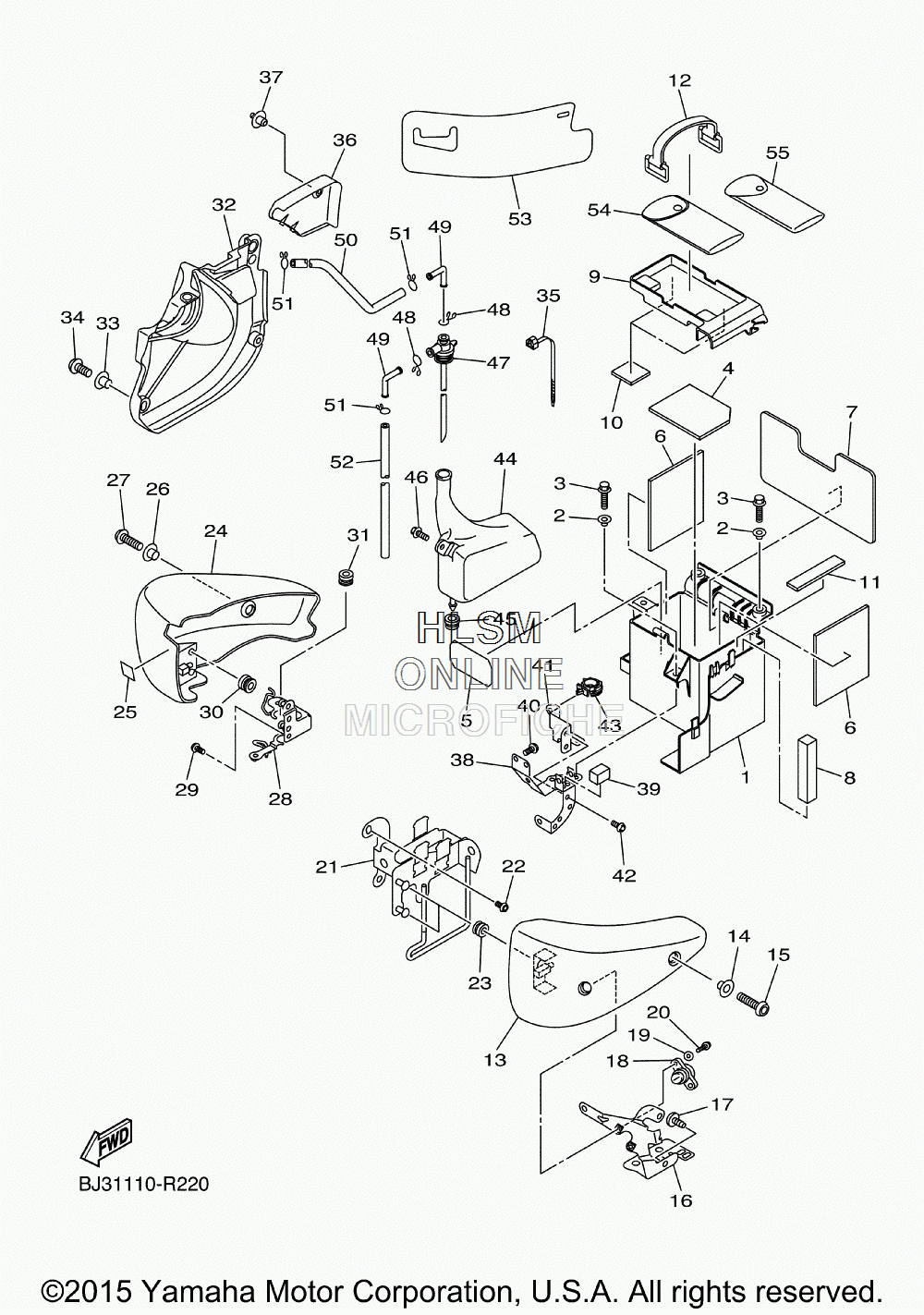

SIDE COVER для Yamaha STRYKER BULLET COWL [XVS13CGGY] - 2016 года выпуска
-
№АртикулНазвание
-
13D8-2177G-02-00 BOX, BATTERYBOX, BATTERY
-
290387-06267-00 COLLARCOLLAR
-
395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
451Y-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
55PX-21652-00-00 PROTECTORPROTECTOR
-
63D8-2174Y-00-00 DAMPERDAMPER
-
73D8-2174X-00-00 DAMPERDAMPER
-
83D8-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
93D8-28173-10-00 BOX, TOOLBOX, TOOL
-
102GH-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
111AE-2834E-00-00 DAMPER 3DAMPER 3
-
123L8-82131-01-00 BAND, BATTERYBAND, BATTERY
-
133D8-21711-00-PD COVER, SIDE 1 (MNM3)COVER, SIDE 1 (MNM3)
-
1490387-06173-00 COLLARCOLLAR
-
1590149-06023-00 SCREWSCREW
-
163D8-2175T-00-00 BRACKET 1BRACKET 1
-
1797702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
185PX-W2470-00-00 ROTOR SETROTOR SET
-
1990201-06034-00 WASHER, PLATEWASHER, PLATE
-
2090105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
2127D-2172M-00-00 BRACKET 3BRACKET 3
-
2292012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2390480-12550-00 GROMMETGROMMET
-
243D8-21721-00-PD COVER, SIDE 2 (MNM3)COVER, SIDE 2 (MNM3)
-
253MA-27491-00-00 PROTECTORPROTECTOR
-
2690387-06173-00 COLLARCOLLAR
-
2790111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2827D-2172N-00-00 BRACKET 4BRACKET 4
-
2992012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3090480-12550-00 GROMMETGROMMET
-
3190480-18418-00 GROMMETGROMMET
-
323D8-21741-10-00 COVER, SIDE 4COVER, SIDE 4
-
3390387-06184-00 COLLARCOLLAR
-
3490111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3590464-15195-00 CLAMPCLAMP
-
363D8-2176E-10-00 PLATEPLATE
-
3790269-07077-00 RIVETRIVET
-
383D8-2172K-01-00 BRACKET 1BRACKET 1
-
393D8-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
4092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
413D8-2172L-00-00 BRACKET 2BRACKET 2
-
4292012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4390464-17008-00 CLAMPCLAMP
-
443D8-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4590480-13567-00 GROMMETGROMMET
-
4690119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
473D8-21875-00-00 CAPCAP
-
4890467-11019-00 CLIPCLIP
-
4926H-21828-00-00 ELBOWELBOW
-
5027D-21826-00-00 PIPE, BREATHERPIPE, BREATHER
-
5190467-08003-00 CLIPCLIP
-
5290445-09097-00 HOSE (L250)HOSE (L250)
-
5327D-24796-00-00 COVERCOVER
-
5427D-28100-00-00 TOOL KITTOOL KIT
-
553D8-28110-00-00 TOOL KIT, 2TOOL KIT, 2
