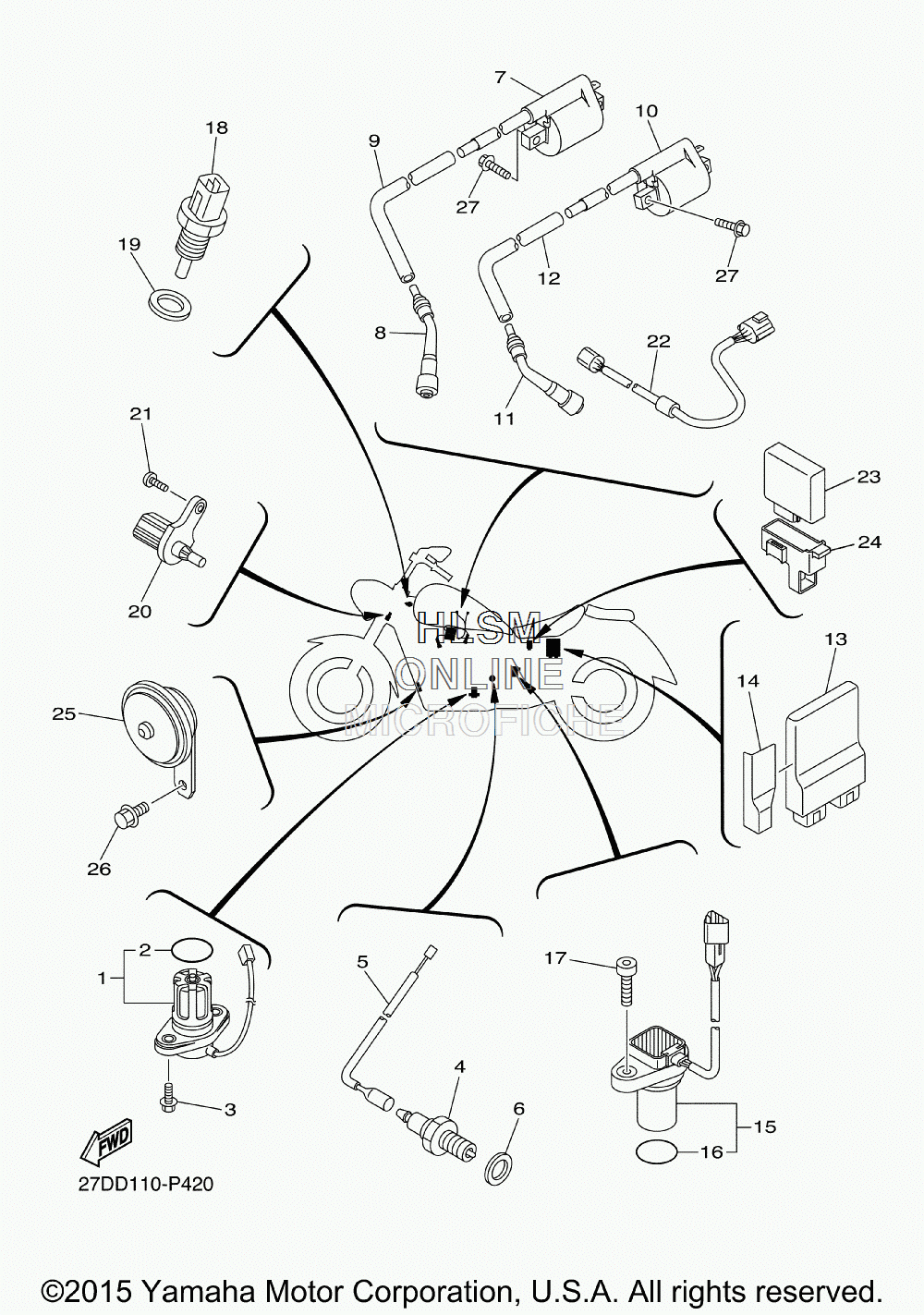

ELECTRICAL для Yamaha STRYKER (ORANGE) [XVS13CGO] - 2016 года выпуска
-
№АртикулНазвание
-
127D-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
25VY-8A8E0-00-00 ...O-RING...O-RING
-
395022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
43GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
53D8-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
690430-10148-00 GASKETGASKET
-
71B9-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
83D8-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
927D-82353-00-00 HOSEHOSE
-
101S4-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
113D8-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
1227D-82353-10-00 HOSEHOSE
-
1327D-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
143D8-2177M-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
153D8-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
164D9-81168-00-00 ...O-RING...O-RING
-
1791314-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
188CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1990201-12790-00 WASHER, PLATEWASHER, PLATE
-
205YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2198502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2227D-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
231US-83400-00-00 FLASHER CONT. UNIT ASSYFLASHER CONT. UNIT ASSY
-
241US-85546-00-00 BANDBAND
-
253D8-83371-00-00 HORNHORN
-
2690105-082A5-00 BOLT WASHER BASEDBOLT WASHER BASED
-
2790105-06127-00 BOLT, FLANGEBOLT, FLANGE
