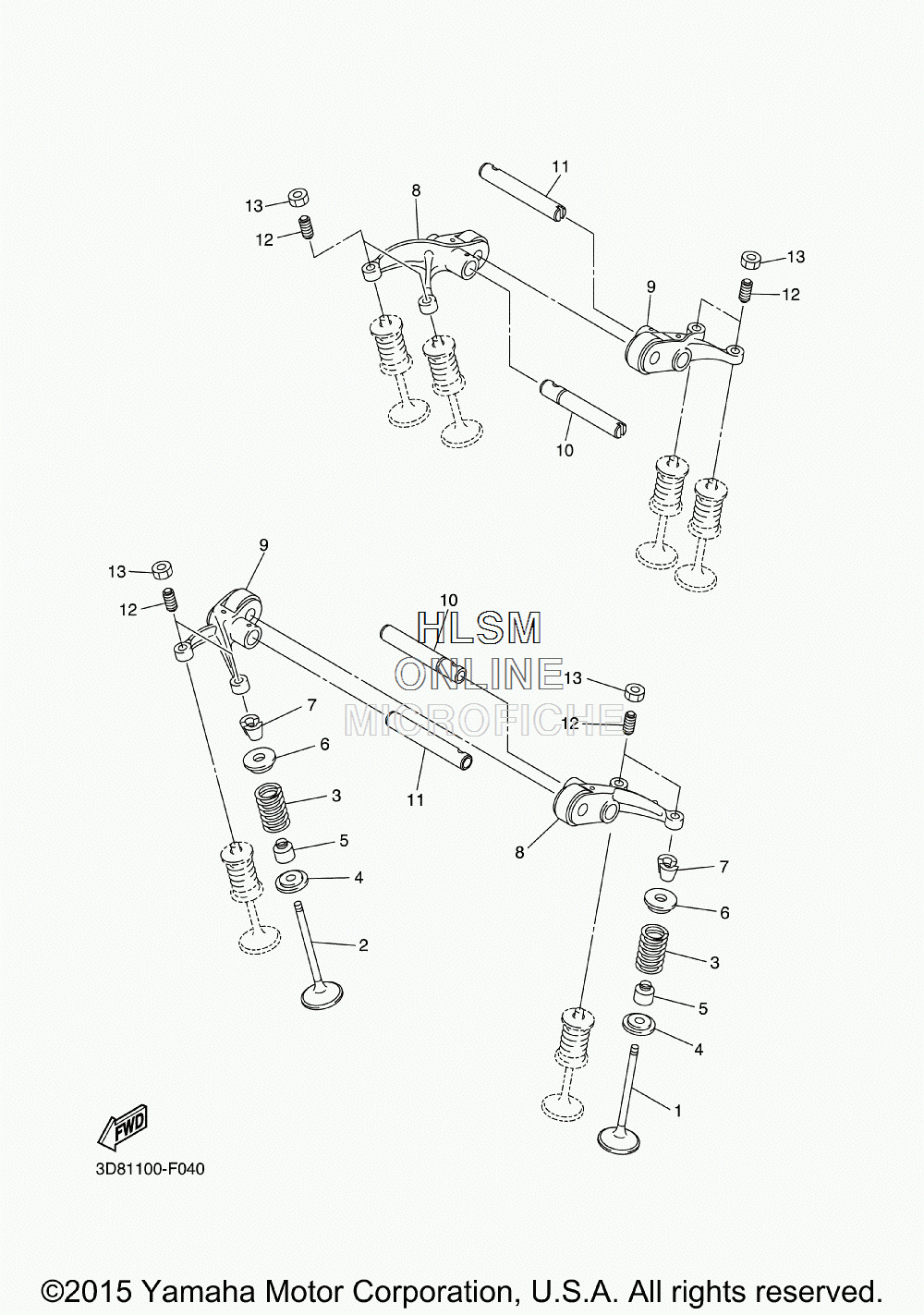

VALVE для Yamaha STRYKER (ORANGE) [XVS13CGO] - 2016 года выпуска
-
№АртикулНазвание
-
13D8-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
25VK-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
33D8-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
43YF-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
55H0-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
63YF-12117-01-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
74G0-12118-00-00 COTTER, VALVECOTTER, VALVE
-
83D8-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
93D8-12161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
103D8-12146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
113D8-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
125XT-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1390170-06128-00 NUTNUT
