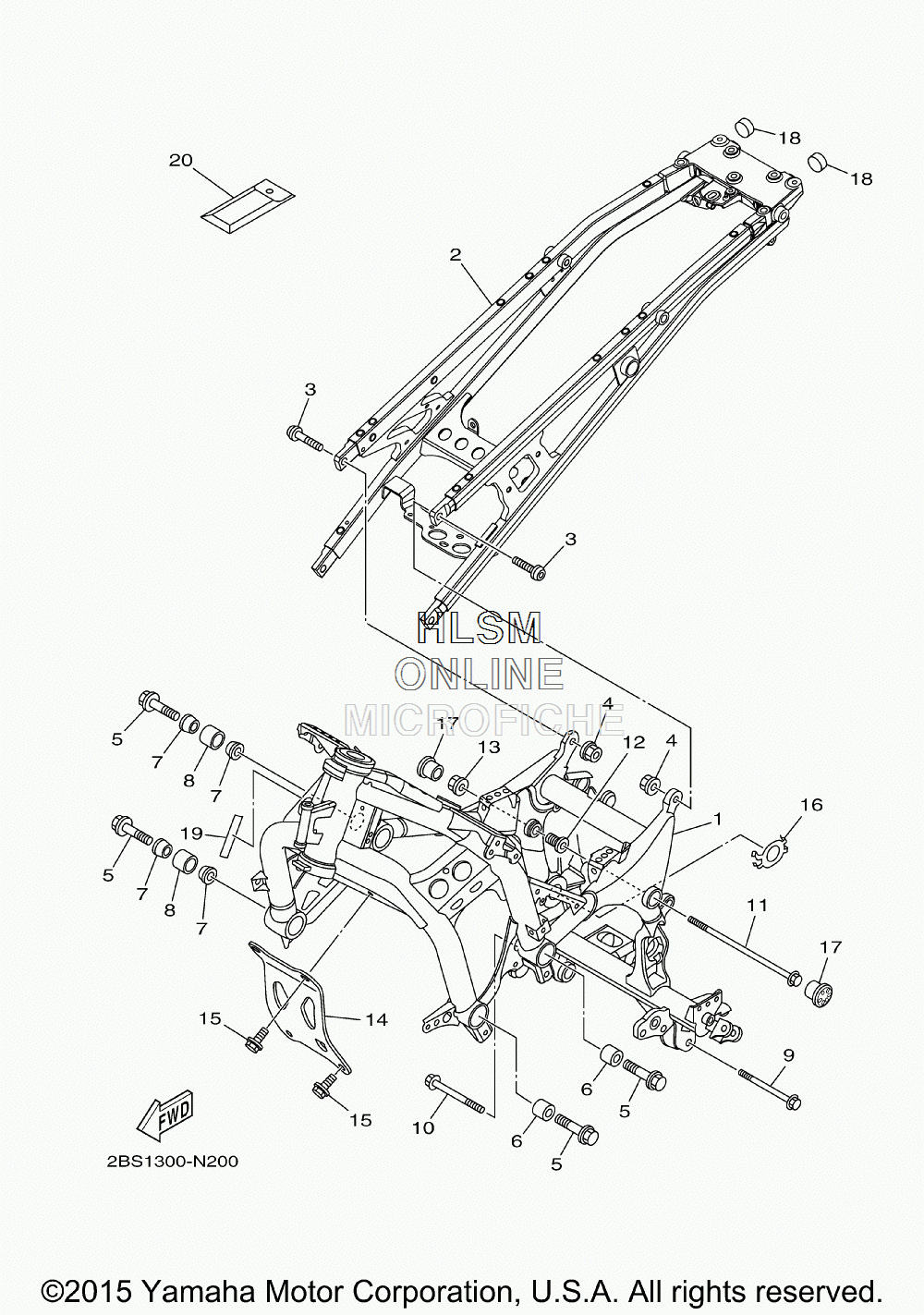

FRAME для Yamaha SUPER TENERE (BLACK) [XTZ12GB] - 2016 года выпуска
-
№АртикулНазвание
-
123P-21110-00-00 FRAME COMP.FRAME COMP.
-
22BS-21190-10-00 REAR FRAME COMP.REAR FRAME COMP.
-
390149-10003-00 SCREWSCREW
-
495602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
590105-12077-00 BOLT, FLANGEBOLT, FLANGE
-
623P-21116-00-00 COLLARCOLLAR
-
723P-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
823P-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
990105-10075-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-10175-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-10380-00 BOLT, FLANGEBOLT, FLANGE
-
1223P-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1390179-10028-00 NUTNUT
-
142BS-21318-00-00 STAY, ENGINE 4STAY, ENGINE 4
-
1595812-12025-00 BOLT, FLANGEBOLT, FLANGE
-
1623P-2191B-00-00 PLATE 1PLATE 1
-
172BS-2111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
183YX-2143A-00-00 CAPCAP
-
193HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2023P-28100-00-00 TOOL KITTOOL KIT
