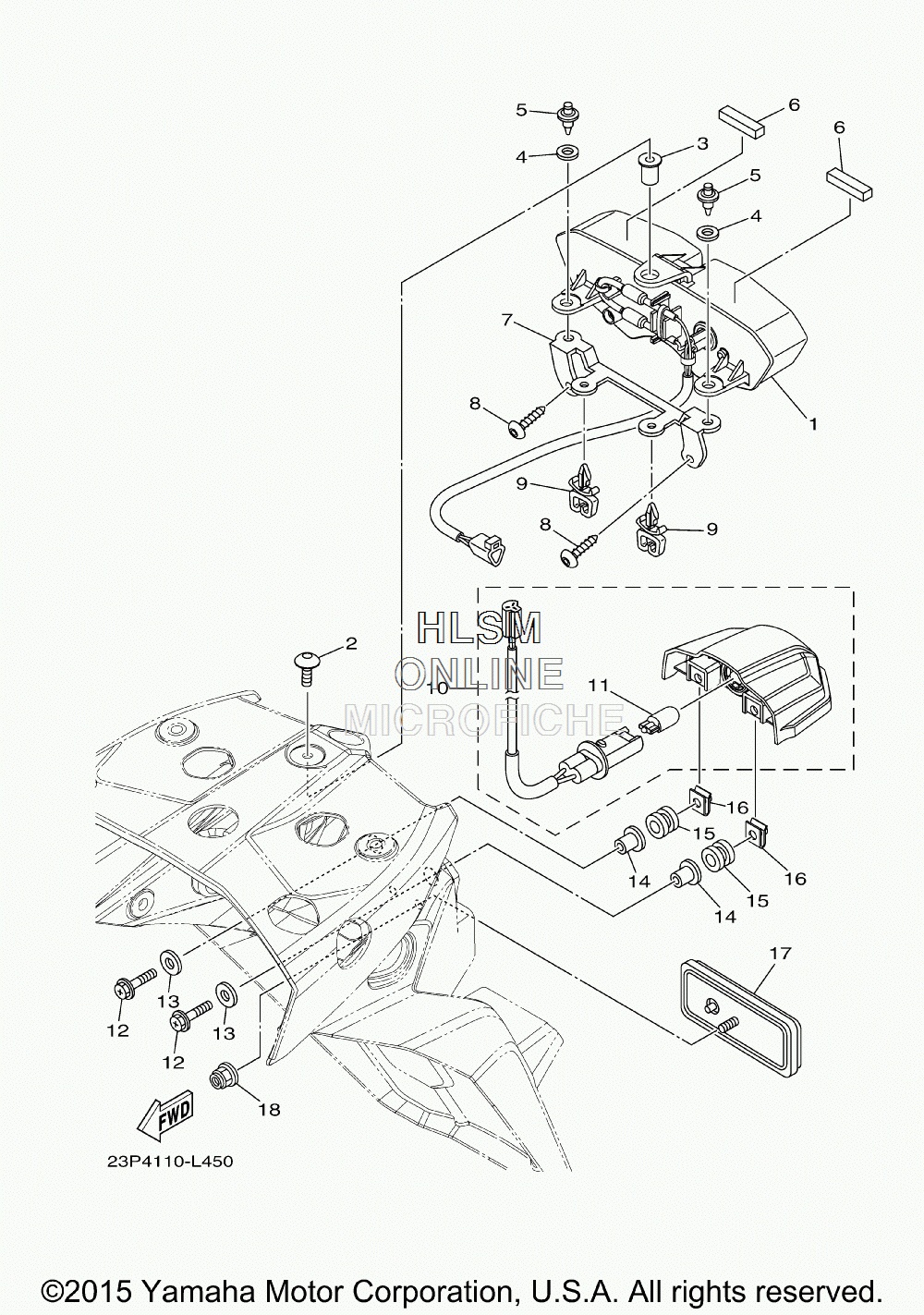

TAILLIGHT для Yamaha SUPER TENERE (BLACK) [XTZ12GB] - 2016 года выпуска
-
№АртикулНазвание
-
123P-84710-10-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
290111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
390179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
45SL-84753-00-00 DAMPERDAMPER
-
590269-06001-00 RIVETRIVET
-
65PS-28217-00-00 DAMPER 1DAMPER 1
-
723P-84519-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
990464-11121-00 CLAMPCLAMP
-
1023P-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
115DM-84347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
1290105-05005-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-054K4-00 WASHER, PLATEWASHER, PLATE
-
1490387-05052-00 COLLARCOLLAR
-
1590480-11009-00 GROMMETGROMMET
-
1690183-05076-00 NUT, SPRINGNUT, SPRING
-
173Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1895604-05200-00 NUT, U FLANGENUT, U FLANGE
