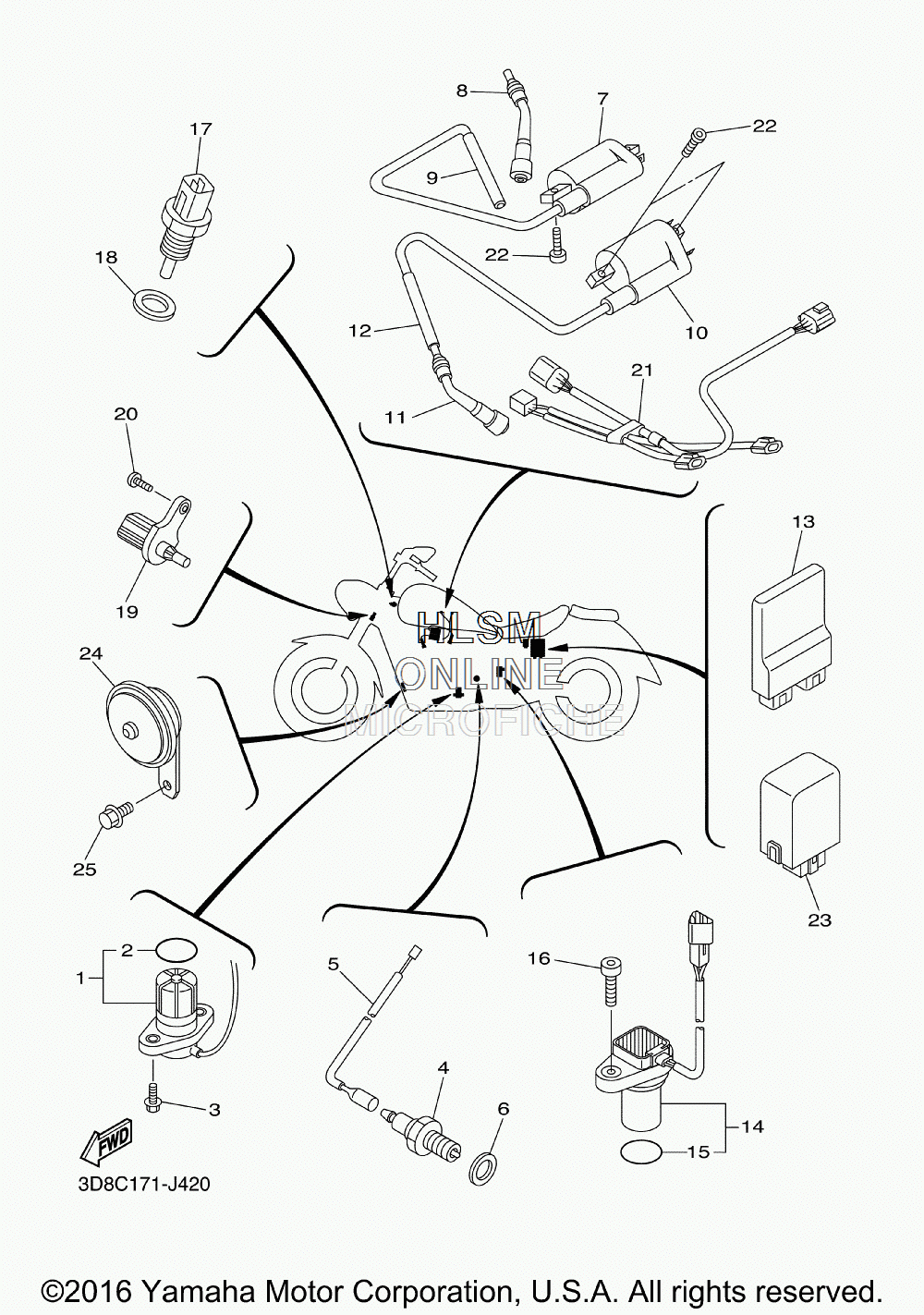

ELECTRICAL для Yamaha V STAR 1300 TOURER [XVS13CTGR] - 2016 года выпуска
-
№АртикулНазвание
-
13D8-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
25VY-8A8E0-00-00 ...O-RING...O-RING
-
395022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
43GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
53D8-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
690430-10148-00 GASKETGASKET
-
73D8-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
83D8-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
95RU-82353-00-00 HOSEHOSE
-
103D8-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
113D8-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
125RU-82353-00-00 HOSEHOSE
-
133D8-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
143D8-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
154D9-81168-00-00 ...O-RING...O-RING
-
1691314-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
178CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1890201-12790-00 WASHER, PLATEWASHER, PLATE
-
195YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2098502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
213D8-82509-20-00 WIRE, SUB LEADWIRE, SUB LEAD
-
2291380-06016-00 BOLTBOLT
-
233D8-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
243D8-83371-00-00 HORNHORN
-
2590105-082A5-00 BOLT, FLANGEBOLT, FLANGE
