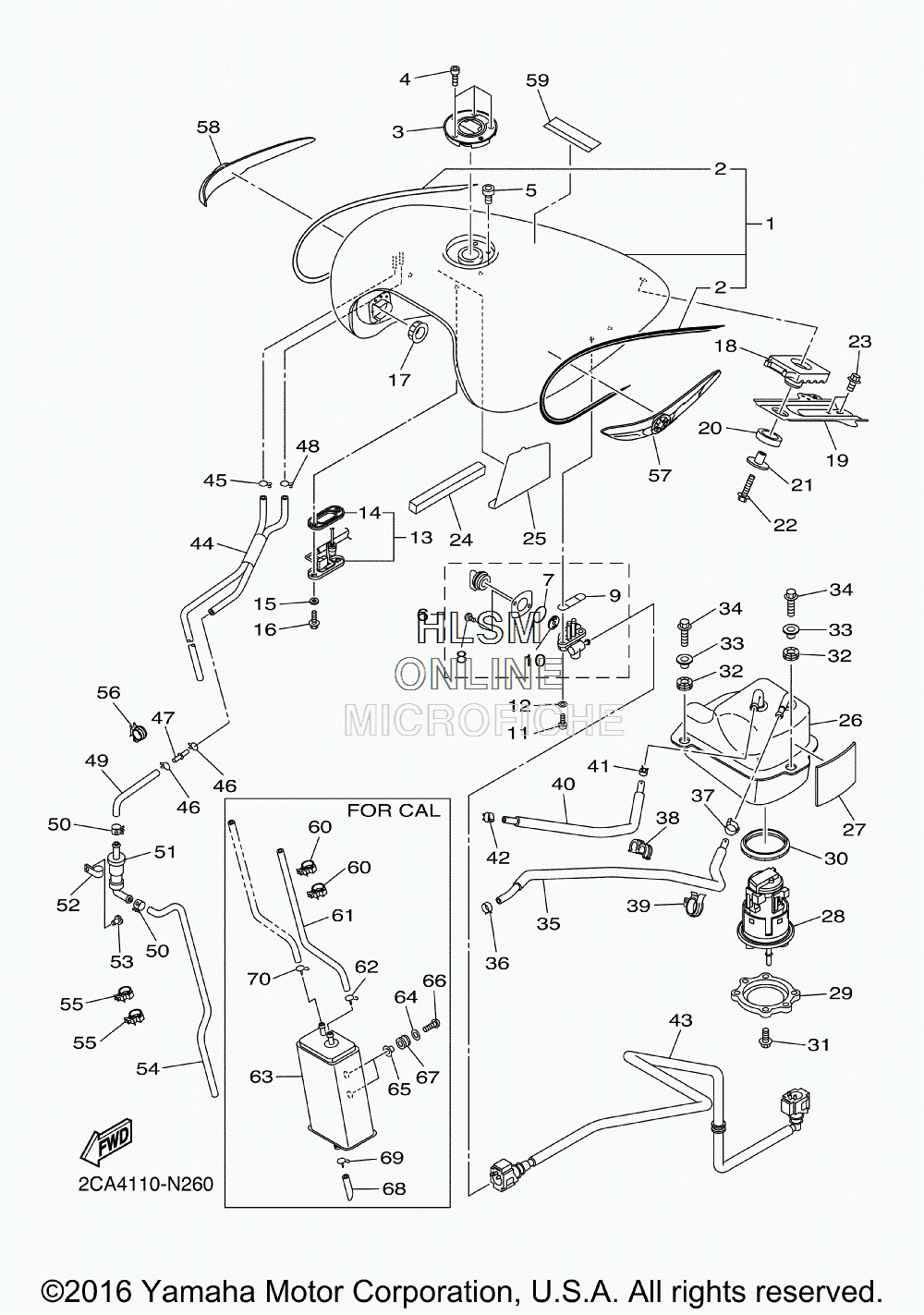

FUEL TANK для Yamaha V STAR 1300 TOURER [XVS13CTGR] - 2016 года выпуска
-
№АртикулНазвание
-
13D8-Y2410-00-W7 FUEL TANK COMP. (DRMD)FUEL TANK COMP. (DRMD)
-
25S6-24240-40-00 ...GRAPHIC SET...GRAPHIC SET
-
33D8-24602-10-00 CAP ASSYCAP ASSY
-
490110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
591312-05010-00 BOLTBOLT
-
64JT-24500-20-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
73AJ-24534-10-00 ...SEAL, COCK...SEAL, COCK
-
898507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
94X8-24512-10-00 ...GASKET...GASKET
-
103AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1190149-06108-00 SCREWSCREW
-
1290202-05193-00 WASHER, PLATEWASHER, PLATE
-
133D8-85752-10-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
143D8-85753-00-00 ...GASKET, SENDER UNIT...GASKET, SENDER UNIT
-
1590202-05193-00 WASHER, PLATEWASHER, PLATE
-
1695812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
172YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
181D7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
193D8-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
204TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
2190387-06177-00 COLLARCOLLAR
-
2295812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2395812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
243XV-28217-00-00 DAMPER 1DAMPER 1
-
253D8-2476V-00-00 PROTECTOR, 2PROTECTOR, 2
-
263D8-244A0-00-00 PUMP CASE COMP.PUMP CASE COMP.
-
273D8-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
283D8-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
293D8-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
3019B-24486-01-00 O-RINGO-RING
-
3190110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
323D8-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
3390387-062U9-00 COLLARCOLLAR
-
3495812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
353D8-24311-11-00 PIPE, FUEL 1PIPE, FUEL 1
-
3690467-12004-00 CLIPCLIP
-
3790467-130A1-00 CLIPCLIP
-
3890464-19001-00 CLAMPCLAMP
-
3990464-20191-00 CLAMPCLAMP
-
403D8-24312-11-00 PIPE 2PIPE 2
-
4190467-160A2-00 CLIPCLIP
-
425PX-2411M-00-00 CLIPCLIP
-
433D8-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
443D8-2318J-01-00 HOSE ASSYHOSE ASSY
-
4590467-09103-00 CLIPCLIP
-
4690467-09103-00 CLIPCLIP
-
474XY-14568-00-00 JOINTJOINT
-
4890467-09103-00 CLIPCLIP
-
493D8-24324-00-00 PIPE 13PIPE 13
-
5090467-09001-00 CLIPCLIP
-
515RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
5290464-15014-00 CLAMPCLAMP
-
5390269-05005-00 RIVETRIVET
-
5490445-10040-00 HOSEHOSE
-
5590464-20191-00 CLAMPCLAMP
-
5690464-15192-00 CLAMPCLAMP
-
573D8-2416B-00-00 EMBLEMEMBLEM
-
583D8-2417B-00-00 EMBLEMEMBLEM
-
591TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
6090464-25217-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
613D8-2486A-01-00 PIPE 1 (CALIF ONLY)PIPE 1 (CALIF ONLY)
-
6290467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
635PX-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
6490201-06023-00 WASHER, PLATE (CALIF ONLY)WASHER, PLATE (CALIF ONLY)
-
6590387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
6690111-06067-00 BOLT,HEX. SOCKET BUTTON (CALIF ONLY)BOLT,HEX. SOCKET BUTTON (CALIF ONLY)
-
6790480-13163-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
683D8-24325-00-00 PIPE 14 (CALIF ONLY)PIPE 14 (CALIF ONLY)
-
6990467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
7090467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
