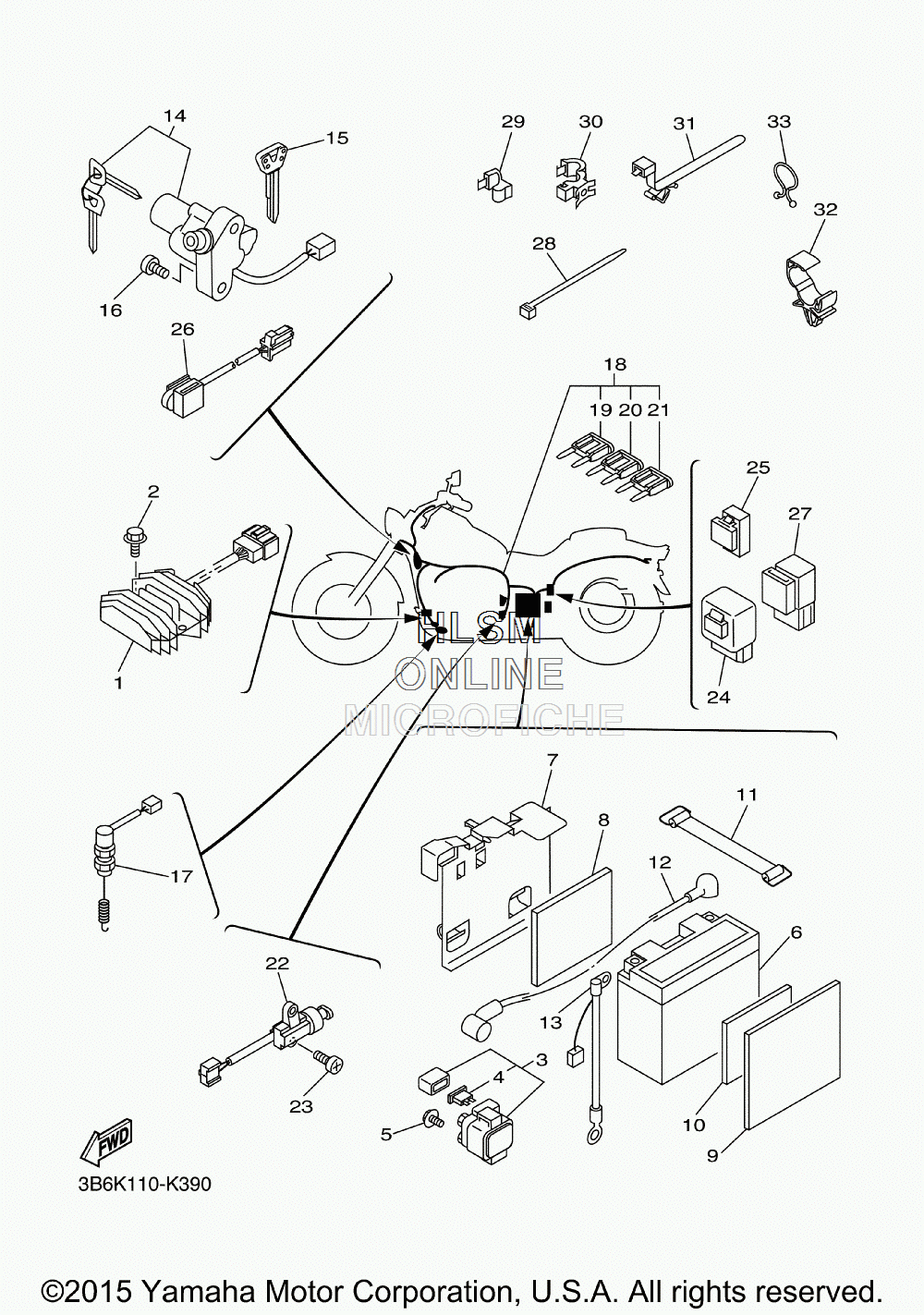

ELECTRICAL для Yamaha V STAR 650 CUSTOM [XVS65GW] - 2016 года выпуска
-
№АртикулНазвание
-
15KP-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
295804-06020-00 BOLT, FLANGEBOLT, FLANGE
-
34BH-81940-02-00 STARTER RELAY ASSY (RC19-005)STARTER RELAY ASSY (RC19-005)
-
41AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
595027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
64TX-82100-02-00 BATTERY ASSY (GS GT12B-4)BATTERY ASSY (GS GT12B-4)
-
75BN-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
829N-14425-00-00 DAMPER 1DAMPER 1
-
94VR-2176E-00-00 PLATEPLATE
-
1029N-14425-00-00 DAMPER 1DAMPER 1
-
11133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
125BN-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
135BN-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
144TR-82501-01-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
154BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
1690149-08002-00 SCREWSCREW
-
175KP-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
185SC-82590-70-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
195JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
205JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
215JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
2234B-82566-B0-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2390157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
245KS-81950-00-00 RELAY ASSY (5KS-00)RELAY ASSY (5KS-00)
-
251UY-81950-92-00 RELAY ASSY (1UY-92)RELAY ASSY (1UY-92)
-
265FU-82560-50-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
2729U-81950-93-00 RELAY ASSY (ACA12115-1)RELAY ASSY (ACA12115-1)
-
281UA-82591-00-00 BANDBAND
-
2990464-05188-00 CLAMPCLAMP
-
3090464-20191-00 CLAMPCLAMP
-
3190464-20213-00 CLAMPCLAMP
-
325UY-81444-00-00 CLAMP, LEAD 2CLAMP, LEAD 2
-
3390464-23041-00 CLAMPCLAMP
