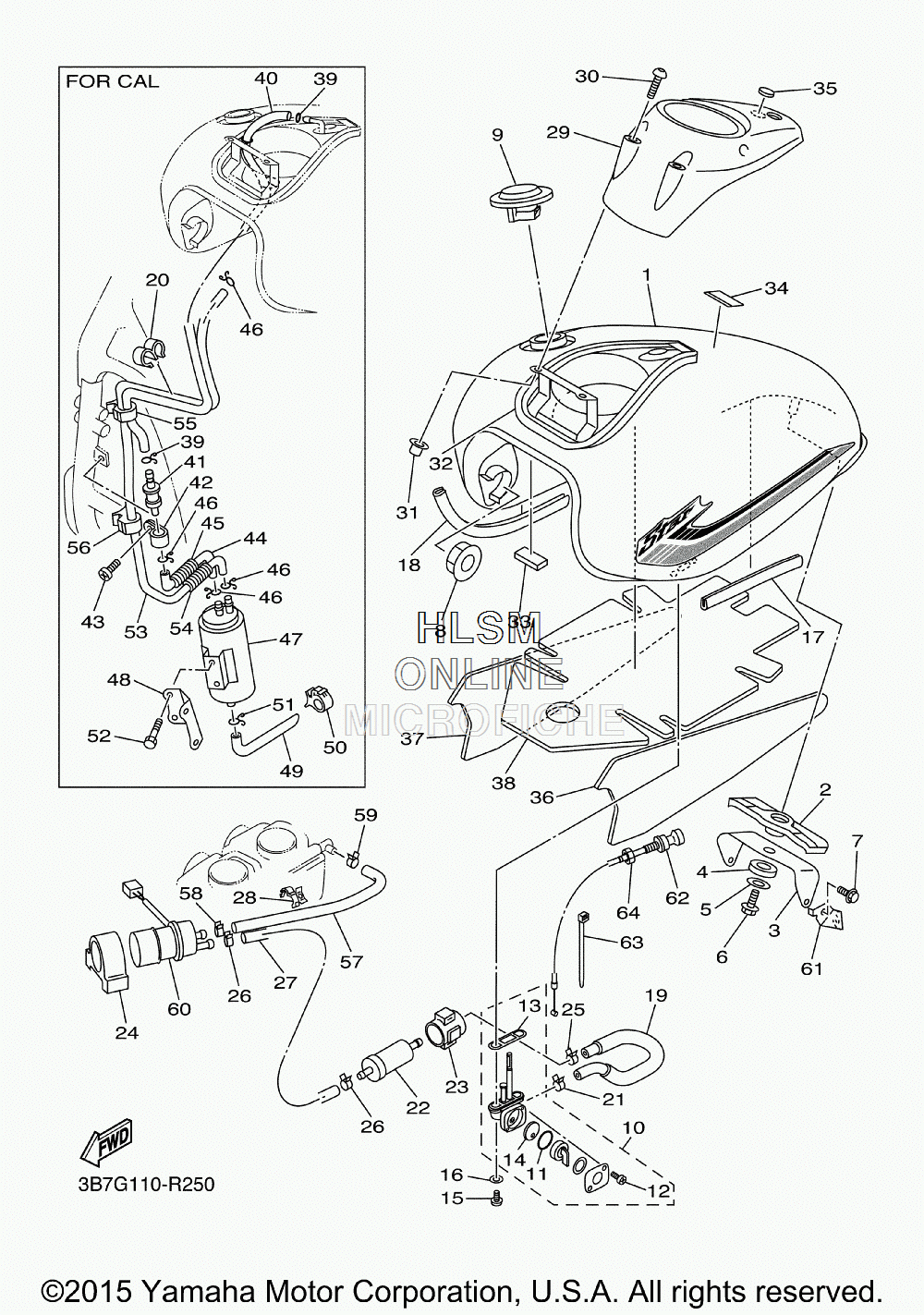

FUEL TANK для Yamaha V STAR 650 CUSTOM [XVS65GW] - 2016 года выпуска
-
№АртикулНазвание
-
15SC-Y2410-U0-06 FUEL TANK COMP. (BWP1) (EXCEPT CALIF)FUEL TANK COMP. (BWP1) (EXCEPT CALIF)
-
15SC-Y2410-T0-08 FUEL TANK COMP. (BWP1) (CALIF ONLY)FUEL TANK COMP. (BWP1) (CALIF ONLY)
-
24TR-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
34TR-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
44TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
590209-06011-00 WASHERWASHER
-
692017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
795817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
84H7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
94NK-24602-20-00 CAP ASSY (CALIF ONLY)CAP ASSY (CALIF ONLY)
-
95BN-24602-10-00 CAP ASSY (EXCEPT CALIF)CAP ASSY (EXCEPT CALIF)
-
1021V-24500-20-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
113AJ-24534-10-00 ...SEAL, COCK...SEAL, COCK
-
1298507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
134X8-24512-10-00 ...GASKET...GASKET
-
143AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1590149-06011-00 SCREWSCREW
-
1690202-05193-00 WASHER, PLATEWASHER, PLATE
-
171FK-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
184BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
194TR-24313-10-00 PIPE 3PIPE 3
-
2090464-09M31-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
2190467-10038-00 CLIPCLIP
-
221FK-24560-10-00 FILTER ASSYFILTER ASSY
-
231FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
244EB-24398-00-00 BAND 1BAND 1
-
2590467-11032-00 CLIPCLIP
-
2690467-12053-00 CLIPCLIP
-
274TR-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
2890464-15192-00 CLAMPCLAMP
-
294TR-2171A-00-00 COVER, TOPCOVER, TOP
-
3090149-05299-00 SCREWSCREW
-
3190179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
324TR-2414G-00-00 SEALSEAL
-
333XV-21717-00-00 DAMPERDAMPER
-
341TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
354TR-2413B-00-00 EMBLEMEMBLEM
-
365SC-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
375SC-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
385SC-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
3990467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
405BN-24312-10-00 PIPE 2 (CALIF ONLY)PIPE 2 (CALIF ONLY)
-
415PX-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
4290464-15014-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4390154-05064-00 SCREW, BINDING (CALIF ONLY)SCREW, BINDING (CALIF ONLY)
-
445BN-24314-10-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
455BN-24327-00-00 PROTECTOR, PIPE (CALIF ONLY)PROTECTOR, PIPE (CALIF ONLY)
-
4690467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
472JU-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
485BN-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
495BN-24315-10-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
5090464-15192-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
5190467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5295807-06010-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
535BN-24313-10-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
545BN-24327-00-00 PROTECTOR, PIPE (CALIF ONLY)PROTECTOR, PIPE (CALIF ONLY)
-
5590464-20191-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
5690464-15192-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
574TR-14294-10-00 HOSEHOSE
-
5890467-12053-00 CLIPCLIP
-
5990467-12124-00 CLIPCLIP
-
605KS-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
614TR-2637G-00-00 HOLDER, WIREHOLDER, WIRE
-
624TR-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
631UA-82591-00-00 BANDBAND
-
641VJ-26333-00-00 NUTNUT
