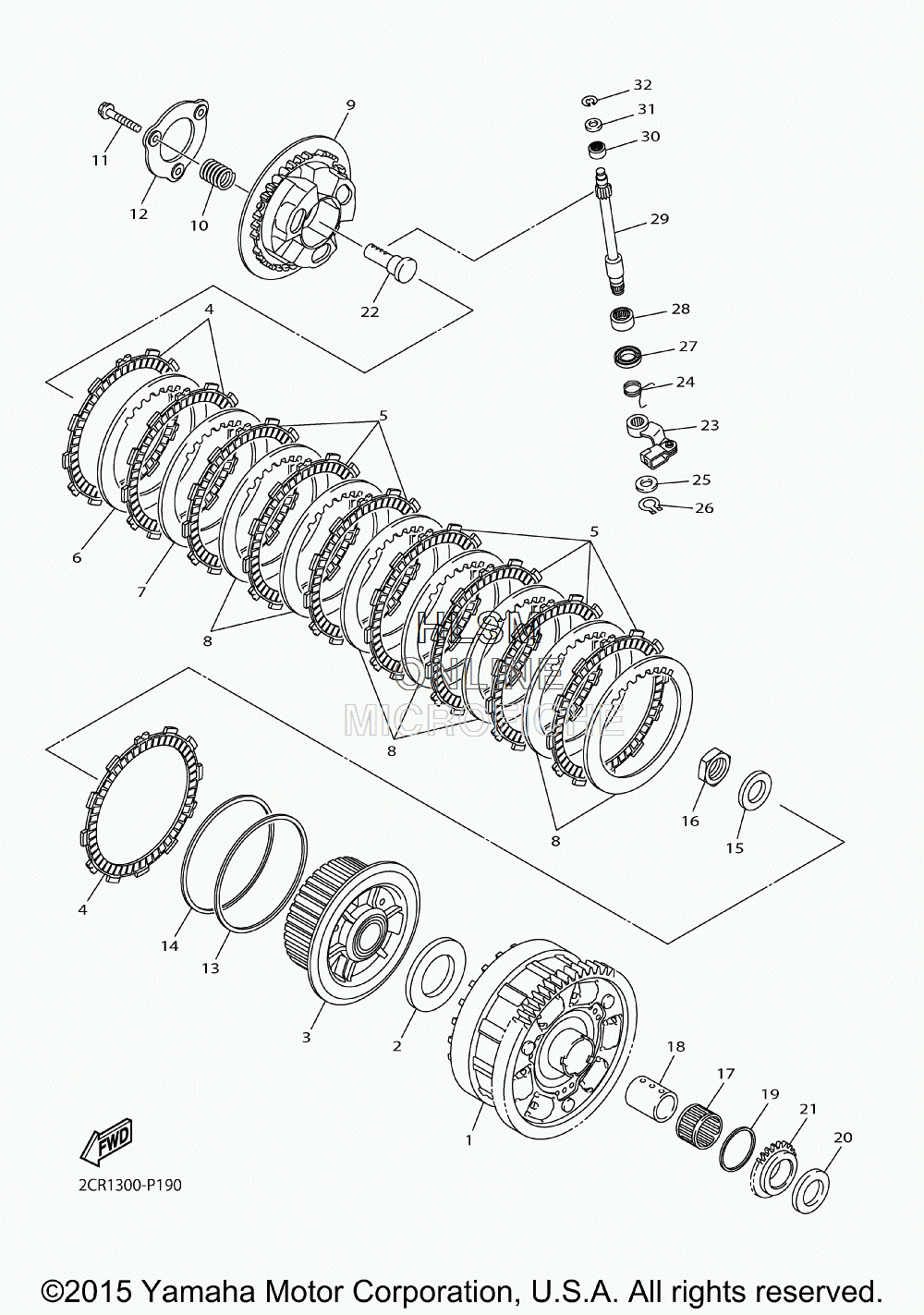

CLUTCH для Yamaha YZF-R1 60TH ANNIVERSARY [YZFR1GY] - 2016 года выпуска
-
№АртикулНазвание
-
12CR-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
2363-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
32CR-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
42CR-16330-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
52CR-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
62CR-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
72CR-16325-10-00 PLATE, CLUTCH 2 (T 2.0)PLATE, CLUTCH 2 (T 2.0)
-
72CR-16325-20-00 PLATE, CLUTCH 2 (T 2.6)PLATE, CLUTCH 2 (T 2.6)
-
72CR-16325-00-00 PLATE, CLUTCH 2 (T 2.3)PLATE, CLUTCH 2 (T 2.3)
-
82CR-16325-00-00 PLATE, CLUTCH 2 (T 2.3)PLATE, CLUTCH 2 (T 2.3)
-
92CR-16350-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
102CR-16173-00-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
112CR-16337-00-00 SCREW, SPRINGSCREW, SPRING
-
122CR-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
132CR-16384-10-00 PLATE, SEATPLATE, SEAT
-
142CR-16383-00-00 SPRING, CUSHIONSPRING, CUSHION
-
1590208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1690179-20007-00 NUTNUT
-
1793310-23168-00 BEARINGBEARING
-
1814B-16181-00-00 SPACER 1SPACER 1
-
1990201-44008-00 WASHER, PLATEWASHER, PLATE
-
202CR-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
2114B-13354-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
221WS-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
232CR-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2490508-16041-00 SPRING, TORSIONSPRING, TORSION
-
2590201-10029-00 WASHER, PLATEWASHER, PLATE
-
2699009-10400-00 CIRCLIPCIRCLIP
-
2793102-15212-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
2893315-21570-00 BEARINGBEARING
-
295VY-16382-10-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
3093317-11096-00 BEARINGBEARING
-
3192907-08600-00 WASHER, PLATEWASHER, PLATE
-
3299001-07600-00 CIRCLIPCIRCLIP
