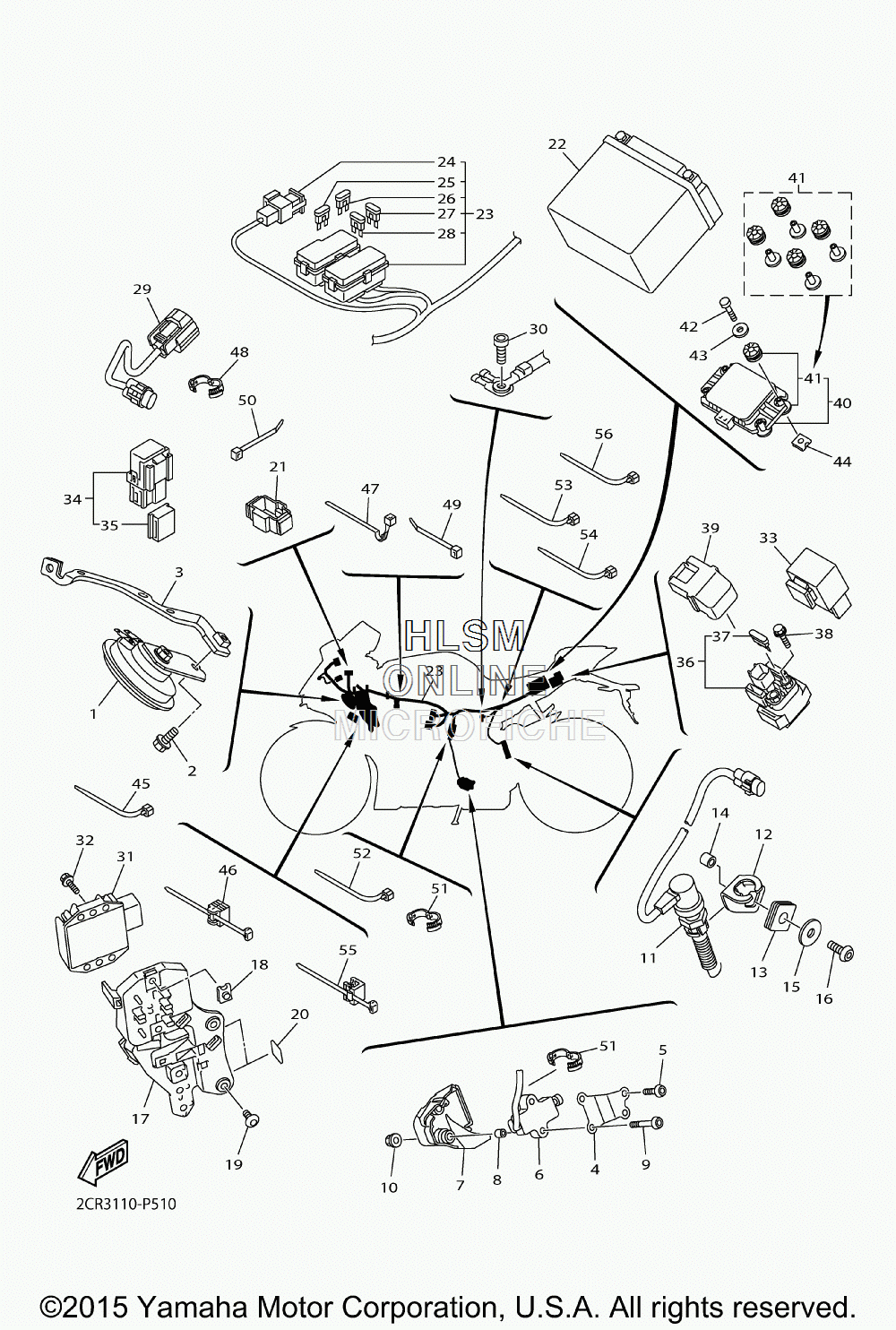

ELECTRICAL 2 для Yamaha YZF-R1 60TH ANNIVERSARY [YZFR1GY] - 2016 года выпуска
-
№АртикулНазвание
-
12CR-83371-00-00 HORNHORN
-
295812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
32CR-23377-00-00 BRACKET, HORNBRACKET, HORN
-
414B-27961-00-00 BRACKET, SENSOR 1BRACKET, SENSOR 1
-
592012-05016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
62CR-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
72CR-27406-00-00 COVER ASSYCOVER ASSY
-
890387-05025-00 COLLARCOLLAR
-
992012-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1095602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
112CR-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
122CR-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
1390480-12607-00 GROMMETGROMMET
-
1490387-06023-00 COLLARCOLLAR
-
1590201-06380-00 WASHER PLAINWASHER PLAIN
-
1692017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
172CR-2836H-00-00 BRACKET 5BRACKET 5
-
1890183-06069-00 NUT, SPRINGNUT, SPRING
-
1990111-06095-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2013S-21649-00-00 DAMPERDAMPER
-
211RC-82544-00-00 CLAMPCLAMP
-
225TJ-82100-01-00 BATTERY ASSY (YTZ7S(F))BATTERY ASSY (YTZ7S(F))
-
232CR-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
245JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
255JJ-82151-80-00 ...FUSE (2A-BL)...FUSE (2A-BL)
-
265JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
275JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
285JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
292CR-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
3091312-06012-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
312CR-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
3290105-06148-00 BOLT, FLANGEBOLT, FLANGE
-
335VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
341ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
355JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
362CR-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
371AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3895022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
395SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
402CR-8593A-00-00 INERTIAL MEASURE, UNIT ASSYINERTIAL MEASURE, UNIT ASSY
-
412CR-W8A8D-00-00 ...GROMMET AND COLLAR SET...GROMMET AND COLLAR SET
-
4291312-04025-00 BOLTBOLT
-
432CR-81162-00-00 WASHER, PLAINWASHER, PLAIN
-
4490183-04039-00 NUT, SPRINGNUT, SPRING
-
4590464-12045-00 CLAMPCLAMP
-
4690464-45003-00 CLAMPCLAMP
-
4790464-07M40-00 CLAMPCLAMP
-
4890464-16003-00 CLAMPCLAMP
-
491UA-82591-00-00 BANDBAND
-
501UA-82591-00-00 BANDBAND
-
5190464-13227-00 CLAMPCLAMP
-
5290464-13073-00 CLAMPCLAMP
-
5390464-13077-00 CLAMPCLAMP
-
5490464-13077-00 CLAMPCLAMP
-
5590464-45006-00 CLAMPCLAMP
-
5690464-13077-00 CLAMPCLAMP
