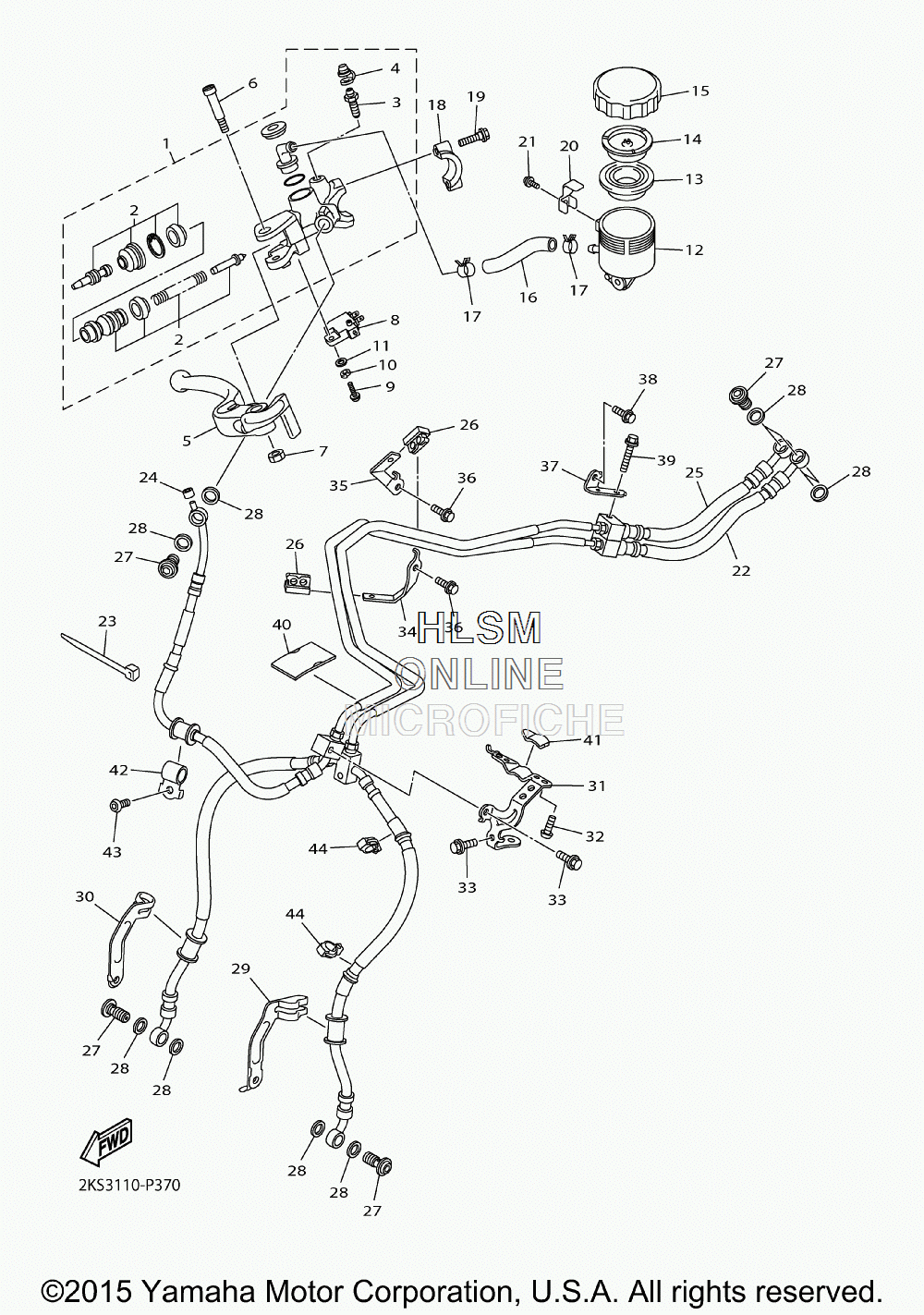

BRAKE - FRONT MASTER CYLINDER для Yamaha YZF-R1 [YZFR1GGY] - 2016 года выпуска
-
№АртикулНазвание
-
12CR-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
22CR-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
31UY-25824-51-00 ...SCREW, BLEED...SCREW, BLEED
-
41UY-25825-51-00 ...CAP...CAP
-
52CR-83922-00-00 LEVER 2LEVER 2
-
62CR-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
795607-06100-00 NUT, UNUT, U
-
82CR-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
998502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1092902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1192902-04600-00 WASHER, PLATEWASHER, PLATE
-
122CR-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
133FV-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
142CR-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
153GM-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
162CR-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1790467-12085-00 CLIPCLIP
-
182CR-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
195EB-26332-00-00 BOLTBOLT
-
202CR-2589G-00-00 HOLDERHOLDER
-
213GM-2589H-00-00 SCREWSCREW
-
222CR-2584A-01-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
233MA-82591-00-00 BANDBAND
-
242CR-26259-01-00 COLLARCOLLAR
-
252CR-2584B-00-00 HOSE, BRAKEHOSE, BRAKE
-
2690464-07014-00 CLAMPCLAMP
-
2790401-10172-00 BOLT, UNIONBOLT, UNION
-
2890430-10005-00 GASKETGASKET
-
292CR-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
302CR-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
312CR-2612E-00-00 BRACKETBRACKET
-
3292017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3395027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
342CR-2612K-00-00 BRACKET 2BRACKET 2
-
352CR-2612L-00-00 BRACKET 3BRACKET 3
-
3695022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
372CR-2612M-00-00 BRACKET 4BRACKET 4
-
3895022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3995022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
403YL-12232-00-00 DAMPERDAMPER
-
412CR-2622F-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
4290461-10132-00 CLAMPCLAMP
-
4392012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4490464-12013-00 CLAMPCLAMP
