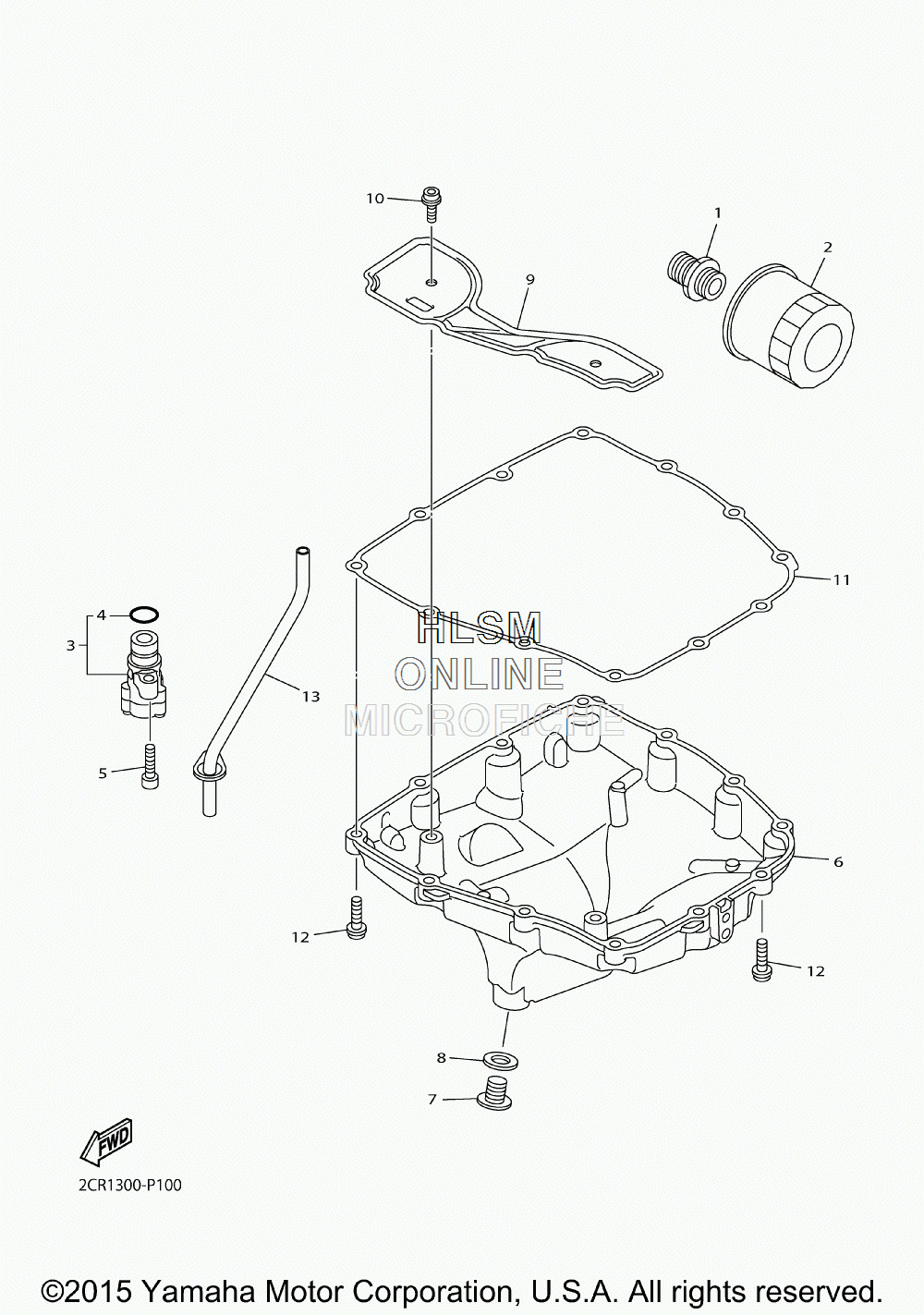

OIL CLEANER для Yamaha YZF-R1 [YZFR1GGY] - 2016 года выпуска
-
№АртикулНазвание
-
190401-20008-00 BOLT, UNIONBOLT, UNION
-
25GH-13440-50-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
32CR-13490-00-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
493210-15566-00 ...O-RING...O-RING
-
590110-06169-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
62CR-13417-00-00 COVER, STRAINERCOVER, STRAINER
-
790340-14019-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
890430-14005-00 GASKETGASKET
-
92CR-13337-00-00 PLATE, BAFFLE LOWERPLATE, BAFFLE LOWER
-
1090110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
112CR-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
1290109-06300-00 BOLTBOLT
-
132CR-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
