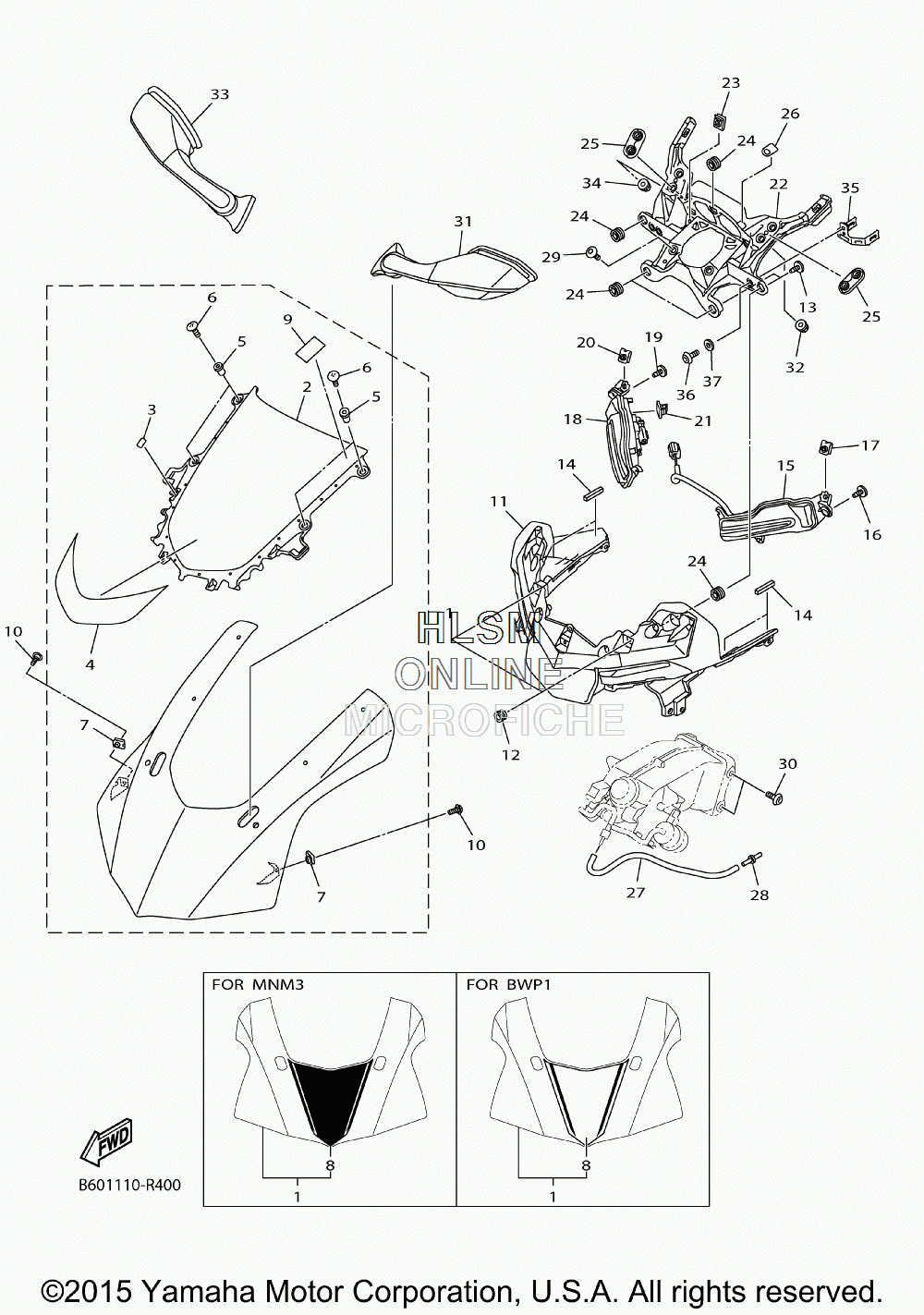

COWLING для Yamaha YZF-R1S [YZFR1SGGY] - 2016 года выпуска
-
№АртикулНазвание
-
12CR-Y283G-A0-P3 BODY, FRONT UPPER 1 (FOR MNM3)BODY, FRONT UPPER 1 (FOR MNM3)
-
12CR-Y283G-B0-P4 BODY, FRONT UPPER 1 (FOR BWP1)BODY, FRONT UPPER 1 (FOR BWP1)
-
22CR-28381-10-00 ...WINDSHIELD...WINDSHIELD
-
31S4-2476U-00-00 ...PROTECTOR 1...PROTECTOR 1
-
42CR-2832P-00-00 ...GRAPHIC, 18...GRAPHIC, 18
-
590179-05523-00 ...NUT SPEC'L SHAPE...NUT SPEC'L SHAPE
-
690150-05023-00 ...SCREW, ROUND HEAD...SCREW, ROUND HEAD
-
790183-05076-00 ...NUT, SPRING...NUT, SPRING
-
8B60-2832D-10-00 ......GRAPHIC 17 (FOR BWP1)......GRAPHIC 17 (FOR BWP1)
-
8B60-2832D-00-00 ......GRAPHIC 17 (FOR MNM3)......GRAPHIC 17 (FOR MNM3)
-
94B5-2815K-00-00 ...LABEL, NOTICE WINDSHIELD 1...LABEL, NOTICE WINDSHIELD 1
-
1090111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
112CR-2835H-00-00 BODY, FRONT UPPER 2BODY, FRONT UPPER 2
-
1290480-10003-00 GROMMETGROMMET
-
1390164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
142C0-28247-00-00 DAMPER 4DAMPER 4
-
152CR-84301-00-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
1697702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
1790183-05076-00 NUT, SPRINGNUT, SPRING
-
182CR-84302-00-00 PILOT LIGHT ASSY 2PILOT LIGHT ASSY 2
-
1997702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
2090183-05076-00 NUT, SPRINGNUT, SPRING
-
2190464-25160-00 CLAMPCLAMP
-
222CR-28356-00-00 STAY 1STAY 1
-
2390183-060A1-00 NUT, SPRINGNUT, SPRING
-
244XV-83513-00-00 DAMPERDAMPER
-
254C8-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
262CR-22873-00-00 SEAL 1SEAL 1
-
2790445-086J3-00 HOSE (L320)HOSE (L320)
-
285PS-14568-00-00 JOINTJOINT
-
2990111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3090111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
312CR-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
3290176-06055-00 NUT, CROWNNUT, CROWN
-
332CR-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
3490176-06055-00 NUT, CROWNNUT, CROWN
-
352CR-2836J-00-00 BRACKET 6BRACKET 6
-
3692012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3790387-06184-00 COLLARCOLLAR
