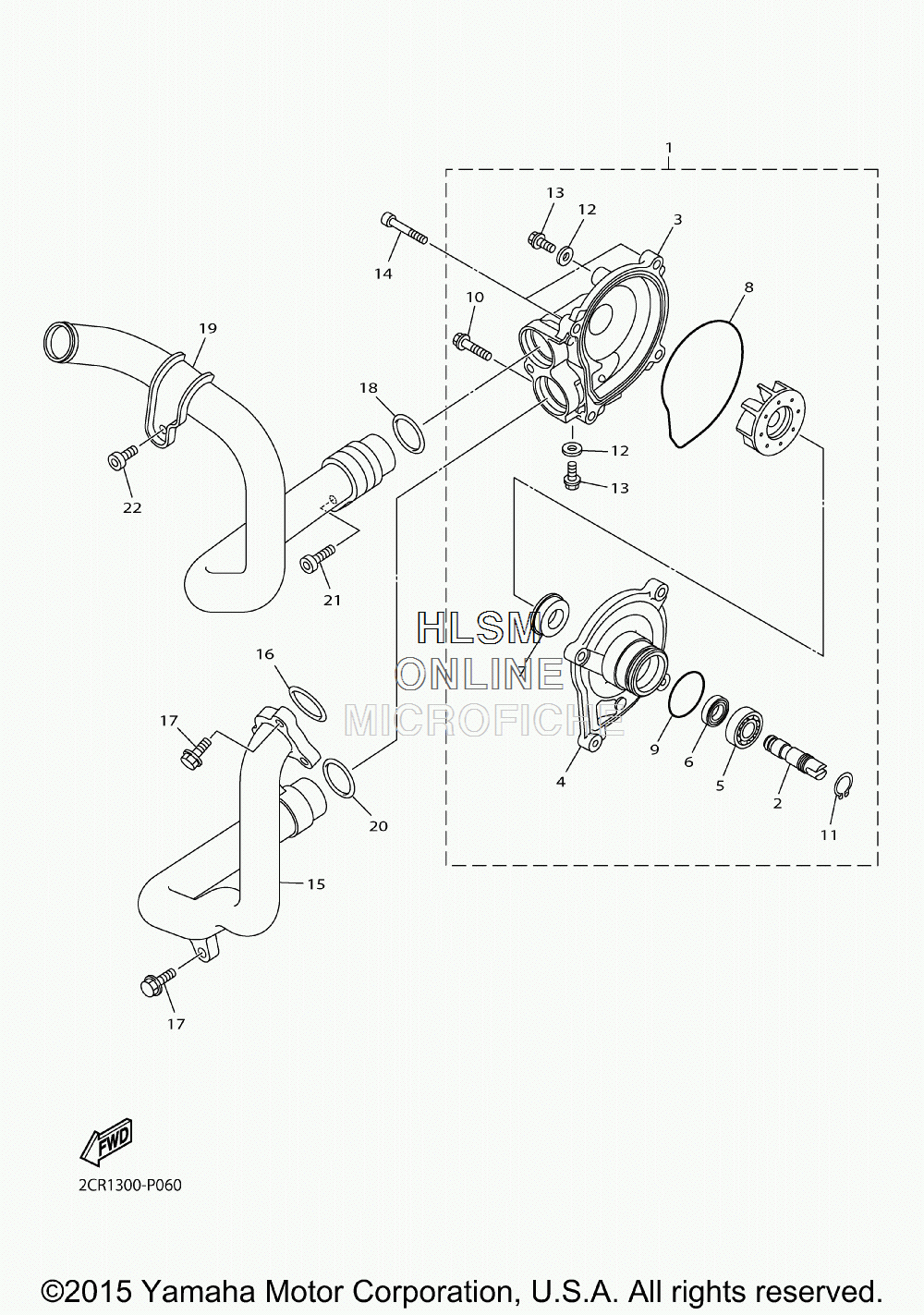

WATER PUMP для Yamaha YZF-R1S [YZFR1SGGY] - 2016 года выпуска
-
№АртикулНазвание
-
12CR-12420-02-00 WATER PUMP ASSYWATER PUMP ASSY
-
22CR-12450-01-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
32CR-12422-01-00 ...COVER, HOUSING...COVER, HOUSING
-
42CR-12421-02-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
593306-00106-00 ...BEARING...BEARING
-
62CR-13338-00-00 ...SEAL...SEAL
-
75VK-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
84XV-12439-00-00 ...O-RING...O-RING
-
993210-33133-00 ...O-RING...O-RING
-
1095024-06025-00 ......BOLT, FLANGE (SMALL HEAD)......BOLT, FLANGE (SMALL HEAD)
-
1199009-12400-00 ...CIRCLIP...CIRCLIP
-
1290430-06166-00 ...GASKET...GASKET
-
1395824-06010-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1491314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
152CR-12481-00-00 PIPE 1PIPE 1
-
1693210-27194-00 O-RINGO-RING
-
1790105-06127-00 BOLT, FLANGEBOLT, FLANGE
-
1893210-26006-00 O-RINGO-RING
-
192CR-12484-00-00 PIPE 4PIPE 4
-
2093210-26006-00 O-RINGO-RING
-
2190110-06246-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2291312-06014-00 BOLTBOLT
