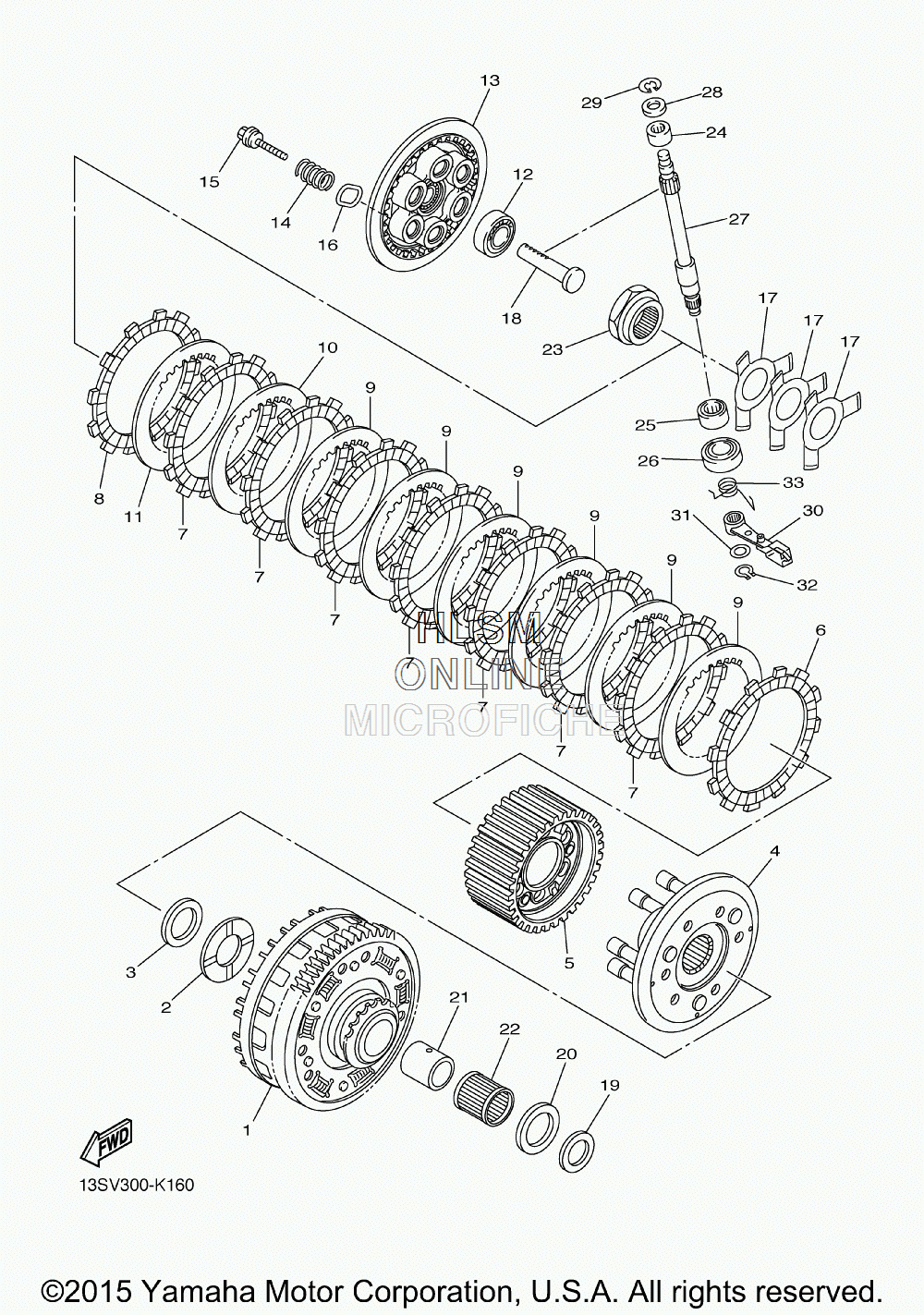

CLUTCH для Yamaha YZF-R6 60TH ANNIVERSARY [YZFR6GY] - 2016 года выпуска
-
№АртикулНазвание
-
12C0-16150-10-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
22C0-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
390208-25002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
413S-16360-00-00 PRESSURE PLATE ASSY 2PRESSURE PLATE ASSY 2
-
513S-16370-00-00 CLUTCH BOSS ASSYCLUTCH BOSS ASSY
-
65SL-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
75LV-16321-20-00 PLATE, FRICTIONPLATE, FRICTION
-
84FN-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
93J2-16324-00-00 PLATE, CLUTCH 1 (T=2.0)PLATE, CLUTCH 1 (T=2.0)
-
103J2-16324-00-00 PLATE, CLUTCH 1 (T=2.0)PLATE, CLUTCH 1 (T=2.0)
-
10168-16324-00-00 PLATE, CLUTCH 1 (T=2.3)PLATE, CLUTCH 1 (T=2.3)
-
113J2-16324-00-00 PLATE, CLUTCH 1 (T=2.0)PLATE, CLUTCH 1 (T=2.0)
-
11168-16325-00-00 PLATE, CLUTCH 2 (T=1.6)PLATE, CLUTCH 2 (T=1.6)
-
11168-16324-00-00 PLATE, CLUTCH 1 (T=2.3)PLATE, CLUTCH 1 (T=2.3)
-
1293306-00106-00 BEARINGBEARING
-
132C0-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1490501-220A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1590159-06024-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
162C0-16384-00-00 PLATE, SEATPLATE, SEAT
-
172S3-16539-00-00 SPRINGSPRING
-
182C0-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
192C0-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
201AE-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
2190387-25024-00 COLLARCOLLAR
-
2293310-340N8-00 BEARING CYL.#10BEARING CYL.#10
-
232C0-16377-00-00 NUT, LOCKNUT, LOCK
-
2493317-11096-00 BEARINGBEARING
-
2593315-21570-00 BEARINGBEARING
-
2693102-15212-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
272C0-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
2892907-08600-00 WASHER, PLATEWASHER, PLATE
-
2999001-07600-00 CIRCLIPCIRCLIP
-
302C0-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
3190201-10029-00 WASHER, PLATEWASHER, PLATE
-
3299009-10400-00 CIRCLIPCIRCLIP
-
3390508-16052-00 SPRING, TORSIONSPRING, TORSION
