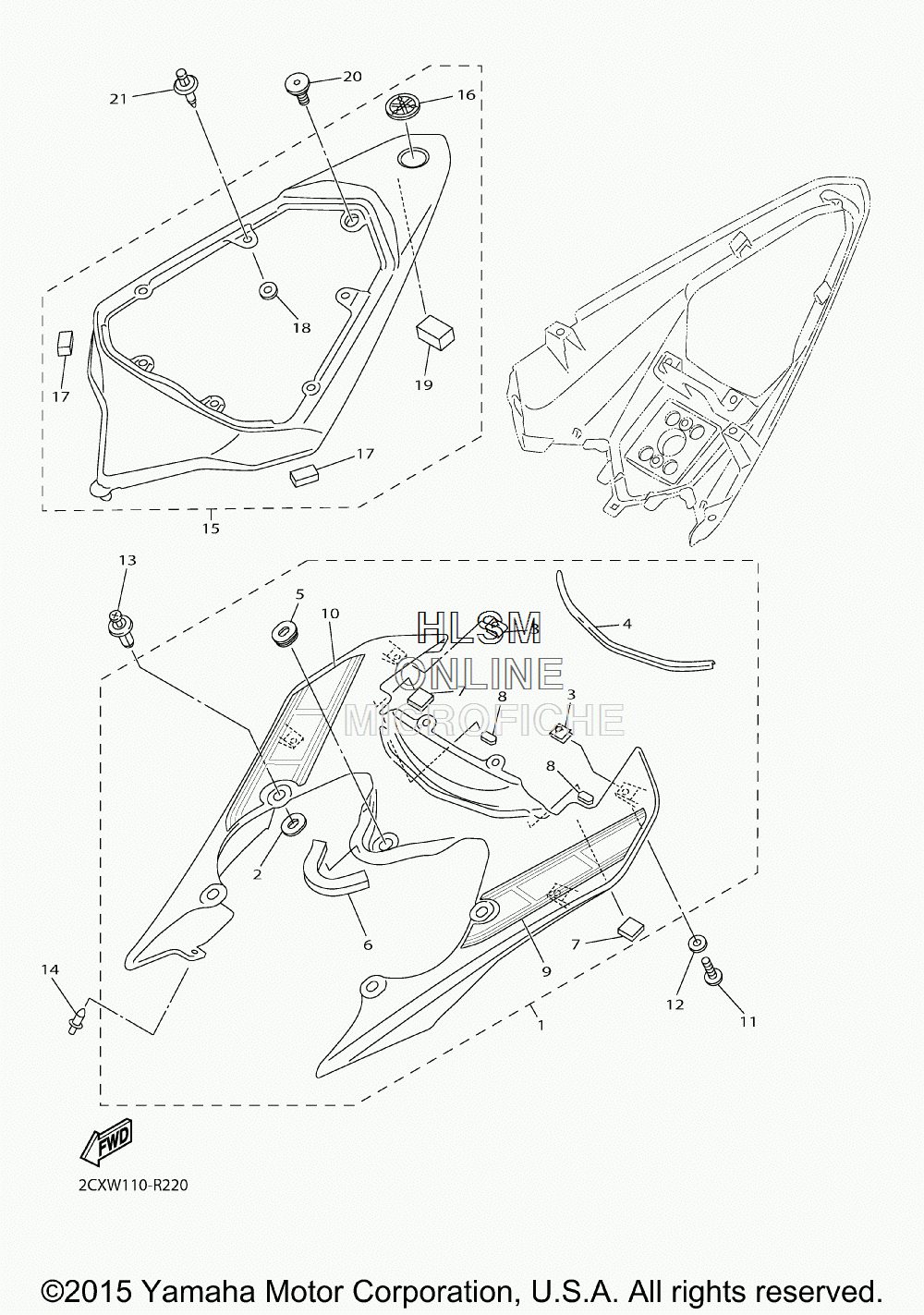

SIDE COVER для Yamaha YZF-R6 60TH ANNIVERSARY [YZFR6GY] - 2016 года выпуска
-
№АртикулНазвание
-
113S-Y2171-60-PC COVER, SIDE 1 (LRYS1)COVER, SIDE 1 (LRYS1)
-
25PW-2174X-00-00 ...DAMPER...DAMPER
-
390183-05076-00 ...NUT, SPRING...NUT, SPRING
-
413S-2171L-00-00 ...MOLE, SIDE COVER 1...MOLE, SIDE COVER 1
-
590480-01558-00 ...GROMMET...GROMMET
-
62C0-28237-00-00 ...DAMPER 3...DAMPER 3
-
71UF-15379-00-00 ...SEAL...SEAL
-
85SL-28416-00-00 ...DAMPER 2...DAMPER 2
-
92CX-2173E-10-00 ...GRAPHIC 1...GRAPHIC 1
-
102CX-2173F-10-00 ...GRAPHIC 2...GRAPHIC 2
-
1190111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1290202-05180-00 WASHER, PLATEWASHER, PLATE
-
1390269-07076-00 RIVET SPEC'L SHAPERIVET SPEC'L SHAPE
-
1490269-06008-00 RIVETRIVET
-
1513S-21720-00-P9 SIDE COVER ASSY 2 (LRYS1)SIDE COVER ASSY 2 (LRYS1)
-
164KN-2836B-10-00 ...TUNING FORK MARK...TUNING FORK MARK
-
1713S-21639-00-00 ...DAMPER 2...DAMPER 2
-
185SL-84753-00-00 ...DAMPER...DAMPER
-
194J2-21778-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
2090109-06248-00 BOLTBOLT
-
2190269-06001-00 RIVETRIVET
