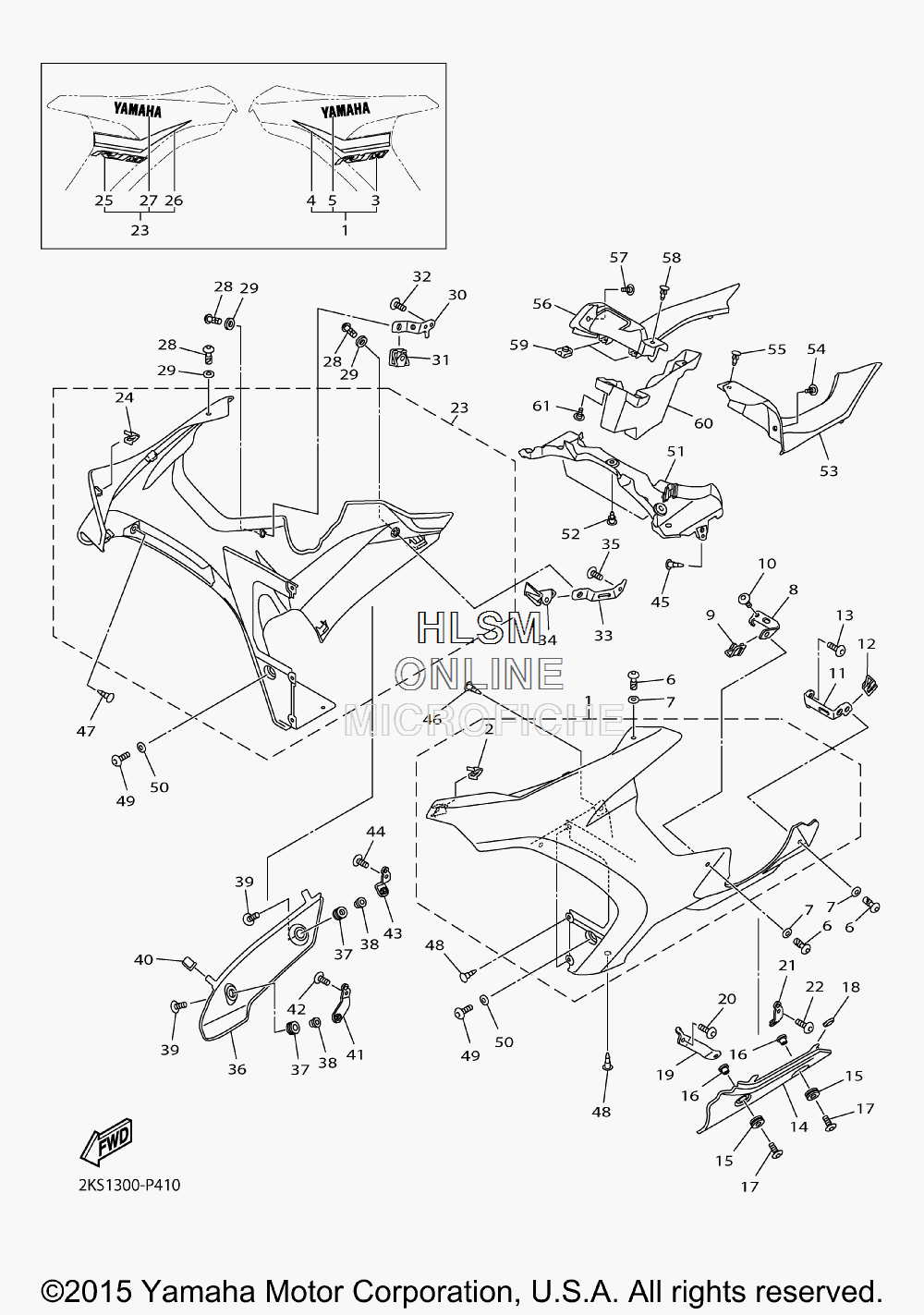

COWLING 2 для Yamaha YZFR1 M [YZFR1MG] - 2016 года выпуска
-
№АртикулНазвание
-
12KS-Y283U-10-0X PANEL ASSEMBLY 1 (BWM2)PANEL ASSEMBLY 1 (BWM2)
-
290468-040A0-00 ...CLIP...CLIP
-
32KS-28328-01-00 ...EMBLEM...EMBLEM
-
42KS-28391-00-00 ...GRAPHIC 1...GRAPHIC 1
-
599246-00120-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
62CR-28386-00-00 HEADHEAD
-
78HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
82CR-2833K-00-00 BRACKET 13BRACKET 13
-
92CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1090111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
112CR-2833L-00-00 BRACKET, 14BRACKET, 14
-
122CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1390111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
142CR-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
1590480-14477-00 GROMMETGROMMET
-
1690387-06307-00 COLLARCOLLAR
-
1790111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
185PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
192CR-2833R-00-00 BRACKET, 17BRACKET, 17
-
2090111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
212CR-2833T-00-00 BRACKET, 18BRACKET, 18
-
2290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
232KS-Y283V-10-0X PANEL ASSEMBLY 2 (BWM2)PANEL ASSEMBLY 2 (BWM2)
-
2490468-040A0-00 ...CLIP...CLIP
-
252KS-28328-01-00 ...EMBLEM...EMBLEM
-
262KS-28392-00-00 ...GRAPHIC 2...GRAPHIC 2
-
2799246-00120-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
282CR-28386-00-00 HEADHEAD
-
298HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
302CR-2833M-00-00 BRACKET, 15BRACKET, 15
-
312CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
332CR-2833N-00-00 BRACKET, 16BRACKET, 16
-
342CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3590111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
362CR-2834W-00-00 PROTECTOR 2PROTECTOR 2
-
3790480-14477-00 GROMMETGROMMET
-
3890387-06307-00 COLLARCOLLAR
-
3990111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
405PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
412CR-2833U-00-00 BRACKET, 19BRACKET, 19
-
4290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
432CR-2833V-00-00 BRACKET, 20BRACKET, 20
-
4490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4590269-07077-00 RIVETRIVET
-
4690269-06008-00 RIVETRIVET
-
4790269-07077-00 RIVETRIVET
-
4890269-06008-00 RIVETRIVET
-
4990149-06302-00 SCREWSCREW
-
5090387-06312-00 COLLARCOLLAR
-
512CR-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
5290269-06008-00 RIVETRIVET
-
532CR-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
5490111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5590269-06008-00 RIVETRIVET
-
562KS-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
5790111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5890269-06008-00 RIVETRIVET
-
5990183-05076-00 NUT, SPRINGNUT, SPRING
-
602CR-2838K-00-00 BOX 1BOX 1
-
6190111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
