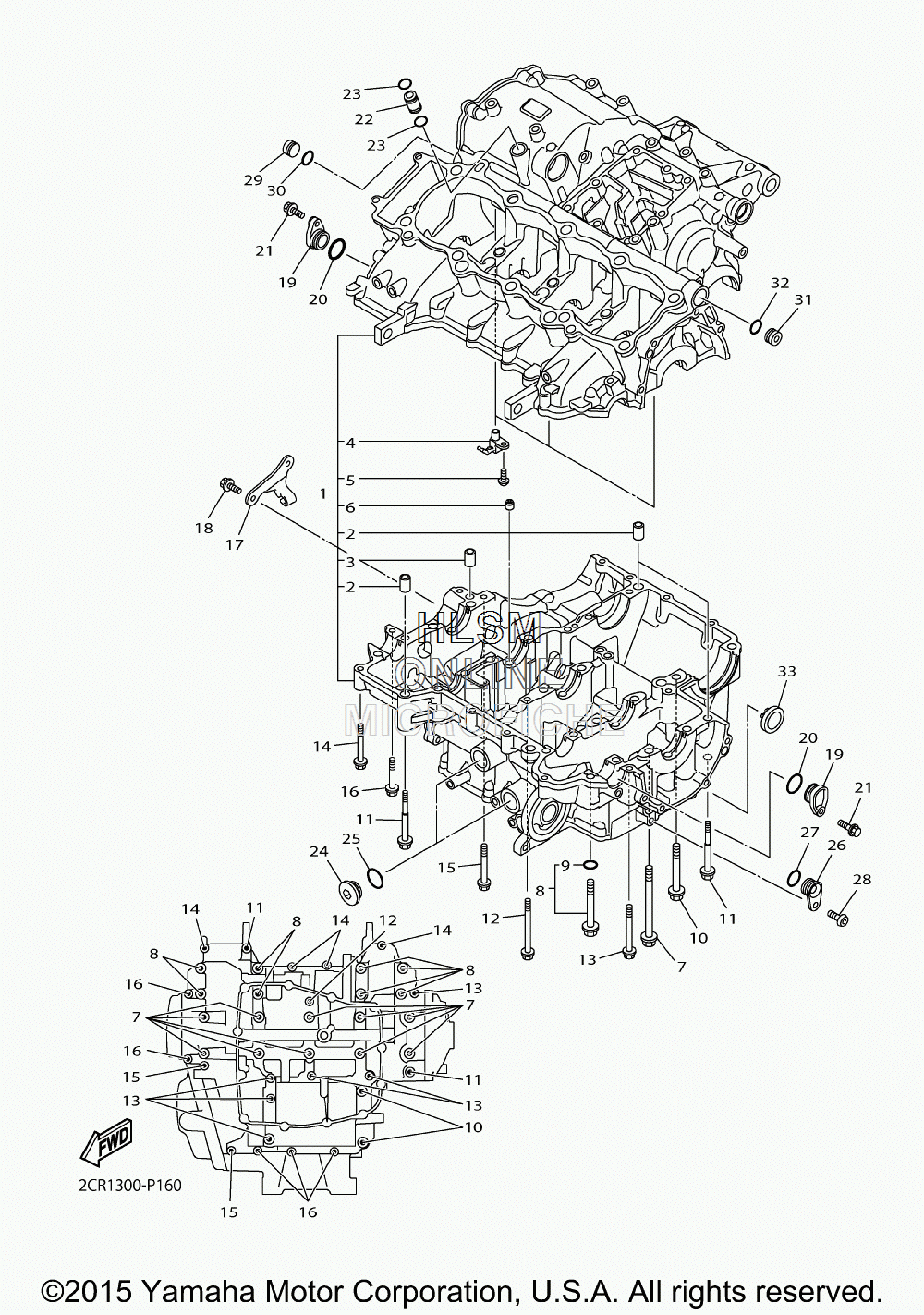

CRANKCASE для Yamaha YZFR1 M [YZFR1MG] - 2016 года выпуска
-
№АртикулНазвание
-
12CR-15100-18-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
391808-16002-00 ...PIN, DOWEL...PIN, DOWEL
-
42CR-15105-10-00 ...NOZZLE ASSY...NOZZLE ASSY
-
590149-06158-00 ...SCREW...SCREW
-
62CR-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
790119-09010-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
814B-15156-00-00 BOLT, CRANKCASE JOURNALBOLT, CRANKCASE JOURNAL
-
993210-07540-00 ...O-RING...O-RING
-
1095812-08060-00 BOLT, FLANGEBOLT, FLANGE
-
1190109-06100-00 BOLTBOLT
-
1295812-06070-00 BOLT, FLANGEBOLT, FLANGE
-
1395812-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1495812-06050-00 BOLT, FLANGEBOLT, FLANGE
-
1590105-06213-00 BOLT, FLANGEBOLT, FLANGE
-
1695812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
172CR-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1890110-06340-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
192CR-15189-00-00 PLUGPLUG
-
2093210-23326-00 O-RINGO-RING
-
2190110-06396-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
222CR-13191-00-00 PIPE, DELIVERY 4PIPE, DELIVERY 4
-
2393210-11453-00 O-RINGO-RING
-
244H7-15189-00-00 PLUGPLUG
-
2593210-207A0-00 O-RINGO-RING
-
262CR-15319-01-00 JOINTJOINT
-
2793210-13657-00 O-RINGO-RING
-
2890149-06068-00 SCREWSCREW
-
2990338-16262-00 PLUGPLUG
-
3093210-12790-00 O-RINGO-RING
-
3190338-16009-00 PLUGPLUG
-
3293210-16325-00 O-RINGO-RING
-
332H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
