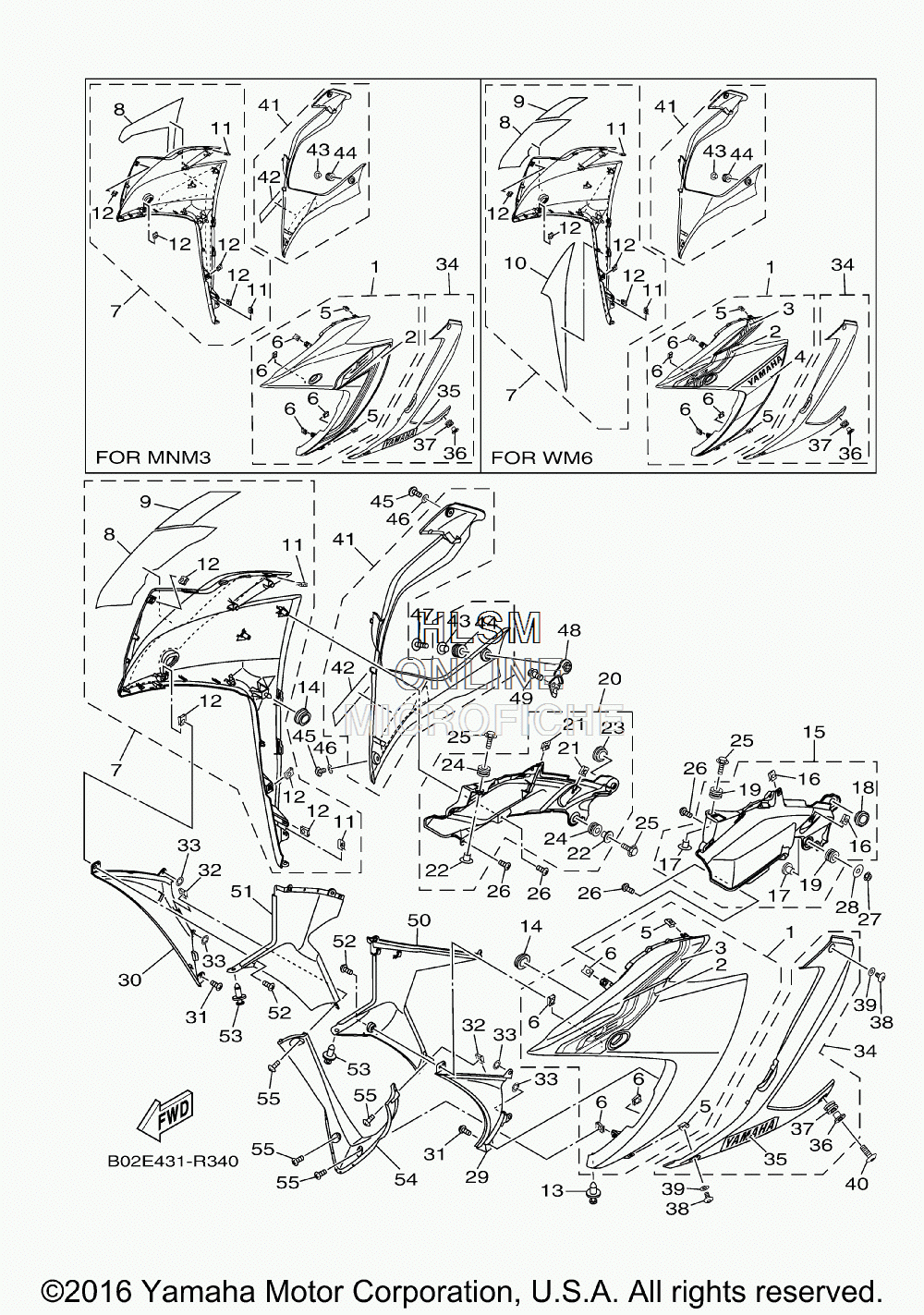

COWLING для Yamaha YZFR3 [YZFR3GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11WD-XF83L-70-P1 BODY, FRONT UNDER 1 SUB ASSY (OPT) (MS1 FOR DPBMC)BODY, FRONT UNDER 1 SUB ASSY (OPT) (MS1 FOR DPBMC)
-
11WD-XF83L-10-P4 BODY, FRONT UNDER 1 SUB ASSY (OPT) (FOR MNM3)BODY, FRONT UNDER 1 SUB ASSY (OPT) (FOR MNM3)
-
11WD-XF83L-90-P2 BODY, FRONT UNDER 1 SUB ASSY (OPT) (FOR WM6)BODY, FRONT UNDER 1 SUB ASSY (OPT) (FOR WM6)
-
22MS-F8393-60-00 ......GRAPHIC 3 (OPT) (FOR DPBMC)......GRAPHIC 3 (OPT) (FOR DPBMC)
-
22MS-F8393-70-00 ......GRAPHIC 3 (OPT) (FOR MNM3)......GRAPHIC 3 (OPT) (FOR MNM3)
-
22MS-F8393-80-00 ......GRAPHIC 3 (OPT) (FOR WM6)......GRAPHIC 3 (OPT) (FOR WM6)
-
32MS-F8398-60-00 ......GRAPHIC 5 (OPT) (FOR DPBMC)......GRAPHIC 5 (OPT) (FOR DPBMC)
-
31WD-F8398-70-00 ......GRAPHIC 5 (OPT) (FOR WM6)......GRAPHIC 5 (OPT) (FOR WM6)
-
41WD-F83GA-70-00 ......GRAPHIC, 7 (FOR WM6)......GRAPHIC, 7 (FOR WM6)
-
590183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
690183-05807-00 ...NUT, SPRING...NUT, SPRING
-
71WD-XF83M-80-P1 BODY, FRONT UNDER 2 SUB ASSY (OPT) (MS1 FOR DPBMC)BODY, FRONT UNDER 2 SUB ASSY (OPT) (MS1 FOR DPBMC)
-
71WD-XF83M-10-P4 BODY, FRONT UNDER 2 SUB ASSY (OPT) (FOR MNM3)BODY, FRONT UNDER 2 SUB ASSY (OPT) (FOR MNM3)
-
71WD-XF83M-90-P2 BODY, FRONT UNDER 2 SUB ASSY (OPT) (FOR WM6)BODY, FRONT UNDER 2 SUB ASSY (OPT) (FOR WM6)
-
82MS-F8394-60-00 ......GRAPHIC 4 (OPT) (FOR DPBMC)......GRAPHIC 4 (OPT) (FOR DPBMC)
-
82MS-F8394-70-00 ......GRAPHIC 4 (OPT) (FOR MNM3)......GRAPHIC 4 (OPT) (FOR MNM3)
-
82MS-F8394-80-00 ......GRAPHIC 4 (OPT) (FOR WM6)......GRAPHIC 4 (OPT) (FOR WM6)
-
91WD-F8399-60-00 ......GRAPHIC 6 (OPT) (FOR DPBMC)......GRAPHIC 6 (OPT) (FOR DPBMC)
-
91WD-F8399-70-00 ......GRAPHIC 6 (OPT) (FOR WM6)......GRAPHIC 6 (OPT) (FOR WM6)
-
101WD-F83GB-70-00 ......GRAPHIC, 8 (FOR WM6)......GRAPHIC, 8 (FOR WM6)
-
1190183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
1290183-05807-00 ...NUT, SPRING...NUT, SPRING
-
1390269-06081-00 RIVETRIVET
-
1490480-01558-00 GROMMETGROMMET
-
151WD-XF11W-10-P0 COVER 7 (MBL2 DPBMC,WM6)COVER 7 (MBL2 DPBMC,WM6)
-
151WD-XF11W-00-P2 COVER 7 (SMX MNM3)COVER 7 (SMX MNM3)
-
1690183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
1790387-06899-00 ...COLLAR...COLLAR
-
1890480-01558-00 ...GROMMET...GROMMET
-
1990480-12808-00 ...GROMMET...GROMMET
-
201WD-XF11X-10-P0 COVER 8 (MBL2 DPBMC,WM6)COVER 8 (MBL2 DPBMC,WM6)
-
201WD-XF11X-00-P2 COVER 8 ()COVER 8 ()
-
2190183-050A7-00 ...NUT, SPRING...NUT, SPRING
-
2290387-06899-00 ...COLLAR...COLLAR
-
2390480-01558-00 ...GROMMET...GROMMET
-
2490480-12808-00 ...GROMMET...GROMMET
-
2590119-06810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2795702-06500-00 NUT, FLANGENUT, FLANGE
-
2890201-06380-00 WASHER PLAINWASHER PLAIN
-
291WD-F835U-00-P0 PANEL 1 (MBL2 DPBMC,WM6)PANEL 1 (MBL2 DPBMC,WM6)
-
291WD-F835U-00-P1 PANEL 1 (SMX MNM3)PANEL 1 (SMX MNM3)
-
301WD-F835V-00-P0 PANEL 2 (MBL2 DPBMC,WM6)PANEL 2 (MBL2 DPBMC,WM6)
-
301WD-F835V-00-P1 PANEL 2 (SMX MNM3)PANEL 2 (SMX MNM3)
-
3197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3290183-05807-00 NUT, SPRINGNUT, SPRING
-
3390183-06815-00 NUT, SPRINGNUT, SPRING
-
341WD-XF838-20-P0 UNDER COVER ASSY 1 (OPT) (MBL2 FOR DPBMC)UNDER COVER ASSY 1 (OPT) (MBL2 FOR DPBMC)
-
341WD-XF838-00-P2 UNDER COVER ASSY 1 (OPT) (SMX FOR MNM3)UNDER COVER ASSY 1 (OPT) (SMX FOR MNM3)
-
341WD-XF838-00-P0 UNDER COVER ASSY 1 (OPT) (MBL2 FOR WM6)UNDER COVER ASSY 1 (OPT) (MBL2 FOR WM6)
-
351WD-F8328-30-00 ......EMBLEM (OPT) (FOR DPBMC)......EMBLEM (OPT) (FOR DPBMC)
-
351WD-F8328-40-00 ......EMBLEM (OPT) (FOR MNM3)......EMBLEM (OPT) (FOR MNM3)
-
3690387-06899-00 ...COLLAR...COLLAR
-
3790480-12808-00 ...GROMMET...GROMMET
-
3890111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3990202-05180-00 WASHER, PLATEWASHER, PLATE
-
4090111-06117-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
411WD-XF839-20-P0 UNDER COVER ASSY 2 (OPT) (MBL2 FOR DPBMC)UNDER COVER ASSY 2 (OPT) (MBL2 FOR DPBMC)
-
411WD-XF839-00-P2 UNDER COVER ASSY 2 (OPT) (SMX FOR MNM3)UNDER COVER ASSY 2 (OPT) (SMX FOR MNM3)
-
411WD-XF839-00-P0 UNDER COVER ASSY 2 (OPT) (MBL2 FOR WM6)UNDER COVER ASSY 2 (OPT) (MBL2 FOR WM6)
-
421WD-F8328-30-00 ......EMBLEM (OPT) (FOR DPBMC)......EMBLEM (OPT) (FOR DPBMC)
-
421WD-F8328-40-00 ......EMBLEM (OPT) (FOR MNM3)......EMBLEM (OPT) (FOR MNM3)
-
4390387-06899-00 ...COLLAR...COLLAR
-
4490480-12808-00 ...GROMMET...GROMMET
-
4590111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4690202-05180-00 WASHER, PLATEWASHER, PLATE
-
4790111-06117-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
481WD-F833E-00-00 BRACKET 8BRACKET 8
-
4995022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
501WD-F836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
511WD-F836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
5297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5390269-06081-00 RIVETRIVET
-
541WD-F836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
5597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
