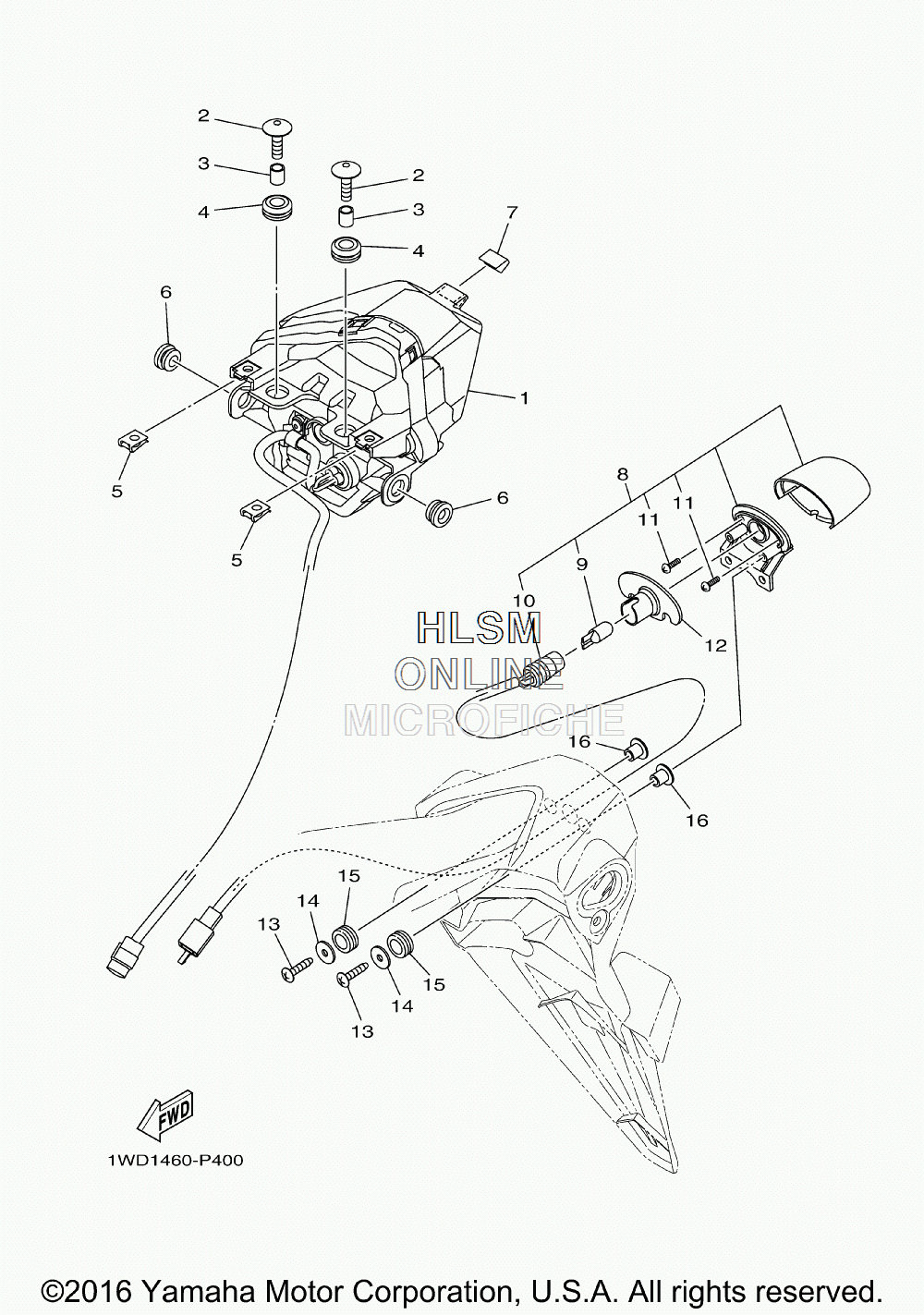

TAILLIGHT для Yamaha YZFR3 [YZFR3GGY] - 2016 года выпуска
-
№АртикулНазвание
-
11WD-H4710-01-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
290111-06117-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
390387-067V1-00 COLLARCOLLAR
-
490480-13001-00 GROMMETGROMMET
-
590183-05807-00 NUT, SPRINGNUT, SPRING
-
690480-10003-00 GROMMETGROMMET
-
71WD-F1732-00-00 SEAL 1SEAL 1
-
81WD-H4740-00-00 LICENCE LIGHT ASSYLICENCE LIGHT ASSY
-
91WD-H4744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
101WD-H4547-00-00 ......CORD, LICENSE LIGHT......CORD, LICENSE LIGHT
-
111WD-H4726-00-00 ...SCREW...SCREW
-
121WD-H4753-00-00 DAMPERDAMPER
-
1397707-40020-00 SCREW, TAPPINGSCREW, TAPPING
-
1490201-04804-00 WASHER, PLATEWASHER, PLATE
-
1590480-11009-00 GROMMETGROMMET
-
1690387-05042-00 COLLARCOLLAR
