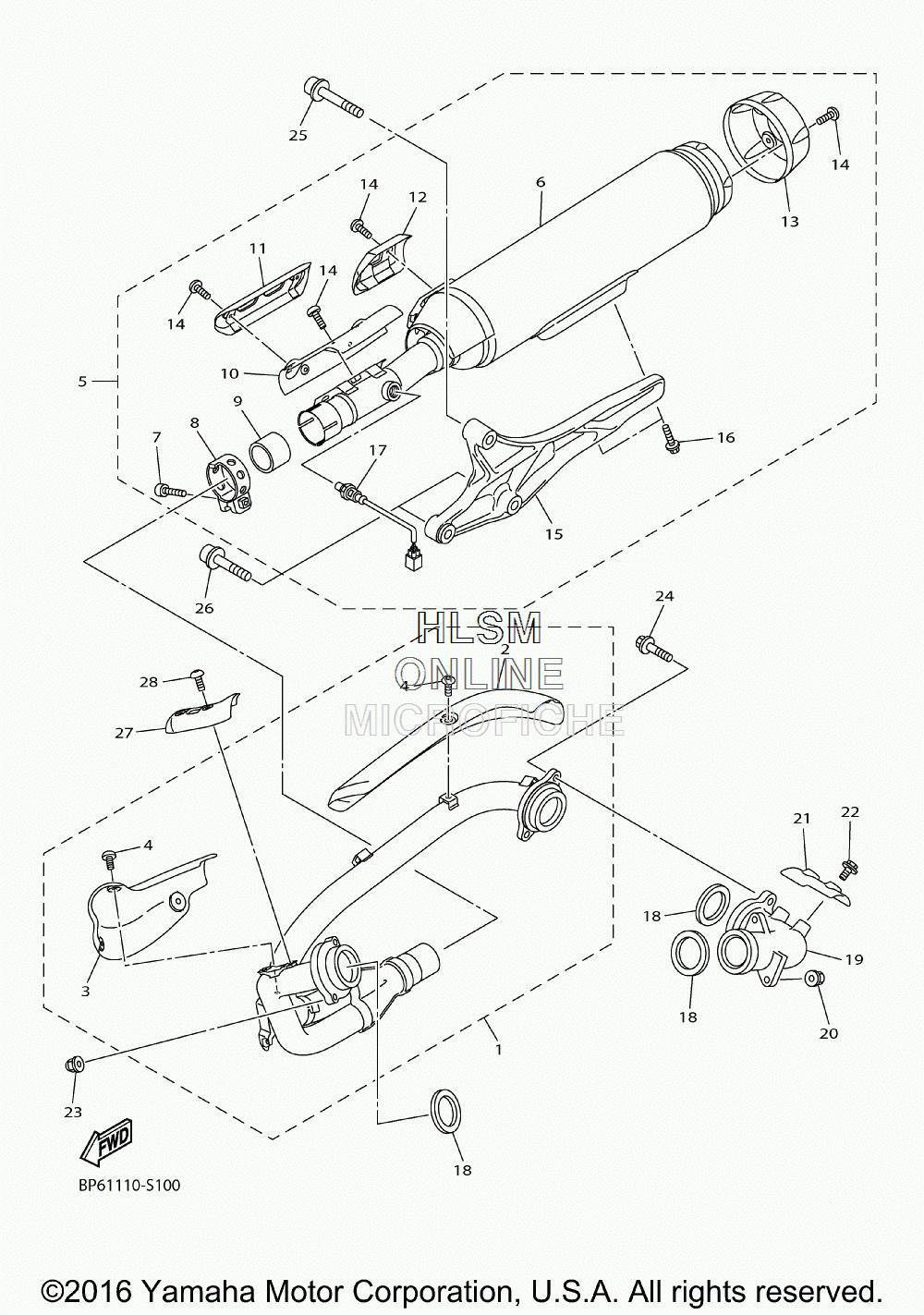

EXHAUST для Yamaha BOLT R SPEC - 2017 года выпуска
-
№АртикулНазвание
-
11TP-14610-10-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
21TP-1465T-01-00 ...PLATE, PROTECTOR 2...PLATE, PROTECTOR 2
-
31TP-1465U-00-00 ...PLATE, PROTECTOR 3...PLATE, PROTECTOR 3
-
490111-06147-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
51TP-14710-10-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
61TP-14711-01-00 ...MUFFLER 1...MUFFLER 1
-
791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
85S7-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
95YU-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
101TP-14728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
111TP-14738-00-00 ...PROTECTOR, MUFFLER 3...PROTECTOR, MUFFLER 3
-
121TP-14748-00-00 ...PROTECTOR, MUFFLER 4...PROTECTOR, MUFFLER 4
-
131TP-14799-01-00 ...CAP...CAP
-
1490111-06147-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
151TP-14772-00-00 ...STAY, MUFFLER 2...STAY, MUFFLER 2
-
1695814-10025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
175D1-8592A-00-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
183EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
191TP-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
2090176-08012-00 NUT, CROWNNUT, CROWN
-
211TP-1468W-00-00 PLATE, SILENCER 3PLATE, SILENCER 3
-
2295880-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2390176-08006-00 NUT, CROWNNUT, CROWN
-
2490105-08251-00 BOLT, FLANGEBOLT, FLANGE
-
2590110-10042-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690110-10038-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
271TP-1465R-01-00 PLATE, PROTECTOR 1PLATE, PROTECTOR 1
-
2890111-06148-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
