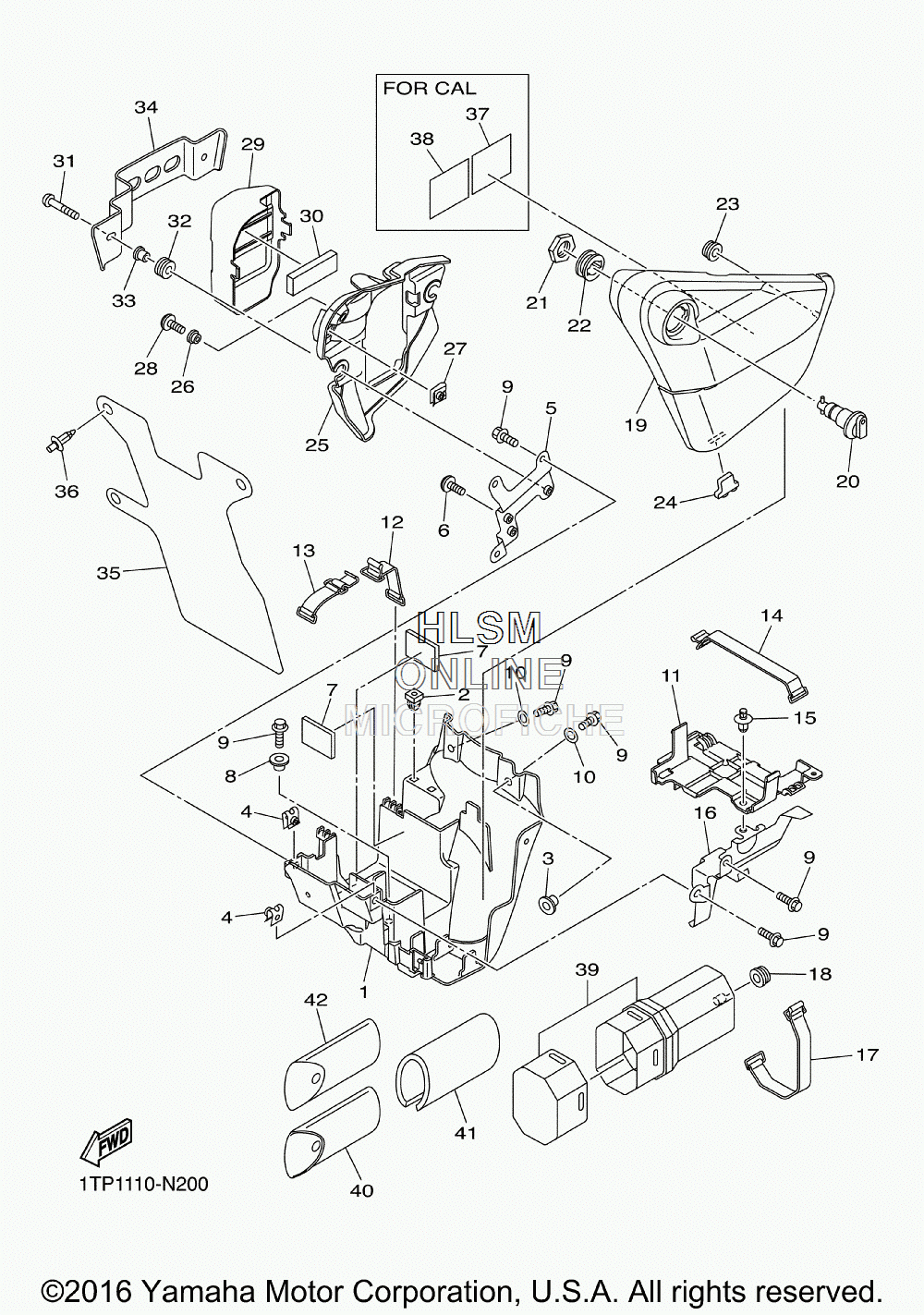

SIDE COVER для Yamaha BOLT R SPEC - 2017 года выпуска
-
№АртикулНазвание
-
11TP-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
290480-07003-00 GROMMETGROMMET
-
390387-06239-00 COLLARCOLLAR
-
490183-060A6-00 NUT, SPRINGNUT, SPRING
-
51TP-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
692017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
75S7-2139X-00-00 DAMPERDAMPER
-
890387-06267-00 COLLARCOLLAR
-
995022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-062P7-00 WASHER, PLATEWASHER, PLATE
-
111TP-2177A-00-00 BOXBOX
-
123TJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
131TP-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1418G-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1590269-07077-00 RIVETRIVET
-
161TP-28170-00-00 HOLDER, TOOLHOLDER, TOOL
-
1718G-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1890480-20001-00 GROMMETGROMMET
-
191TP-21711-00-00 COVER, SIDE 1COVER, SIDE 1
-
2055K-21708-00-00 LOCK ASSY 2LOCK ASSY 2
-
2190170-22187-00 NUTNUT
-
2290480-24186-00 GROMMETGROMMET
-
2390480-13398-00 GROMMETGROMMET
-
242N4-21717-00-00 DAMPERDAMPER
-
251TP-21721-00-00 COVER, SIDE 2COVER, SIDE 2
-
2690387-06173-00 COLLARCOLLAR
-
2790183-060A6-00 NUT, SPRINGNUT, SPRING
-
2890111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
291TP-2124E-00-00 COVER, BATTERYCOVER, BATTERY
-
304D3-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
3190111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3290480-14003-00 GROMMETGROMMET
-
3390387-0602X-00 COLLARCOLLAR
-
341TP-2176E-00-00 PLATEPLATE
-
351TP-2172W-00-00 COVERCOVER
-
3690269-06008-00 RIVETRIVET
-
375RU-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
3834B-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
39BL3-21107-00-00 TOOL BOX COMP.TOOL BOX COMP.
-
403D8-28100-10-00 TOOL KITTOOL KIT
-
4190520-08003-00 DAMPER, PLATEDAMPER, PLATE
-
421TP-28110-00-00 TOOL KIT, 2TOOL KIT, 2
