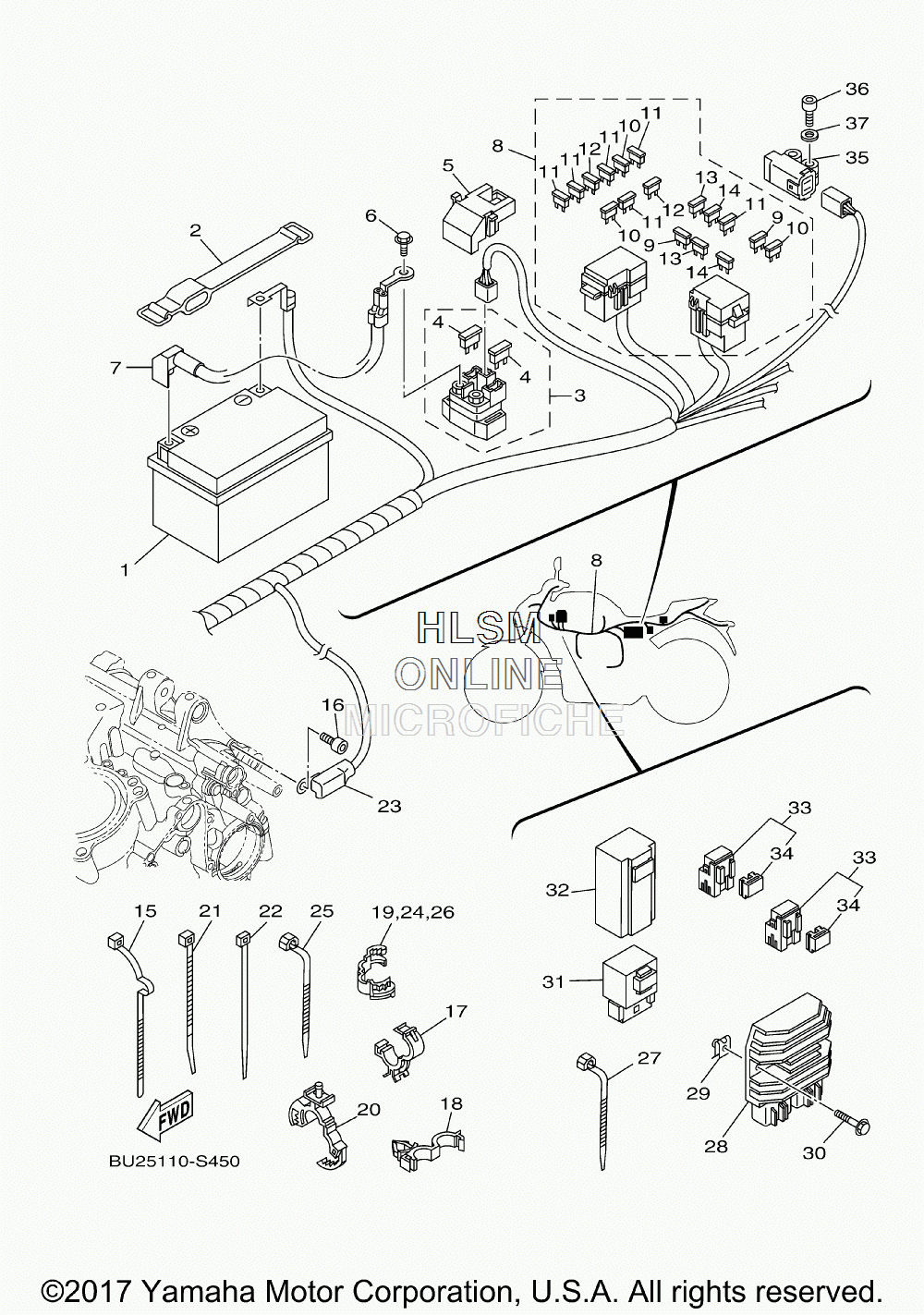

ELECTRICAL для Yamaha FZ07 ABS - 2017 года выпуска
-
№АртикулНазвание
-
15VY-82100-00-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
21WS-82131-00-00 BAND, BATTERYBAND, BATTERY
-
31XC-81940-00-00 STARTER RELAY ASSY (RC19-089B)STARTER RELAY ASSY (RC19-089B)
-
41AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
55SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
71XB-82115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
8BU2-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95JJ-82151-80-00 ...FUSE (2A-BL)...FUSE (2A-BL)
-
105JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
115JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
125JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
135JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
145JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
1590464-07M40-00 CLAMPCLAMP
-
1691380-06012-00 BOLTBOLT
-
1790464-20191-00 CLAMPCLAMP
-
1890464-18007-00 CLAMPCLAMP
-
1990464-14010-00 CLAMPCLAMP
-
2090464-18011-00 CLAMPCLAMP
-
211UA-82591-00-00 BANDBAND
-
2290464-65001-00 CLAMPCLAMP
-
231WS-81916-00-00 COVER, TERMINALCOVER, TERMINAL
-
2490464-14010-00 CLAMPCLAMP
-
2590464-13073-00 CLAMPCLAMP
-
2690464-14010-00 CLAMPCLAMP
-
2790464-25004-00 CLAMPCLAMP
-
2827D-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2990183-060A6-00 NUT, SPRINGNUT, SPRING
-
3095022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
315VK-81950-50-00 RELAY ASSY (G8R-30Y-V5)RELAY ASSY (G8R-30Y-V5)
-
321WS-8246B-00-00 COVER 1COVER 1
-
331TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
345EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
355PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3691312-04025-00 BOLTBOLT
-
3790201-04030-00 WASHER, PLATEWASHER, PLATE
