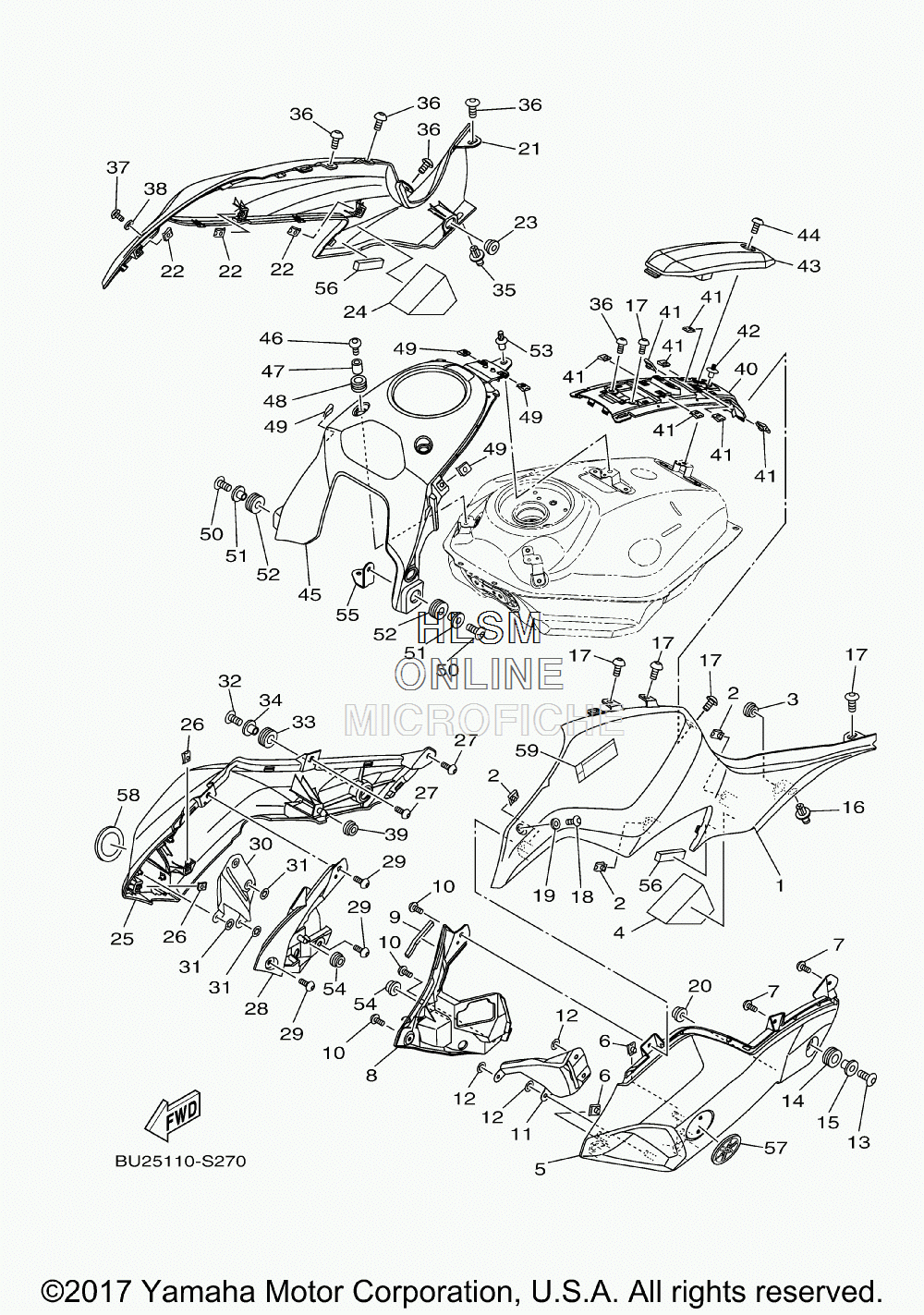

FUEL TANK SIDE COVER для Yamaha FZ07 ABS - 2017 года выпуска
-
№АртикулНазвание
-
11WS-24129-00-P2 COVER, SIDE 1 (VRC1 - VIVID RED)COVER, SIDE 1 (VRC1 - VIVID RED)
-
290183-05076-00 NUT, SPRINGNUT, SPRING
-
390480-01559-00 GROMMETGROMMET
-
41WS-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
51WS-2137W-00-00 SCOOP, AIR 1SCOOP, AIR 1
-
690183-05076-00 NUT, SPRINGNUT, SPRING
-
790111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
81WS-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
990520-10023-00 DAMPER, PLATEDAMPER, PLATE
-
1090111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
111WS-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
1290183-05M02-00 NUT, SPRINGNUT, SPRING
-
1390110-06087-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490480-17007-00 GROMMETGROMMET
-
1590387-10107-00 COLLARCOLLAR
-
1690269-07077-00 RIVETRIVET
-
1790111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1890111-05037-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1990202-05088-00 WASHER, PLATEWASHER, PLATE
-
2090480-01558-00 GROMMETGROMMET
-
211WS-24139-00-P2 COVER, SIDE 2 (VRC1 - VIVID RED)COVER, SIDE 2 (VRC1 - VIVID RED)
-
2290183-05076-00 NUT, SPRINGNUT, SPRING
-
2390480-01559-00 GROMMETGROMMET
-
241WS-2414R-00-00 DAMPER, PLATE 6DAMPER, PLATE 6
-
251WS-2137X-00-00 SCOOP, AIR 2SCOOP, AIR 2
-
2690183-05076-00 NUT, SPRINGNUT, SPRING
-
2790111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
281WS-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
2990111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
301WS-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
3190183-05M02-00 NUT, SPRINGNUT, SPRING
-
3290110-06087-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3390480-17007-00 GROMMETGROMMET
-
3490387-10107-00 COLLARCOLLAR
-
3590269-07077-00 RIVETRIVET
-
3690111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3790111-05037-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3890202-05088-00 WASHER, PLATEWASHER, PLATE
-
3990480-01558-00 GROMMETGROMMET
-
401WS-2171A-00-P2 COVER, TOP (VRC1 - VIVID RED)COVER, TOP (VRC1 - VIVID RED)
-
4190183-05076-00 NUT, SPRINGNUT, SPRING
-
4290269-07077-00 RIVETRIVET
-
431WS-28219-00-00 COVER 1COVER 1
-
4490111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
451XB-2464E-00-00 COVER, CAPCOVER, CAP
-
4690111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4790387-0611W-00 COLLARCOLLAR
-
4890480-13018-00 GROMMETGROMMET
-
4990183-05076-00 NUT, SPRINGNUT, SPRING
-
5090111-06084-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5190387-07042-00 COLLARCOLLAR
-
5290480-14452-00 GROMMETGROMMET
-
5390269-07077-00 RIVETRIVET
-
5490480-01559-00 GROMMETGROMMET
-
551WS-2463E-00-00 BRACKET, CAPBRACKET, CAP
-
5690520-09002-00 DAMPER, PLATEDAMPER, PLATE
-
571RC-2413B-00-00 EMBLEMEMBLEM
-
581RC-2413B-00-00 EMBLEMEMBLEM
-
591TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
