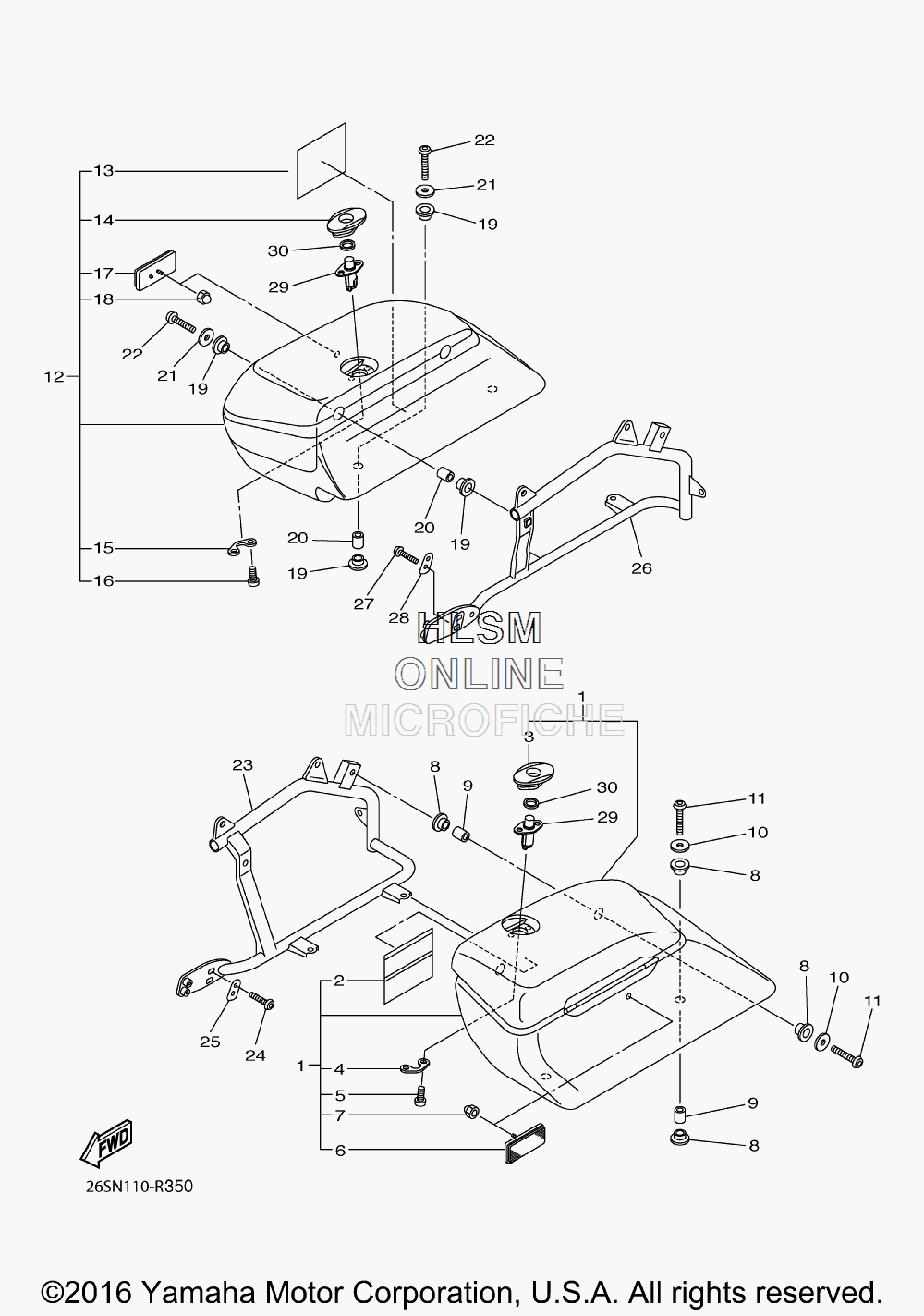

SADDLEBAGS для Yamaha V STAR 900 TOURER - 2017 года выпуска
-
№АртикулНазвание
-
126S-F8430-00-00 SADDLEBAG COMP. 1SADDLEBAG COMP. 1
-
25S6-F8446-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
35S6-F8493-00-00 ...COVER LOCK ASSY 2...COVER LOCK ASSY 2
-
42C5-F848T-00-00 ...PLATE, LOCK 1...PLATE, LOCK 1
-
592014-05010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
63Y6-85130-02-00 ...REAR REFLECTOR ASSY...REAR REFLECTOR ASSY
-
790176-05001-00 ...NUT, CROWN...NUT, CROWN
-
890480-20004-00 GROMMETGROMMET
-
990387-08077-00 COLLARCOLLAR
-
1090201-065G8-00 WASHER, PLATEWASHER, PLATE
-
1192012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1226S-F8440-00-00 SADDBAG COMP. 2SADDBAG COMP. 2
-
135S6-F8446-00-00 ...LABEL, CAUTION...LABEL, CAUTION
-
145S6-F849K-00-00 ...COVER LOCK ASSY 2...COVER LOCK ASSY 2
-
152C5-F848T-00-00 ...PLATE, LOCK 1...PLATE, LOCK 1
-
1692014-05010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
173Y6-85130-02-00 ...REAR REFLECTOR ASSY...REAR REFLECTOR ASSY
-
1890176-05001-00 ...NUT, CROWN...NUT, CROWN
-
1990480-20004-00 GROMMETGROMMET
-
2090387-08077-00 COLLARCOLLAR
-
2190201-065G8-00 WASHER, PLATEWASHER, PLATE
-
2292012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2326S-28473-00-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
2490111-08046-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
255S6-28417-00-00 PLATEPLATE
-
2626S-28474-00-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
2790111-08046-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
285S6-28417-00-00 PLATEPLATE
-
295S6-28408-00-00 LOCK ASSY 1LOCK ASSY 1
-
305S6-28428-00-00 SEAL 1SEAL 1
