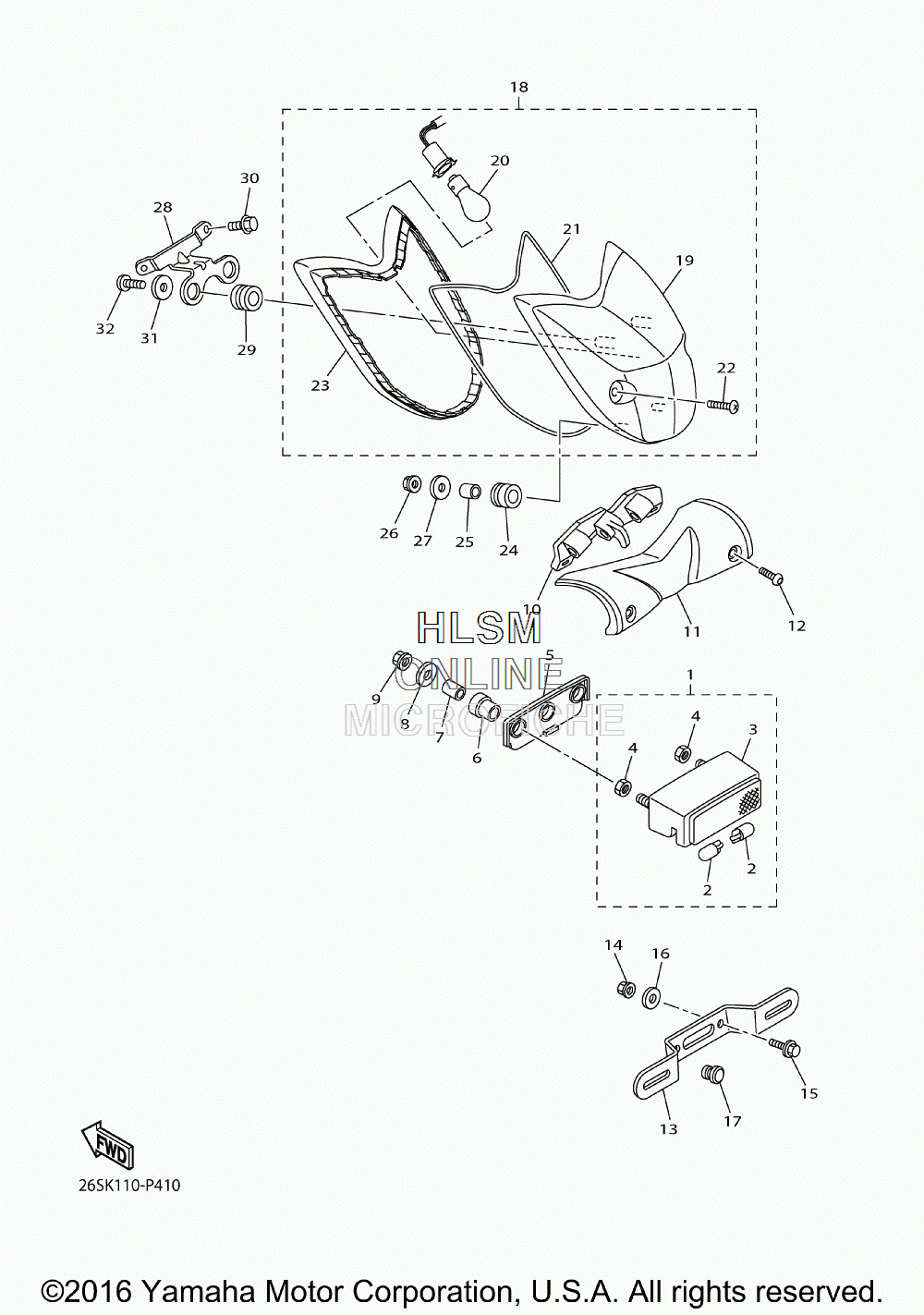

TAILLIGHT для Yamaha V STAR 900 TOURER - 2017 года выпуска
-
№АртикулНазвание
-
15C7-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
25PX-84744-00-00 ...BULB (12V-2CP)...BULB (12V-2CP)
-
35PX-84749-00-00 ...BODY, LICENSE LIGHT...BODY, LICENSE LIGHT
-
45PX-84748-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
55PX-84742-00-00 SEAT, BASESEAT, BASE
-
63F9-84553-00-00 DAMPERDAMPER
-
790387-06251-00 COLLARCOLLAR
-
890201-05025-00 WASHER, PLATEWASHER, PLATE
-
995702-05500-00 NUT, FLANGENUT, FLANGE
-
105S7-82522-00-00 CLAMP, COUPLERCLAMP, COUPLER
-
115S7-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
1292014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1326S-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
1495602-06100-00 NUT, S/LNUT, S/L
-
1595022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-06380-00 WASHER PLAINWASHER PLAIN
-
1790338-07010-00 PLUGPLUG
-
185S7-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
195S7-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
201A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
215S7-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
223D8-84726-00-00 ...SCREW...SCREW
-
235S7-84736-00-00 ...DAMPER, TAIL 1...DAMPER, TAIL 1
-
2490480-14016-00 GROMMETGROMMET
-
2590387-064M9-00 COLLARCOLLAR
-
2695302-06600-00 NUT, HEXAGONNUT, HEXAGON
-
2790201-06063-00 WASHER, PLATEWASHER, PLATE
-
285S7-84702-01-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2990480-14004-00 GROMMETGROMMET
-
3090105-06085-00 BOLT, FLANGEBOLT, FLANGE
-
3190201-05032-00 WASHER, PLATEWASHER, PLATE
-
3297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
