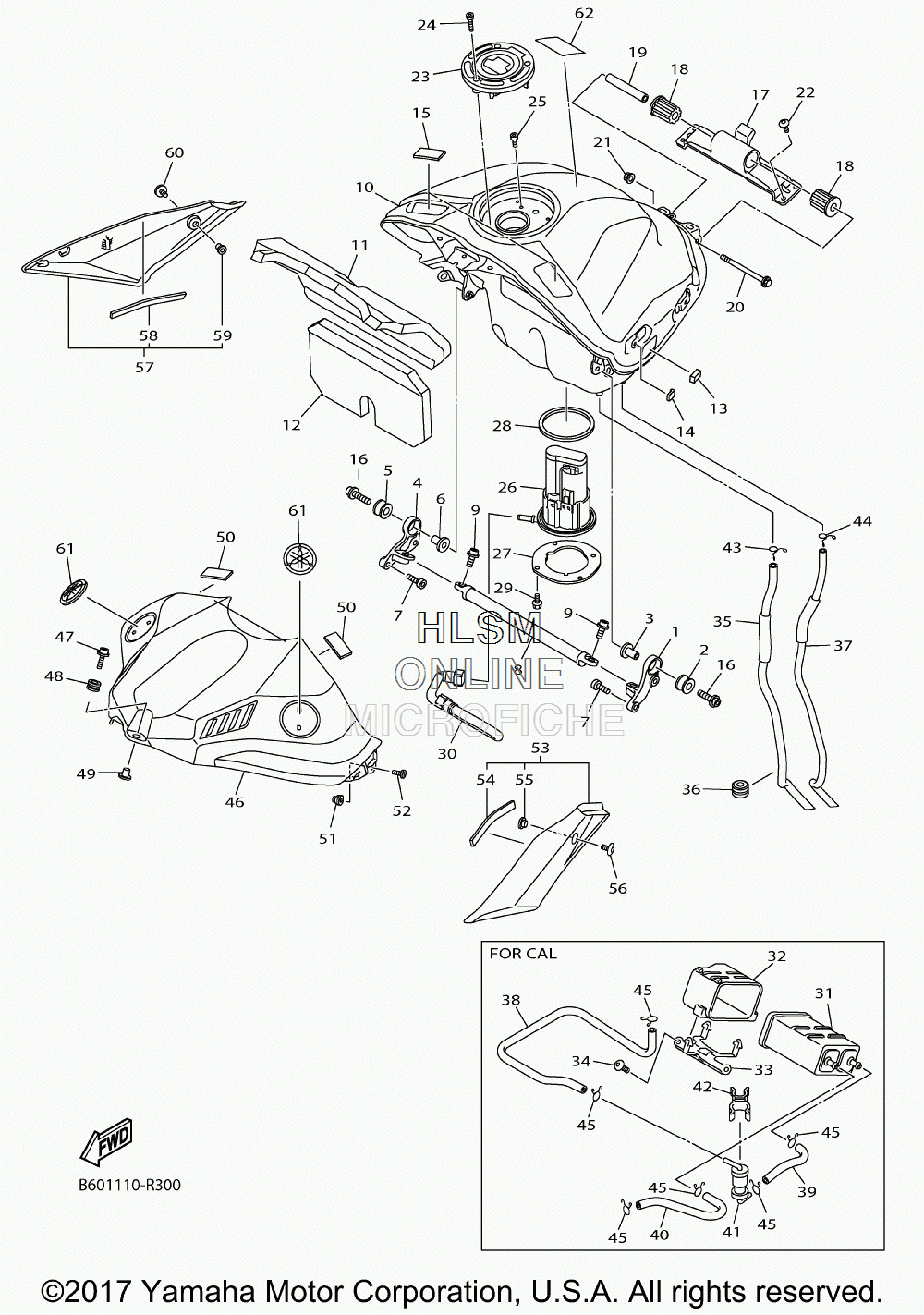

FUEL TANK для Yamaha YZFR1 - 2017 года выпуска
-
№АртикулНазвание
-
12CR-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
290480-18008-00 GROMMETGROMMET
-
390387-06091-00 COLLARCOLLAR
-
42CR-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
590480-18008-00 GROMMETGROMMET
-
690387-06091-00 COLLARCOLLAR
-
791312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
82CR-2142V-00-00 CROSS BARCROSS BAR
-
990110-08097-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
102CR-YK241-00-P2 FUEL TANK COMP. (SMX - BLACK METALLIC)FUEL TANK COMP. (SMX - BLACK METALLIC)
-
102CR-YK241-00-P0 FUEL TANK COMP. (DPBMC - BLUE METALLIC)FUEL TANK COMP. (DPBMC - BLUE METALLIC)
-
112CR-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
122CR-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
1313S-21639-00-00 DAMPER 2DAMPER 2
-
145PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
152PP-2411G-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
1690110-06346-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
172CR-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
185SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1990387-06055-00 COLLARCOLLAR
-
2095812-06090-00 BOLT, FLANGEBOLT, FLANGE
-
2195702-06500-00 NUT, FLANGENUT, FLANGE
-
2290111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
232CR-24602-00-00 CAP ASSYCAP ASSY
-
2490110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2591312-05010-00 BOLTBOLT
-
262CR-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
272CR-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
281RC-24486-00-00 O-RINGO-RING
-
2990119-05015-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
302CR-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
312CR-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
322CR-24182-00-00 DAMPER, LOCATING 2 (CALIF ONLY)DAMPER, LOCATING 2 (CALIF ONLY)
-
332CR-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
3490149-06084-00 SCREW (CALIF ONLY)SCREW (CALIF ONLY)
-
352CR-24312-00-00 PIPE 2PIPE 2
-
3690480-14032-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
372CR-24313-00-00 PIPE 3PIPE 3
-
382CR-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
392CR-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
402CR-24316-00-00 PIPE 6 (CALIF ONLY)PIPE 6 (CALIF ONLY)
-
412C0-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
4290464-15001-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4390467-11106-00 CLIPCLIP
-
4490467-090A2-00 CLIPCLIP
-
4590467-090A2-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
462CR-2171A-00-P2 COVER, TOP (FOR SMX)COVER, TOP (FOR SMX)
-
462CR-2171A-00-P0 COVER, TOP (DPBMC - BLUE METALLIC)COVER, TOP (DPBMC - BLUE METALLIC)
-
4790110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4890480-12023-00 GROMMETGROMMET
-
4990387-06203-00 COLLARCOLLAR
-
505XT-2411G-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
5190179-05523-00 NUTNUT
-
5298902-05014-00 SCREW, BINDSCREW, BIND
-
532CR-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
5490520-03016-00 ...DAMPER, PLATE...DAMPER, PLATE
-
5590387-05035-00 ...COLLAR...COLLAR
-
5690111-05019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
572CR-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
5890520-03016-00 ...DAMPER, PLATE...DAMPER, PLATE
-
5990387-05035-00 ...COLLAR...COLLAR
-
6090111-05019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
611RC-2413B-00-00 EMBLEMEMBLEM
-
6229P-2816R-00-00 LABEL, WARNING GENERAL INFO.LABEL, WARNING GENERAL INFO.
