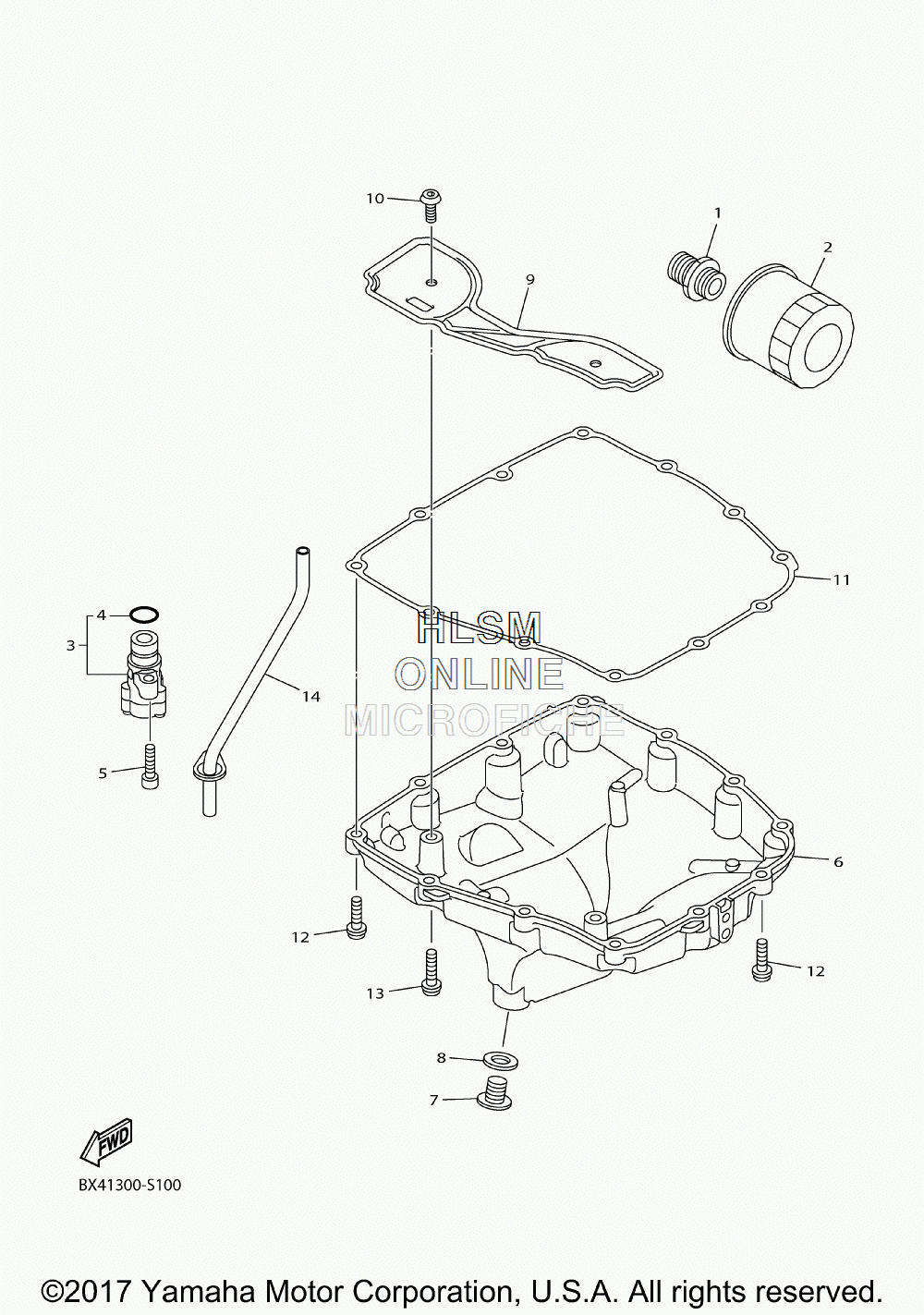

OIL CLEANER для Yamaha YZFR1 - 2017 года выпуска
-
№АртикулНазвание
-
190401-20008-00 BOLT, UNIONBOLT, UNION
-
25GH-13440-60-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
32CR-13490-00-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
493210-15566-00 ...O-RING...O-RING
-
590110-06169-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
62CR-13417-01-00 COVER, STRAINERCOVER, STRAINER
-
790340-14019-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
890430-14005-00 GASKETGASKET
-
92CR-13337-01-00 PLATE, BAFFLE LOWERPLATE, BAFFLE LOWER
-
1090111-06168-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
112CR-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
1290109-06300-00 BOLTBOLT
-
13BX4-13573-00-00 BOLT 1BOLT 1
-
142CR-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
