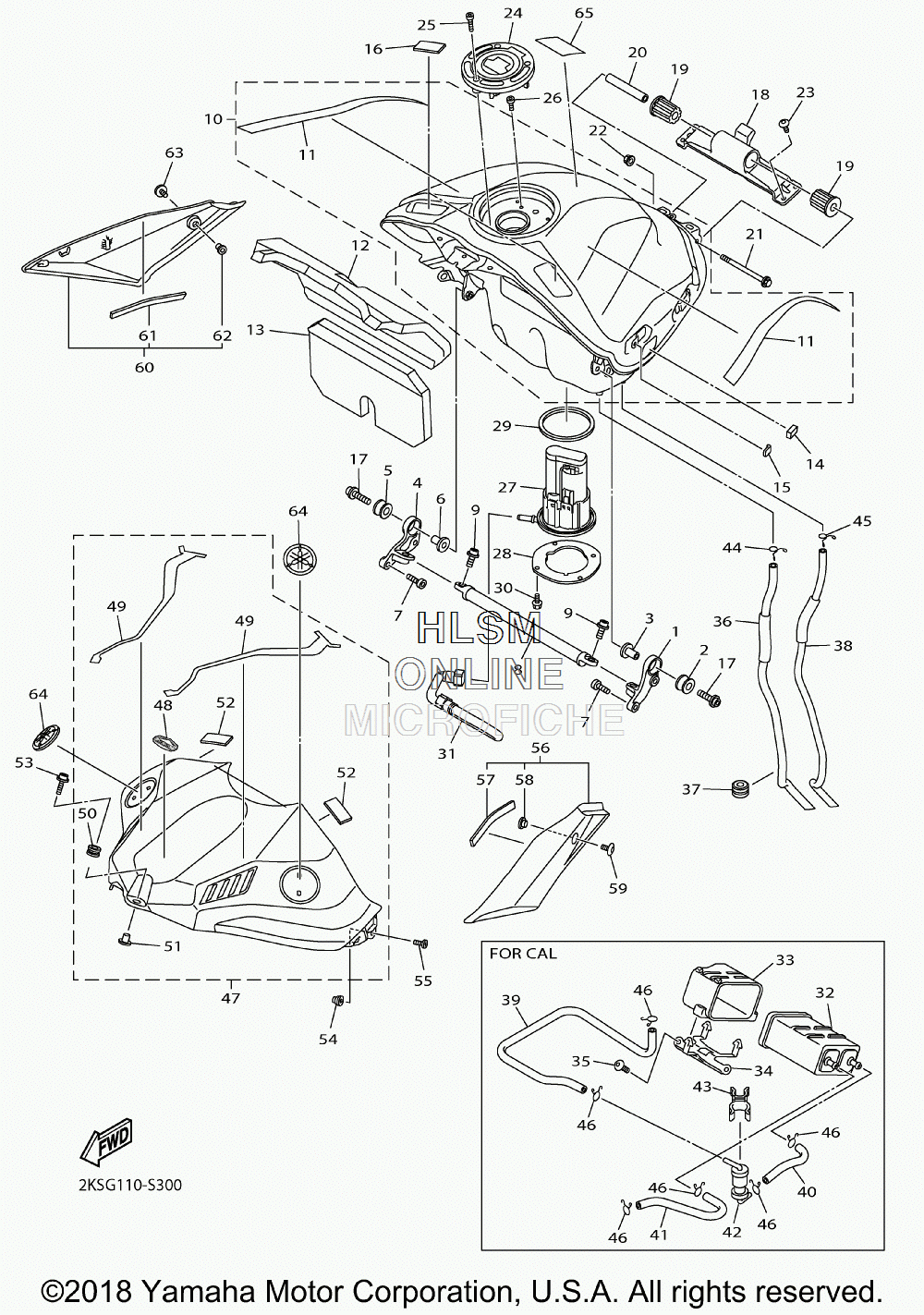

FUEL TANK для Yamaha YZFR1 M - 2018 года выпуска
-
№АртикулНазвание
-
12CR-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
290480-18008-00 GROMMETGROMMET
-
390387-06091-00 COLLARCOLLAR
-
42CR-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
590480-18008-00 GROMMETGROMMET
-
690387-06091-00 COLLARCOLLAR
-
791312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
82CR-2142V-00-00 CROSS BARCROSS BAR
-
990110-08097-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
102KS-Y2410-10-01 FUEL TANK COMP. (SMX - BLACK METALLIC)FUEL TANK COMP. (SMX - BLACK METALLIC)
-
112KS-24240-00-00 ...GRAPHIC SET...GRAPHIC SET
-
122CR-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
132CR-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
1413S-21639-00-00 DAMPER 2DAMPER 2
-
155PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
162PP-2411G-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
1790110-06346-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
182CR-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
195SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
2090387-06055-00 COLLARCOLLAR
-
2195812-06090-00 BOLT, FLANGEBOLT, FLANGE
-
2295702-06500-00 NUT, FLANGENUT, FLANGE
-
2390111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
242CR-24602-00-00 CAP ASSYCAP ASSY
-
2590110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2691312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
272CR-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
282CR-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
291RC-24486-00-00 O-RINGO-RING
-
3090119-05015-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
312CR-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
322CR-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
332CR-24182-00-00 DAMPER, LOCATING 2 (CALIF ONLY)DAMPER, LOCATING 2 (CALIF ONLY)
-
342CR-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
3590149-06084-00 SCREW (CALIF ONLY)SCREW (CALIF ONLY)
-
362CR-24312-00-00 PIPE 2PIPE 2
-
3790480-14032-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
382CR-24313-00-00 PIPE 3PIPE 3
-
392CR-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
402CR-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
412CR-24316-00-00 PIPE 6 (CALIF ONLY)PIPE 6 (CALIF ONLY)
-
422C0-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
4390464-15001-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4490467-11106-00 CLIPCLIP
-
4590467-090A2-00 CLIPCLIP
-
4690467-090A2-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
472CR-Y217F-80-1X COVER, TOP (FUEL TANK) (BWM2 - BLUISH WHITE / SMX - BLACK METALLIC)COVER, TOP (FUEL TANK) (BWM2 - BLUISH WHITE / SMX - BLACK METALLIC)
-
482KS-2416B-00-00 ...EMBLEM...EMBLEM
-
492KS-24230-00-00 ...GRAPHIC SET 1...GRAPHIC SET 1
-
5090480-12023-00 ...GROMMET...GROMMET
-
5190387-06203-00 ...COLLAR...COLLAR
-
525XT-2411G-00-00 ...HOOK, SIDE COVER 1...HOOK, SIDE COVER 1
-
5390110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5490179-05523-00 NUTNUT
-
5598902-05014-00 SCREW, BINDSCREW, BIND
-
562CR-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
5790520-03016-00 ...DAMPER, PLATE...DAMPER, PLATE
-
5890387-05035-00 ...COLLAR...COLLAR
-
5990111-05019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
602CR-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
6190520-03016-00 ...DAMPER, PLATE...DAMPER, PLATE
-
6290387-05035-00 ...COLLAR...COLLAR
-
6390111-05019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
641RC-2413B-00-00 EMBLEMEMBLEM
-
6529P-2816R-00-00 LABEL, WARNING GENERAL INFO.LABEL, WARNING GENERAL INFO.
