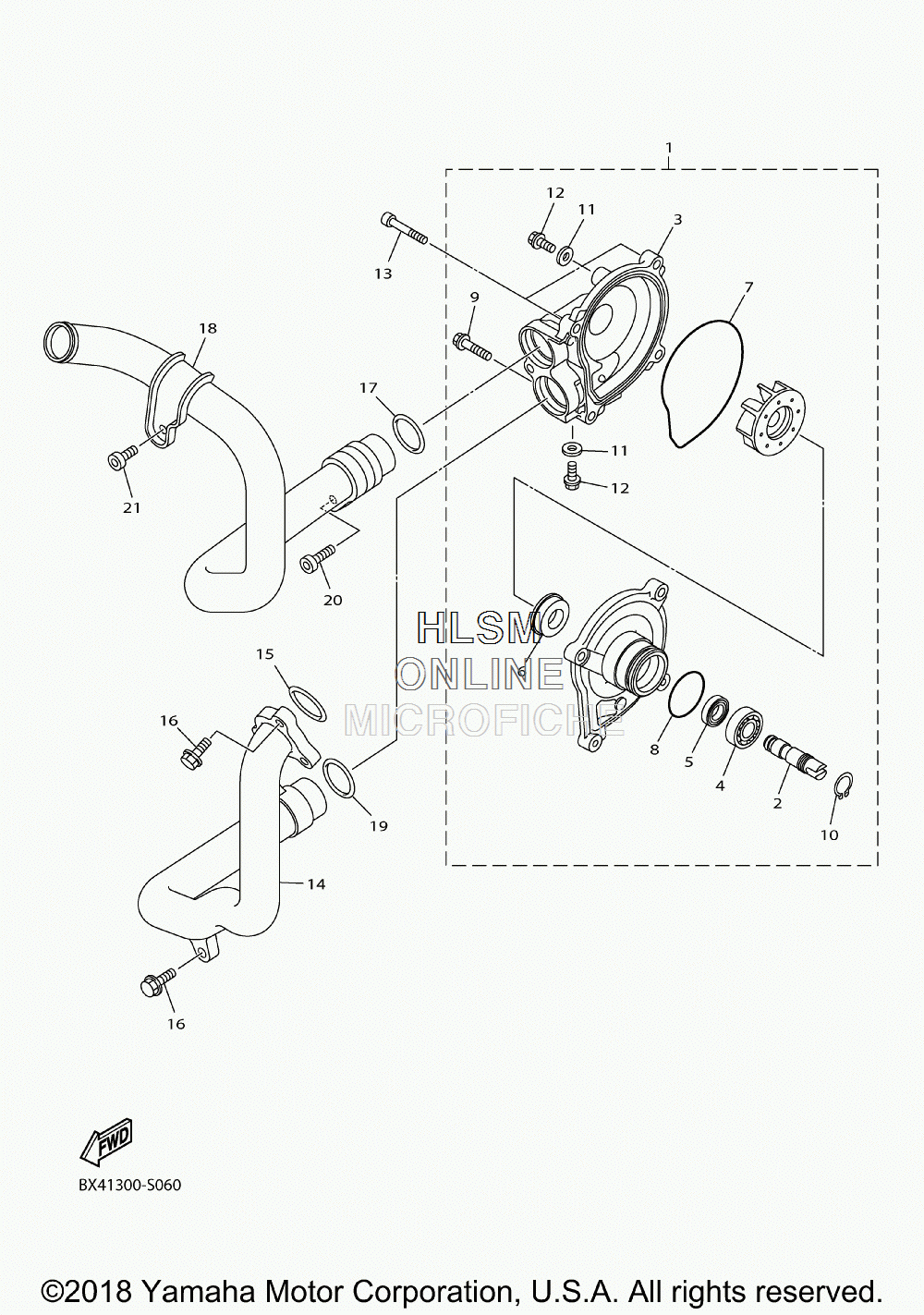

WATER PUMP для Yamaha YZFR1 M - 2018 года выпуска
-
№АртикулНазвание
-
1B67-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
22CR-12450-01-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
3B67-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
493306-00106-00 ...BEARING...BEARING
-
52CR-13338-00-00 ...SEAL...SEAL
-
65VK-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
74XV-12439-00-00 ...O-RING...O-RING
-
893210-33133-00 ...O-RING...O-RING
-
995024-06025-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
1099009-12400-00 ...CIRCLIP...CIRCLIP
-
1190430-06166-00 ...GASKET...GASKET
-
1295824-06010-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1391314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
142CR-12481-00-00 PIPE 1PIPE 1
-
1593210-27194-00 O-RINGO-RING
-
1690105-06127-00 BOLT, FLANGEBOLT, FLANGE
-
1793210-26006-00 O-RINGO-RING
-
18B67-12484-00-00 PIPE 4PIPE 4
-
1993210-26006-00 O-RINGO-RING
-
2090110-06246-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2191312-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
