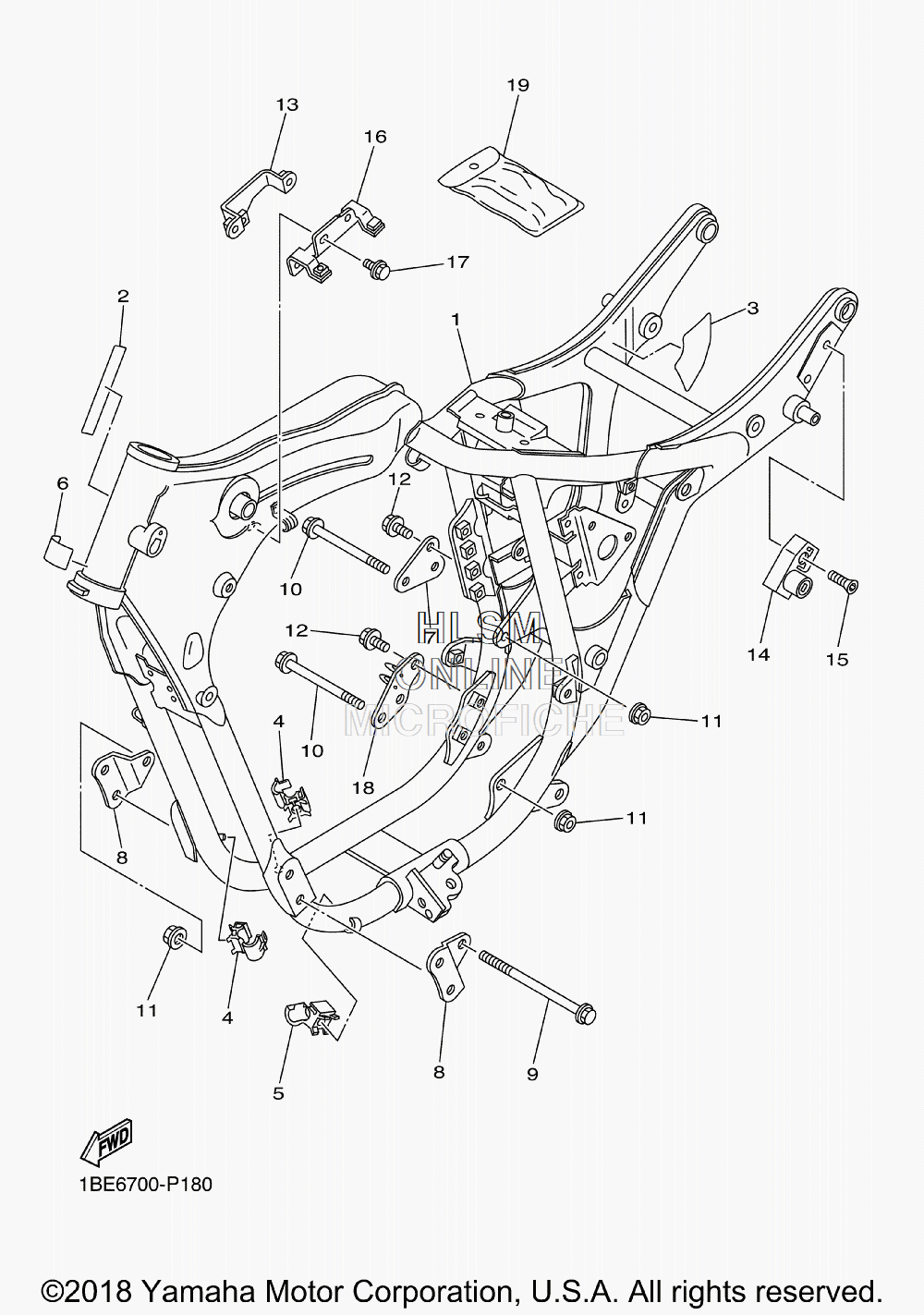

FRAME для Yamaha V STAR 250 - 2019 года выпуска
-
№АртикулНазвание
-
12UJ-21110-50-33 FRAME COMP. (YB - YAMAHA BLACK)FRAME COMP. (YB - YAMAHA BLACK)
-
23HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
346B-2139X-00-00 DAMPERDAMPER
-
490464-08189-00 CLAMPCLAMP
-
590464-10190-00 CLAMPCLAMP
-
619D-21732-00-00 SEAL 1SEAL 1
-
72UJ-21318-01-00 STAY, ENGINE 4STAY, ENGINE 4
-
82UJ-21315-00-00 STAY, ENGINE 1STAY, ENGINE 1
-
995814-08150-00 BOLT, FLANGEBOLT, FLANGE
-
1095814-08110-00 BOLT, FLANGEBOLT, FLANGE
-
1190179-08656-00 NUTNUT
-
1295817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
132UJ-21243-00-00 PLATE, BRIDGEPLATE, BRIDGE
-
1426H-21308-01-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
1590149-06154-00 SCREWSCREW
-
162UJ-2135Y-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
1795807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
182UJ-21319-00-00 STAY, ENGINE 6STAY, ENGINE 6
-
192UJ-28100-00-00 TOOL KITTOOL KIT
