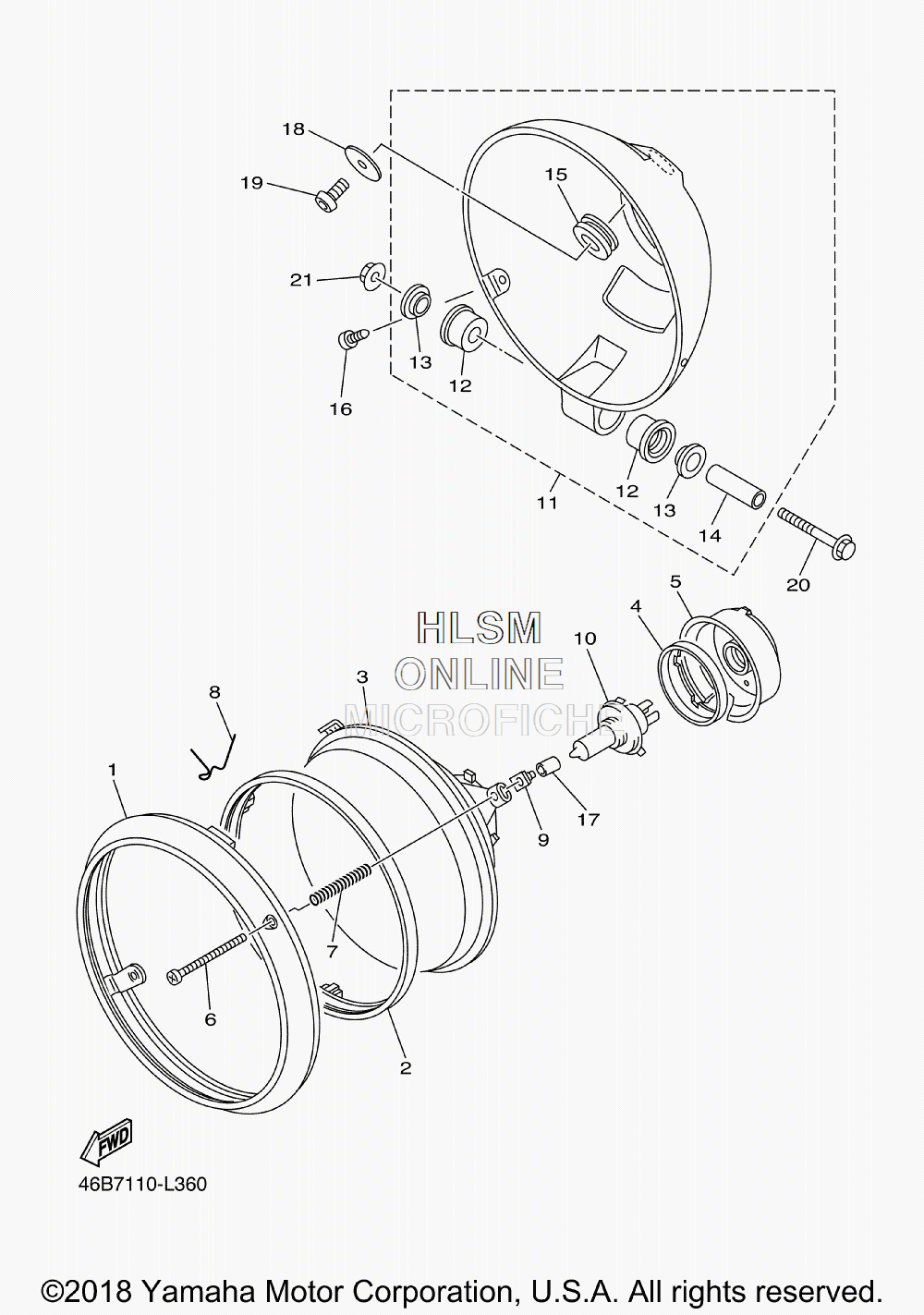

HEADLIGHT для Yamaha V STAR 250 - 2019 года выпуска
-
№АртикулНазвание
-
142X-84315-01-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
25Y3-84395-00-00 RING, RETAININGRING, RETAINING
-
342X-84321-A0-00 LENS ASSYLENS ASSY
-
42F9-84375-00-00 SETTING PLATE, BULBSETTING PLATE, BULB
-
52F9-84397-01-00 COVER, SOCKETCOVER, SOCKET
-
6341-84331-60-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
71A0-84332-60-00 SPRING, SCREWSPRING, SCREW
-
842X-84124-60-00 SPRING, SETSPRING, SET
-
9198-84334-60-00 NUT, ADJUSTINGNUT, ADJUSTING
-
102F9-84314-00-00 BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
112UJ-84330-00-00 BODY ASSYBODY ASSY
-
1242X-84345-00-00 ...DAMPER, HEADLIGHT...DAMPER, HEADLIGHT
-
131FK-84338-00-00 ...COLLAR, BODY FITTING...COLLAR, BODY FITTING
-
142UJ-84338-00-00 ...COLLAR, BODY FITTING...COLLAR, BODY FITTING
-
1542X-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
1690157-05084-00 SCREW, PAN HEADSCREW, PAN HEAD
-
173HT-84385-00-00 CAP,1CAP,1
-
1890201-060A3-00 WASHER, PLATEWASHER, PLATE
-
1992012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2095824-06045-00 BOLT, FLANGEBOLT, FLANGE
-
2195704-06500-00 NUT, FLANGENUT, FLANGE
