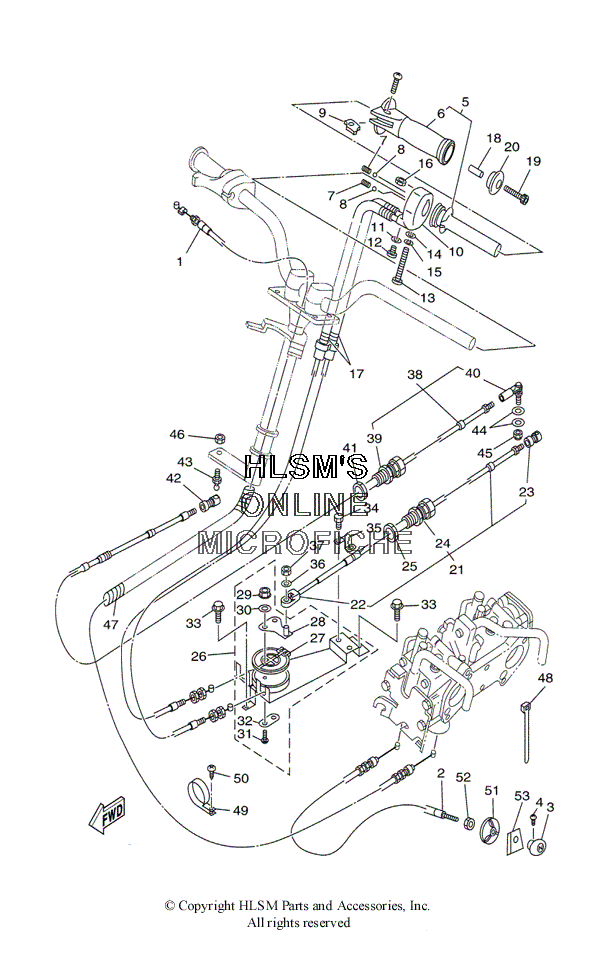

CONTROL CABLES для Yamaha GP 800 - 2000 года выпуска
-
№АртикулНазвание
-
166E-67252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
266E-67242-00-00 CABLE, CHOKECABLE, CHOKE
-
366E-41271-00-00 KNOB, CHOKEKNOB, CHOKE
-
490149-03M15-00 SCREWSCREW
-
5GP7-U157A-00-00 GRIP HANDLE ASSY. (YMUS)GRIP HANDLE ASSY. (YMUS)
-
6GP7-U155C-00-00 ...GRIP,HANDLE (YMUS)...GRIP,HANDLE (YMUS)
-
7GP7-U152P-00-00 SPRING (YMUS)SPRING (YMUS)
-
8GP7-U152R-00-00 BALL (YMUS)BALL (YMUS)
-
9GP7-U151M-00-00 LEVER ASSY (YMUS)LEVER ASSY (YMUS)
-
10GP7-U152M-00-00 HOUSING ASSY (YMUS)HOUSING ASSY (YMUS)
-
1192990-04600-00 WASHER, PLATEWASHER, PLATE
-
1298980-04010-00 SCREW, BINDSCREW, BIND
-
1397880-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492990-06600-00 WASHER, PLATEWASHER, PLATE
-
159299R-06100-00 WASHER (YMUS)WASHER (YMUS)
-
16GH1-U143B-00-00 NUT, SPECIAL (YMUS)NUT, SPECIAL (YMUS)
-
17GP7-U153D-00-00 CABLE, NOZZLE CONTROL 2 (YMUS)CABLE, NOZZLE CONTROL 2 (YMUS)
-
1890387-05800-00 COLLAR (YMUS)COLLAR (YMUS)
-
1990110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
20GP7-U155F-00-00 GRIP, END (YMUS)GRIP, END (YMUS)
-
21GP7-U153E-00-00 CABLE, NOZZLE CONTROL 3 (YMUS)CABLE, NOZZLE CONTROL 3 (YMUS)
-
22GH1-U046C-00-00 ...END, CABLE (YMUS)...END, CABLE (YMUS)
-
23EU0-U1461-30-00 ...SHAFT, JOINT BALL (YMUS)...SHAFT, JOINT BALL (YMUS)
-
24EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
25EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
26GP7-U153J-00-00 REMOCON, NOZZLE 2 (YMUS)REMOCON, NOZZLE 2 (YMUS)
-
27GP7-U153N-00-00 ...WHEEL (YMUS)...WHEEL (YMUS)
-
28GP7-U153R-00-00 ...ARM ASSY. (YMUS)...ARM ASSY. (YMUS)
-
2995720-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
3092990-05300-00 ...WASHER, INTERNAL TOOTH...WASHER, INTERNAL TOOTH
-
3197880-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
32GP7-U153P-00-00 ...WASHER (YMUS)...WASHER (YMUS)
-
3390119-069UJ-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
349708R-06012-00 BOLTBOLT
-
35GH1-U043H-00-00 CLAMP,CABLE (YMUS)CLAMP,CABLE (YMUS)
-
369299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
379578R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
38GP7-U1481-00-00 CABLE, STEERING (YMUS)CABLE, STEERING (YMUS)
-
39GK5-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
40GP8-U1461-T0-00 ...STUD, JOINT BALL (YMUS)...STUD, JOINT BALL (YMUS)
-
41EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
42GK5-U146F-00-00 SHAFT, JOINT BALL (YMUS)SHAFT, JOINT BALL (YMUS)
-
43EU0-U1461-01-00 STOOD, JOINT BALL (YMUS)STOOD, JOINT BALL (YMUS)
-
4490201-06906-00 WASHER, PLATEWASHER, PLATE
-
4595380-06700-00 NUTNUT
-
469572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
4790699-38U03-00 SPI-WRAP 25 (YMUS)SPI-WRAP 25 (YMUS)
-
4890601-200U1-00 BAND (YMUS)BAND (YMUS)
-
4990600-918U3-00 CLIP, NYLON 18 (YMUS)CLIP, NYLON 18 (YMUS)
-
509778R-60116-00 SCREW, TAPPING (YMUS)SCREW, TAPPING (YMUS)
-
51GP7-U724E-00-00 NUT, COMPRESSION (YMUS)NUT, COMPRESSION (YMUS)
-
52GA9-U724F-01-00 NUT (YMUS)NUT (YMUS)
-
53GJ1-6824D-01-00 PLATE, CHOKEPLATE, CHOKE
