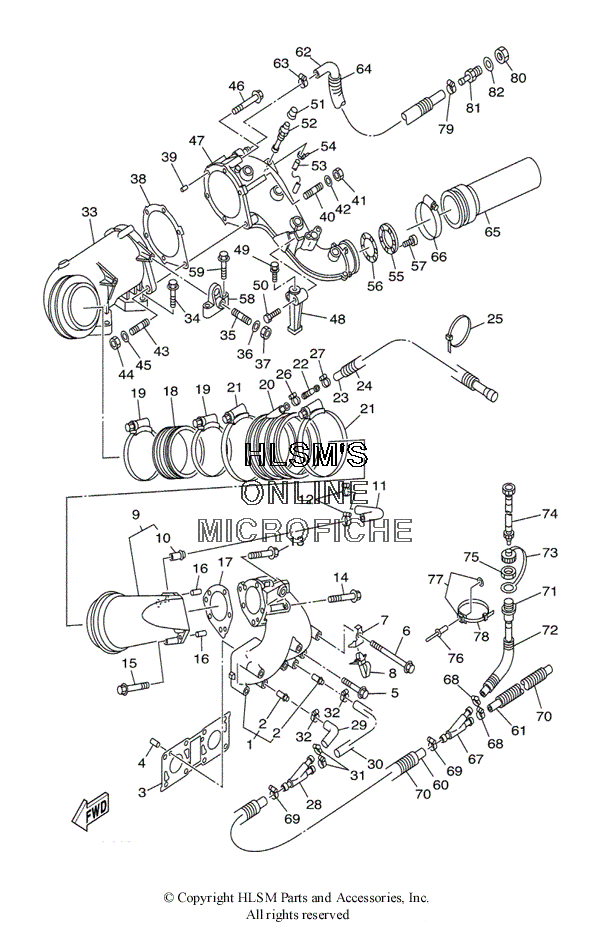

EXHAUST SYSTEM для Yamaha GP 800 - 2000 года выпуска
-
№АртикулНазвание
-
166E-14711-10-8P MUFFLER 1MUFFLER 1
-
26K8-51129-00-00 ...NIPPLE...NIPPLE
-
366E-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
493606-12019-00 PIN, DOWELPIN, DOWEL
-
590105-10M85-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690105-10M86-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
790465-20M78-00 CLAMPCLAMP
-
890465-12M56-00 CLAMPCLAMP
-
966E-14712-10-8P RING, JOINTRING, JOINT
-
1066E-51129-00-00 ...NIPPLE...NIPPLE
-
1166E-12576-00-00 HOSE 1HOSE 1
-
1290450-22M14-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390105-08M83-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1490105-08M84-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1590105-08M66-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1693606-12019-00 PIN, DOWELPIN, DOWEL
-
1766E-14749-00-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
1866E-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
1990450-99M02-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2066E-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
2190450-99M18-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2266E-51142-00-00 CONNECTIONCONNECTION
-
2366E-12589-00-00 HOSE 6HOSE 6
-
2490446-20M70-00 HOSEHOSE
-
2590465-13M60-00 CLAMPCLAMP
-
2690450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2790450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2863M-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
2966E-12577-00-00 HOSE 2HOSE 2
-
3066E-12579-00-00 HOSE 4HOSE 4
-
3190450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3290450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3366E-14721-10-94 MUFFLER 2MUFFLER 2
-
3490105-10M82-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3590116-10M66-00 BOLT, STUDBOLT, STUD
-
3692990-10600-00 WASHER, PLATEWASHER, PLATE
-
3795380-10600-00 NUTNUT
-
3866E-41124-10-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
3993606-12019-00 PIN, DOWELPIN, DOWEL
-
4090116-08M64-00 BOLT, STUDBOLT, STUD
-
4195333-08600-00 NUTNUT
-
4292990-08600-00 WASHER, PLATEWASHER, PLATE
-
4390116-10M65-00 BOLT, STUDBOLT, STUD
-
4495380-10600-00 NUTNUT
-
4592990-10600-00 WASHER, PLATEWASHER, PLATE
-
4690105-08M83-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4766E-41123-10-94 OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
4866E-14791-00-94 STAY, MUFFLERSTAY, MUFFLER
-
4990119-10M10-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5090119-10M00-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5166345-11900-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
5261L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
5390445-09M21-00 HOSEHOSE
-
5490465-11M10-00 CLAMPCLAMP
-
5566E-14763-10-00 SPACERSPACER
-
5666E-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
5797985-06216-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
5866E-14771-01-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
5990119-10M18-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6090445-18M02-00 HOSEHOSE
-
6190445-18M02-00 HOSEHOSE
-
6266E-12578-00-00 HOSE 3HOSE 3
-
6390450-22M14-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6490446-27M95-00 HOSEHOSE
-
6566E-14752-10-00 PIPE, OUTLETPIPE, OUTLET
-
6690460-90M11-00 CLAMP, HOSECLAMP, HOSE
-
6763M-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
6890450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6990450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
7090446-24M52-00 HOSEHOSE
-
7163M-12580-00-00 JOINT ASSYJOINT ASSY
-
7290446-24M89-00 HOSEHOSE
-
7368284-38501-00 CAP, 1CAP, 1
-
7463M-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
75EU0-61652-00-00 NUTNUT
-
7690267-48802-00 RIVET, BLINDRIVET, BLIND
-
7790600-917U4-00 CLAMP COMP.CLAMP COMP.
-
7890464-32801-00 CLAMPCLAMP
-
7990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
80EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
8190604-80798-00 THROUGH HULLTHROUGH HULL
-
82EU0-61438-00-00 PACKING (C)PACKING (C)
