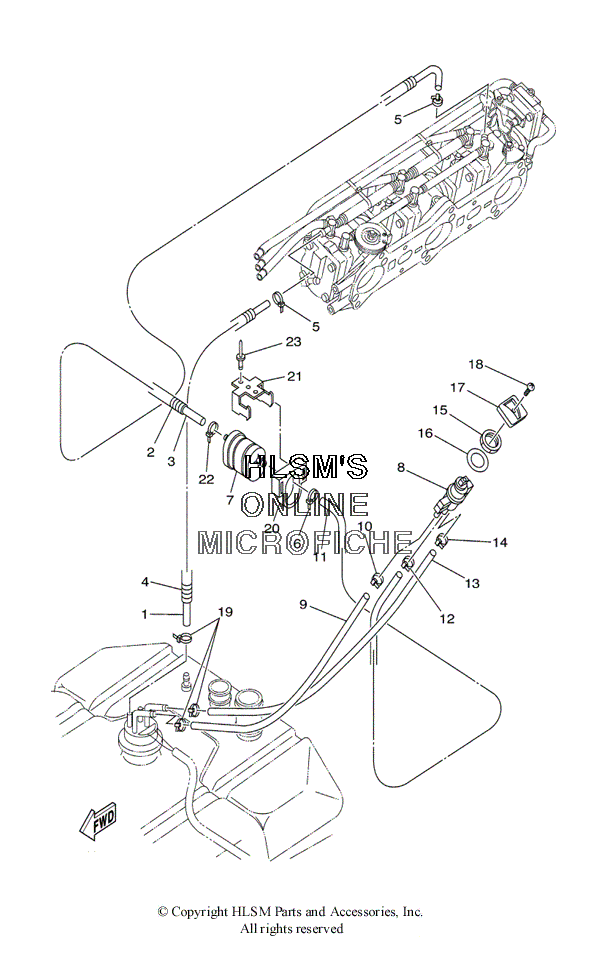

FUEL LINES для Yamaha XL 1200 LTD - 2000 года выпуска
-
№АртикулНазвание
-
190445-11M70-00 HOSEHOSE
-
290446-17MA5-00 HOSEHOSE
-
390445-11M71-00 HOSEHOSE
-
490446-17MA6-00 HOSEHOSE
-
590465-11M10-00 CLAMPCLAMP
-
690465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
766V-24560-00-00 FILTER ASSYFILTER ASSY
-
866V-24500-01-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
990445-11M67-00 HOSEHOSE
-
1090465-11M10-00 CLAMPCLAMP
-
1190445-11M68-00 HOSEHOSE
-
1290465-11M10-00 CLAMPCLAMP
-
1390445-11M69-00 HOSEHOSE
-
1490465-11M10-00 CLAMPCLAMP
-
1590170-22187-00 NUTNUT
-
1690202-229U1-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
17F0D-6777C-00-00 LEVER, COCKLEVER, COCK
-
1898980-04008-00 SCREW, BINDSCREW, BIND
-
1990465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
20EU0-U7817-00-00 HOLDER, FILTER (YMUS)HOLDER, FILTER (YMUS)
-
21FN8-67816-00-00 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
2290465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
2390267-489U1-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
