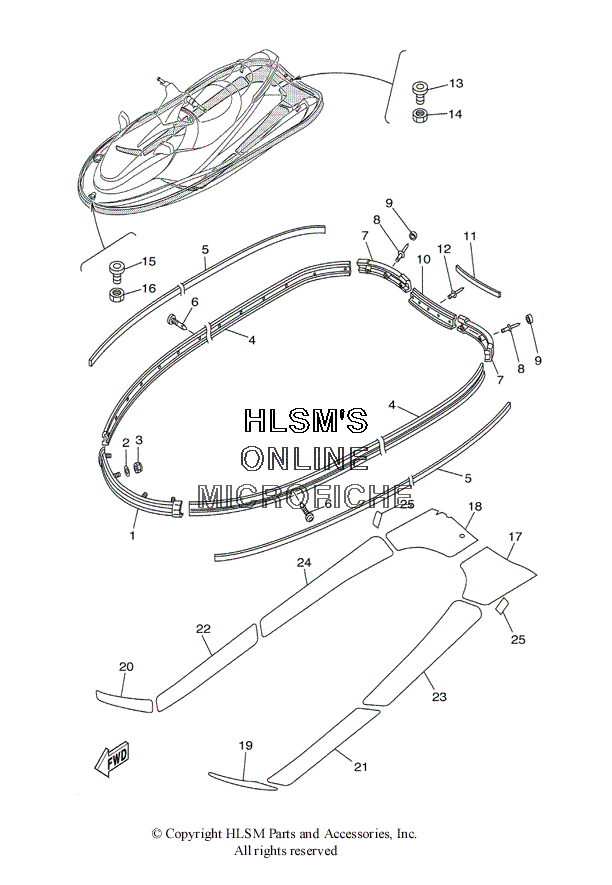

HULL - GUNWALE - MAT для Yamaha XL 1200 LTD - 2000 года выпуска
-
№АртикулНазвание
-
1GP7-U2501-20-00 BOW GUNWALE COMP. (YMUS)BOW GUNWALE COMP. (YMUS)
-
29299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
39572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
4F0D-U2512-00-00 GUNWALE, SIDE (YMUS)GUNWALE, SIDE (YMUS)
-
5F0D-U2519-00-00 INNER,GUNWALE (YMUS)INNER,GUNWALE (YMUS)
-
690169-059U1-00 SCREW,TAPPING (YMUS)SCREW,TAPPING (YMUS)
-
7F0D-U251D-00-00 GUNWALE, STERN 1 (YMUS)GUNWALE, STERN 1 (YMUS)
-
890267-489UT-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
9F0D-U352E-00-00 MAT, BOW (YMUS)MAT, BOW (YMUS)
-
10F0D-U252C-00-00 COVER, GUNWALE 1 (YMUS)COVER, GUNWALE 1 (YMUS)
-
11F0D-U252D-00-00 COVER, GUNWALE 2 (YMUS)COVER, GUNWALE 2 (YMUS)
-
1290267-489US-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
13FN8-61651-00-00 ROPE HOLEROPE HOLE
-
14EU0-61652-00-00 NUTNUT
-
15GH1-61651-00-00 ROPE HOLEROPE HOLE
-
16EU0-61652-00-00 NUTNUT
-
17F0D-U358F-01-00 MAT, UPPER LH (YMUS)MAT, UPPER LH (YMUS)
-
18F0D-U358G-01-00 MAT, UPPER RH (YMUS)MAT, UPPER RH (YMUS)
-
19F0D-U351H-00-00 MAT, STEP 1 (YMUS)MAT, STEP 1 (YMUS)
-
20F0D-U351J-00-00 MAT, STEP 2 (YMUS)MAT, STEP 2 (YMUS)
-
21F0D-U351K-00-00 MAT, STEP 3 (YMUS)MAT, STEP 3 (YMUS)
-
22F0D-U351M-00-00 MAT, STEP 4 (YMUS)MAT, STEP 4 (YMUS)
-
23F0D-U351N-00-00 MAT, STEP 5 (YMUS)MAT, STEP 5 (YMUS)
-
24F0D-U351P-00-00 MAT, STEP 6 (YMUS)MAT, STEP 6 (YMUS)
-
25F0D-U351R-00-00 MAT, STEP 7 (YMUS)MAT, STEP 7 (YMUS)
