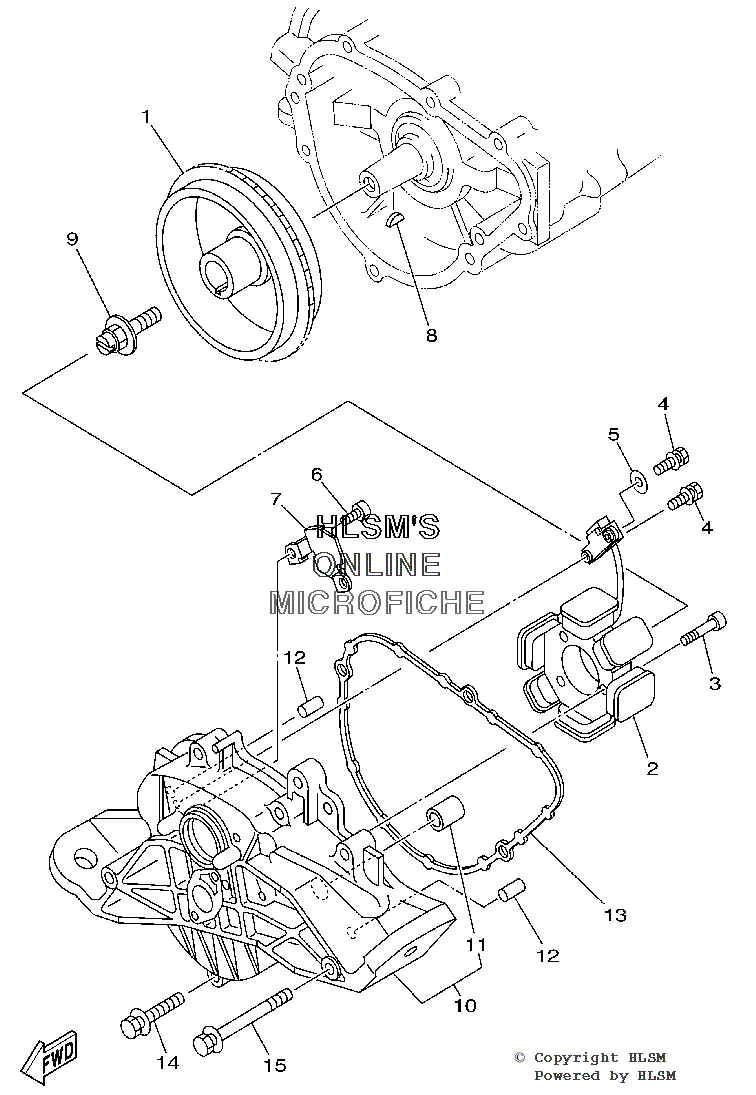

GENERATOR для Yamaha GP 800 AZ - 2001 года выпуска
-
№АртикулНазвание
-
166E-85550-00-00 ROTOR ASSYROTOR ASSY
-
266E-85510-00-00 STATOR ASSYSTATOR ASSY
-
391318-06030-00 BOLTBOLT
-
497513-05514-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590201-05M09-00 WASHER, PLATEWASHER, PLATE
-
691318-06014-00 BOLTBOLT
-
766E-81328-00-00 CLAMPCLAMP
-
890280-05013-00 KEY, WOODRUFFKEY, WOODRUFF
-
990109-10M72-00 BOLTBOLT
-
1066E-81337-11-8P COVER, FLYWHEELCOVER, FLYWHEEL
-
1190380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
1293608-16M16-00 PIN, DOWELPIN, DOWEL
-
1366E-81168-10-00 O-RINGO-RING
-
1490119-08M18-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590119-08M55-00 BOLT, WITH WASHERBOLT, WITH WASHER
