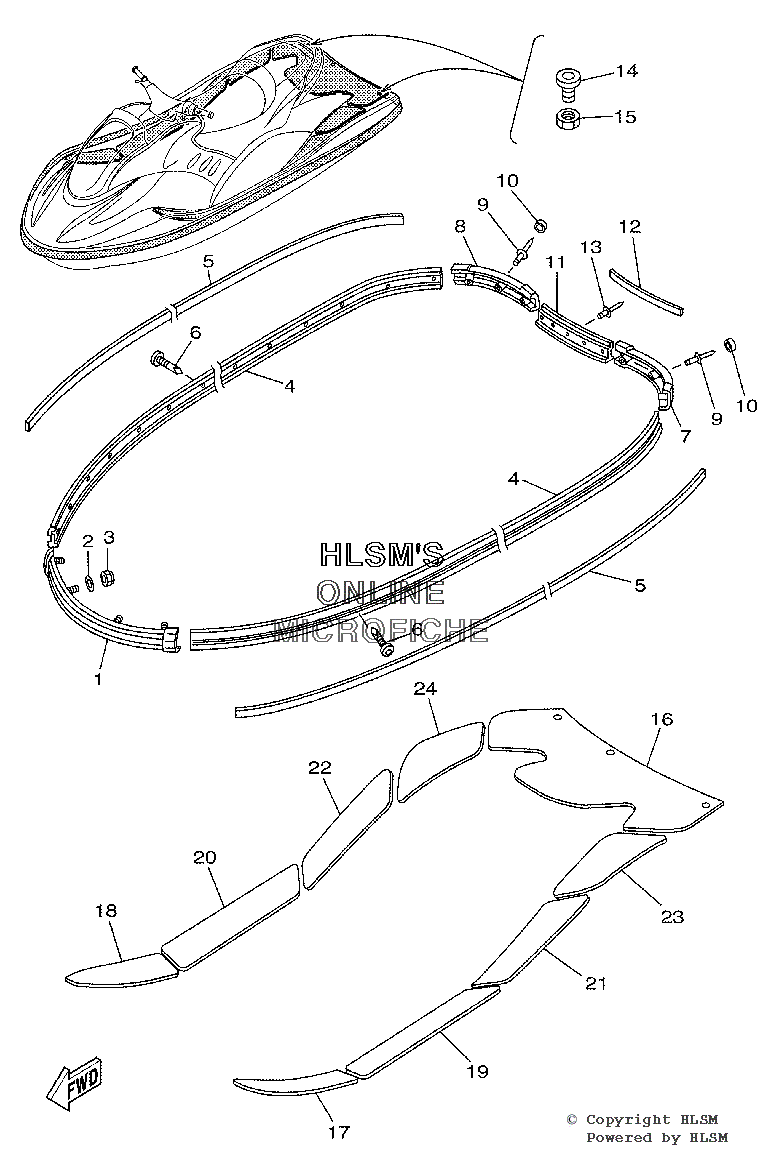

HULL-DECK 1 для Yamaha GP 800 AZ - 2001 года выпуска
-
№АртикулНазвание
-
1GP7-U2501-20-00 BOW GUNWALE COMPBOW GUNWALE COMP
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, FLANGENUT, FLANGE
-
4F0X-U2512-00-00 GUNWALE, SIDEGUNWALE, SIDE
-
5F0X-U2519-00-00 INNER, GUNWALEINNER, GUNWALE
-
690169-059U1-00 SCREW, TAPPING 3SCREW, TAPPING 3
-
7F0X-U251D-00-00 GUNWALE, STERN 1GUNWALE, STERN 1
-
8F0X-U251E-00-00 GUNWALE, STERN 2GUNWALE, STERN 2
-
990267-489US-00 RIVET, BLINDRIVET, BLIND
-
10GJ3-U352E-40-00 MAT, BOW (DARK PURPLISH BLUE METALLIC)MAT, BOW (DARK PURPLISH BLUE METALLIC)
-
11F0X-U252C-00-00 COVER, GUNWALE 1COVER, GUNWALE 1
-
12F0X-U252D-00-00 COVER, GUNWALE 2COVER, GUNWALE 2
-
1390267-489US-00 RIVET, BLINDRIVET, BLIND
-
14FN8-61651-01-00 ROPE HOLEROPE HOLE
-
15EU0-61652-00-00 NUTNUT
-
16F0X-U3581-00-00 MAT, UPPERMAT, UPPER
-
17F0X-U351H-00-00 MAT, STEP 1MAT, STEP 1
-
18F0X-U351J-00-00 MAT, STEP 2MAT, STEP 2
-
19F0X-U351K-01-00 MAT, STEP 3MAT, STEP 3
-
20F0X-U351M-01-00 MAT, STEP 4MAT, STEP 4
-
21F0X-U351N-00-00 MAT, STEP 5MAT, STEP 5
-
22F0X-U351P-00-00 MAT, STEP 6MAT, STEP 6
-
23F0X-U351R-00-00 MAT, STEP 7MAT, STEP 7
-
24F0X-U351S-00-00 MAT, STEP 8MAT, STEP 8
