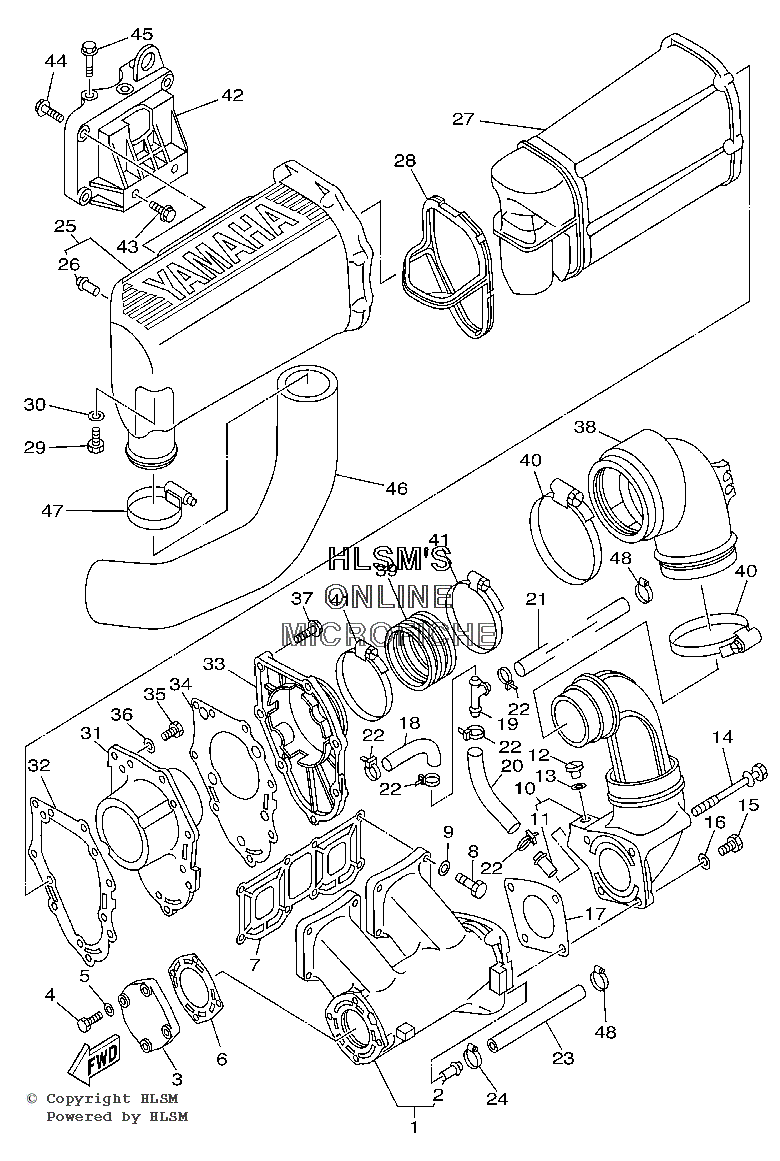

EXHAUST SYSTEM для Yamaha SJ 700 AZ - 2001 года выпуска
-
№АртикулНазвание
-
161X-14711-01-9P MUFFLER 1MUFFLER 1
-
26K8-51129-00-00 ...NIPPLE...NIPPLE
-
36M6-14718-01-9P PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
497013-06025-00 BOLTBOLT
-
592903-06600-00 WASHER, PLATEWASHER, PLATE
-
66M6-14739-A1-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
761X-14613-A0-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
897013-08035-00 BOLTBOLT
-
992903-08600-00 WASHER, PLATEWASHER, PLATE
-
1061L-14712-00-9P RING, JOINTRING, JOINT
-
116K8-51129-00-00 ...NIPPLE...NIPPLE
-
1290340-08M04-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1390430-08020-00 GASKETGASKET
-
1490119-08M73-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1597013-08025-00 BOLTBOLT
-
1692903-08600-00 WASHER, PLATEWASHER, PLATE
-
176R7-14749-A0-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
1890445-14M29-00 HOSE (L125)HOSE (L125)
-
196E5-24378-00-00 PIPE, JOINT 4PIPE, JOINT 4
-
2090445-14M29-00 HOSE (L125)HOSE (L125)
-
2190445-14M33-00 HOSE (L1150)HOSE (L1150)
-
2290465-11M10-00 CLAMPCLAMP
-
2390445-14M06-00 HOSE (L630)HOSE (L630)
-
2490450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
256R7-14721-00-9M MUFFLER 2MUFFLER 2
-
266R7-14485-00-00 ...PIPE, JOINT...PIPE, JOINT
-
276R7-14753-00-9M SILENCER, EXHAUSTSILENCER, EXHAUST
-
286R7-15761-00-00 SEAL, RUBBER 1SEAL, RUBBER 1
-
2997013-06020-00 BOLTBOLT
-
3092903-06600-00 WASHER, PLATEWASHER, PLATE
-
316R7-14785-00-9M DIFFUSERDIFFUSER
-
326R7-14755-A0-00 GASKET, SILENCERGASKET, SILENCER
-
336R7-41113-00-9M OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
346R7-41114-A0-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
3597095-06016-00 BOLTBOLT
-
3692995-06600-00 WASHERWASHER
-
3790119-06MA1-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3861L-14615-A0-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
3961L-14625-A0-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
4090460-90M11-00 CLAMP, HOSECLAMP, HOSE
-
4190460-70M16-00 CLAMP, HOSECLAMP, HOSE
-
426M6-14771-00-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
4390105-10M49-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4490105-10M88-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4590119-10M17-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4664V-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
4790460-64M15-00 CLAMP, HOSECLAMP, HOSE
-
4890601-11062-00 BAND, HOSE 1BAND, HOSE 1
