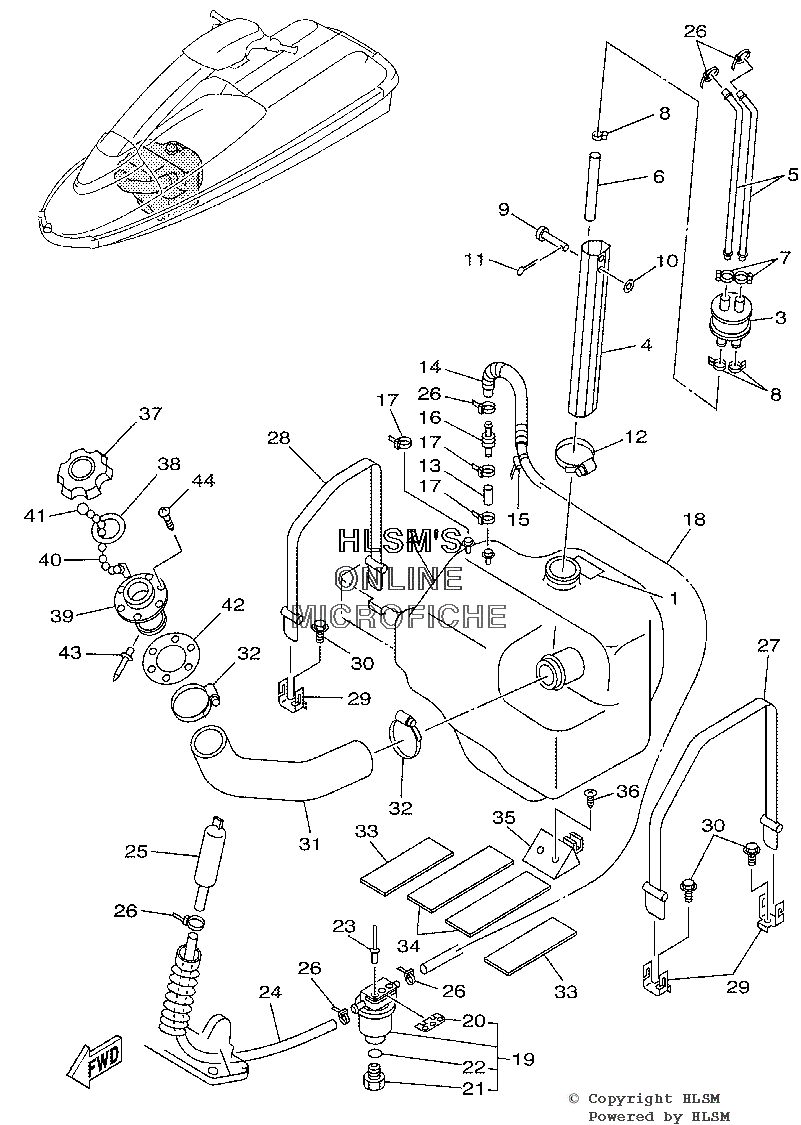

FUEL TANK для Yamaha SJ 700 AZ - 2001 года выпуска
-
№АртикулНазвание
-
1GM6-6418D-00-00 LABEL, FUEL TANKLABEL, FUEL TANK
-
2EW2-67711-01-00 TANK, FUELTANK, FUEL
-
3FJ0-67713-00-00 PIPE, JOINTPIPE, JOINT
-
4EW2-67716-01-00 PIPE, FILLERPIPE, FILLER
-
5EW2-67714-02-00 PIPE, SUCTION 3PIPE, SUCTION 3
-
690445-11903-00 HOSE (L105)HOSE (L105)
-
790601-11062-00 BAND, HOSE 1BAND, HOSE 1
-
890467-11032-00 CLIPCLIP
-
991790-05040-00 PIN, CLEVISPIN, CLEVIS
-
1092990-05600-00 WASHER, PLATEWASHER, PLATE
-
1191490-16010-00 PIN, COTTERPIN, COTTER
-
1290601-16274-00 BAND, HOSE 2BAND, HOSE 2
-
1390699-50003-00 HOSEHOSE
-
1490446-14M30-00 TUBETUBE
-
1590465-11M10-00 CLAMPCLAMP
-
16EU0-67767-31-00 CHECK VALVECHECK VALVE
-
1790465-11M10-00 CLAMPCLAMP
-
1890699-50120-00 HOSEHOSE
-
19EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
20EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
2170R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2270R-24489-00-00 ...O-RING...O-RING
-
2390267-48925-00 RIVET, BLINDRIVET, BLIND
-
2490699-50045-00 HOSEHOSE
-
25EW2-62150-00-00 PIPE, VENTILATION 3PIPE, VENTILATION 3
-
2690465-11M10-00 CLAMPCLAMP
-
27EW2-67821-00-00 BAND, FUEL TANKBAND, FUEL TANK
-
28EW2-67821-30-00 BAND, FUEL TANKBAND, FUEL TANK
-
29EW2-65772-00-00 HOOK AHOOK A
-
3090105-06900-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
31GM6-67844-10-00 HOSEHOSE
-
3290601-15573-00 BAND, HOSE 5BAND, HOSE 5
-
33GM6-67593-00-00 MATMAT
-
34GM6-67594-00-00 MATMAT
-
35EW2-67822-01-00 DAMPER FUEL TANKDAMPER FUEL TANK
-
3697780-50114-00 SCREW, PAN HEAD TAPPINGSCREW, PAN HEAD TAPPING
-
37FN8-67831-01-00 CAP, FUEL FILLER (YB)CAP, FUEL FILLER (YB)
-
38EU0-67832-00-00 PACKING 1PACKING 1
-
39FN8-67833-00-00 SOCKETSOCKET
-
40EU0-67835-00-00 CHAIN BALLCHAIN BALL
-
41EU0-67839-00-00 COUPLINGCOUPLING
-
42EU0-67834-00-00 PACKING, FUEL FILLERPACKING, FUEL FILLER
-
4390267-40935-00 RIVET, BLINDRIVET, BLIND
-
44EU0-67869-00-00 SCREW, FLAT HEADSCREW, FLAT HEAD
