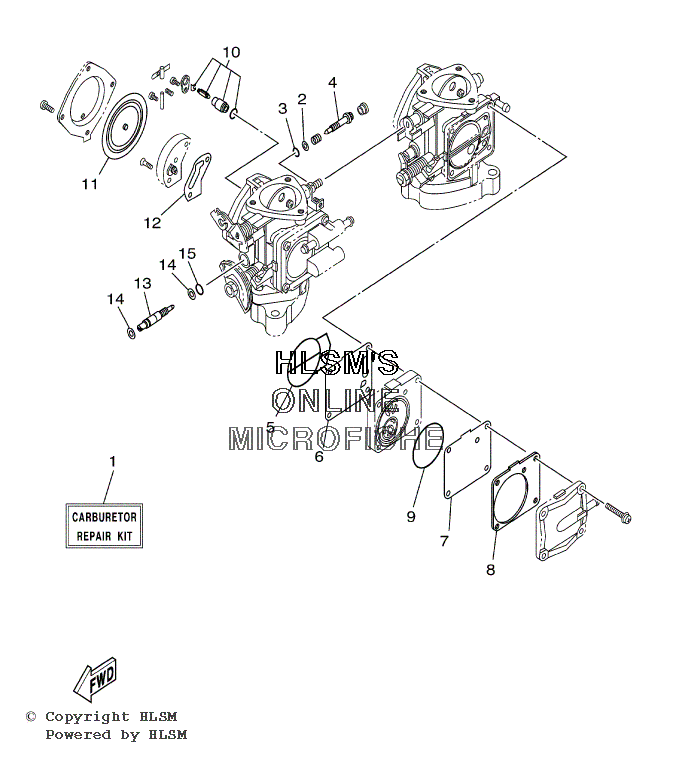

CARBURETOR REPAIR KIT для Yamaha XL 700 Z - 2001 года выпуска
-
№АртикулНазвание
-
167E-W0093-00-00 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
2812-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
3812-14147-00-00 ...O-RING...O-RING
-
46K8-14946-10-00 ...METERING NEEDLE...METERING NEEDLE
-
56K8-14564-00-00 ...O-RING...O-RING
-
66K8-24411-20-00 ...DIAPHRAGM...DIAPHRAGM
-
76K8-24421-10-00 ...VALVE, CHECK...VALVE, CHECK
-
86K8-24431-20-00 ...GASKET, FUEL PUMP 1...GASKET, FUEL PUMP 1
-
96K8-14563-00-00 ...O-RING...O-RING
-
1061X-14916-15-00 ...NEEDLE...NEEDLE
-
116R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
126K8-14536-11-00 ...GASKET...GASKET
-
1365U-14923-10-00 ...SCREW, PILOT...SCREW, PILOT
-
14822-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
15583-14561-00-00 ...O-RING...O-RING
