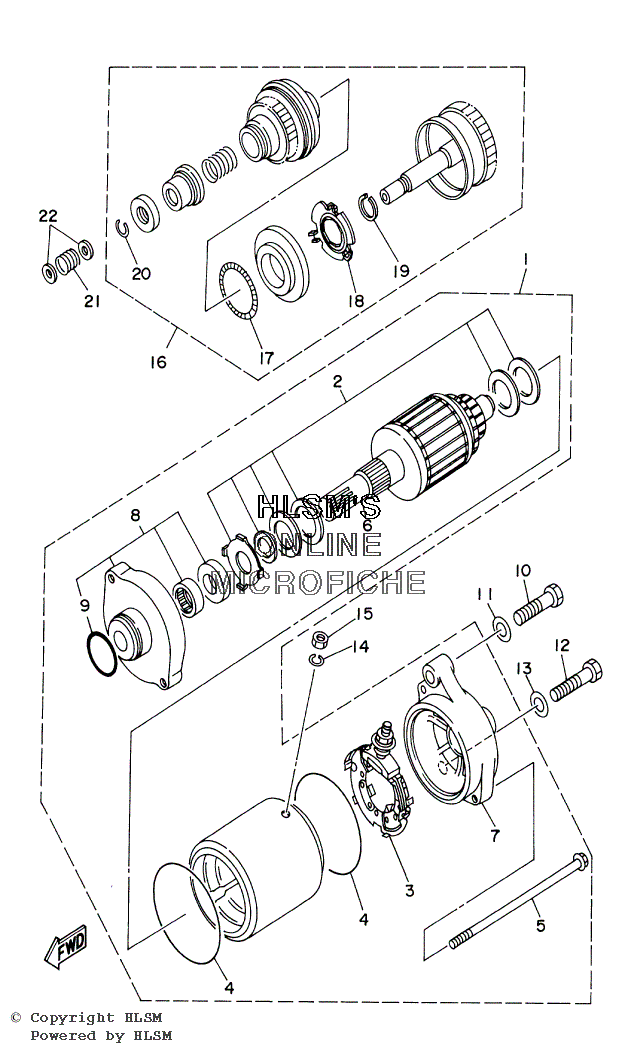

STARTING MOTOR для Yamaha XL 700 Z - 2001 года выпуска
-
№АртикулНазвание
-
16M6-81800-10-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
23AJ-81809-00-00 ...WASHER KIT...WASHER KIT
-
36M6-81840-10-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
411H-81844-00-00 ...GASKET...GASKET
-
56M6-81826-00-00 ...BOLT...BOLT
-
66M6-81850-00-00 ...ARMATURE ASSY...ARMATURE ASSY
-
76M6-81820-00-00 ...REAR BRACKET ASSY...REAR BRACKET ASSY
-
86M6-81830-00-00 ...FRONT BRACKET ASSY...FRONT BRACKET ASSY
-
926H-81847-00-00 ......O-RING......O-RING
-
1097013-08040-00 BOLTBOLT
-
1192903-08600-00 WASHER, PLATEWASHER, PLATE
-
1297013-08035-00 BOLTBOLT
-
1392903-08600-00 WASHER, PLATEWASHER, PLATE
-
1492990-06100-00 WASHER, SPRINGWASHER, SPRING
-
1595380-06700-00 NUTNUT
-
166M6-8183E-00-00 IDLE GEAR COMPIDLE GEAR COMP
-
176M6-81866-00-00 ...WEIGHT SPRING...WEIGHT SPRING
-
186M6-81865-00-00 ...WEIGHT HOLDER...WEIGHT HOLDER
-
1993440-25M08-00 ...CIRCLIP...CIRCLIP
-
2093450-18M06-00 ...CIRCLIP...CIRCLIP
-
2190501-14M73-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2292903-06600-00 WASHER, PLATEWASHER, PLATE
