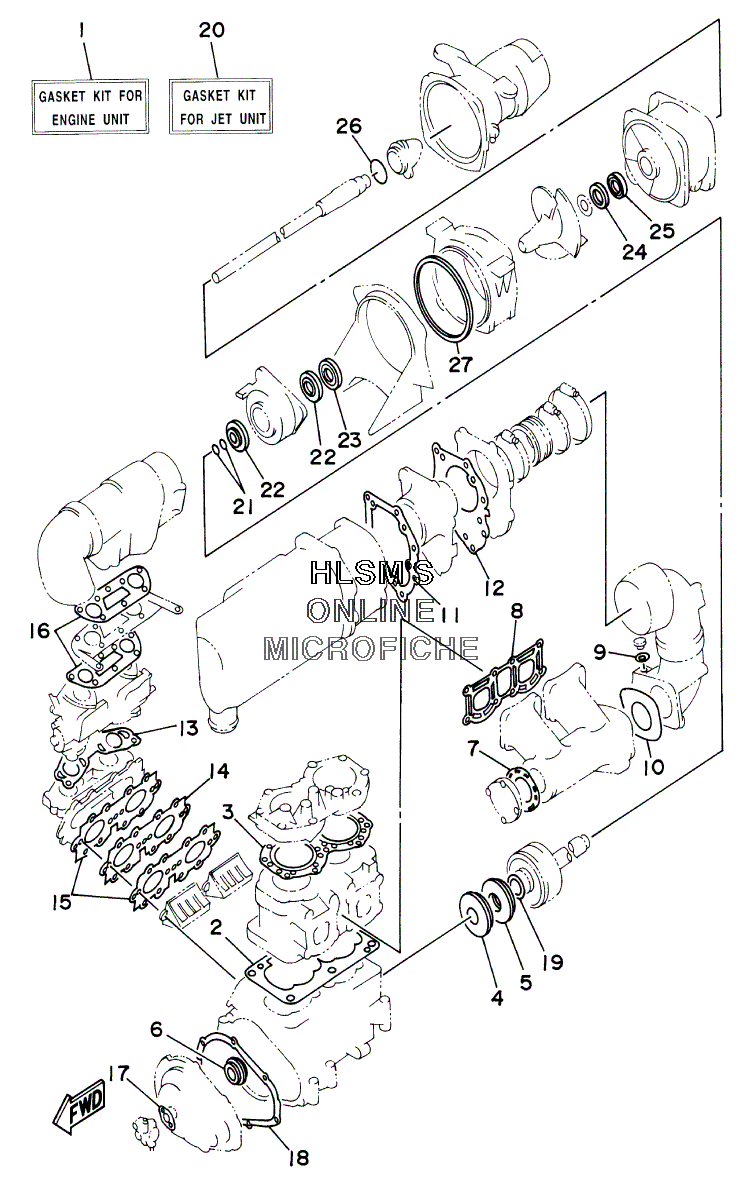

GASKET KIT - ENGINE AND JET UNIT для Yamaha SJ 700 A - 2002 года выпуска
-
№АртикулНазвание
-
164U-W0001-00-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
26M6-11351-A2-00 ...GASKET, CYLINDER...GASKET, CYLINDER
-
362T-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
493102-36M33-00 ...OIL SEAL...OIL SEAL
-
593101-36M46-00 ...OIL SEAL...OIL SEAL
-
693103-32M01-00 ...OIL SEAL...OIL SEAL
-
76M6-14739-A1-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
861X-14613-A0-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
990430-08020-00 ...GASKET...GASKET
-
106R7-14749-A0-00 ...GASKET, MUFFLER DAMPER 2...GASKET, MUFFLER DAMPER 2
-
116R7-14755-A0-00 ...GASKET, SILENCER...GASKET, SILENCER
-
126R7-41114-A0-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1362T-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
1462T-13624-00-00 ...PLATE, REED VALVE...PLATE, REED VALVE
-
1562T-13566-00-00 ...GASKET...GASKET
-
1662T-13674-00-00 ...GASKET, AIR COOLER COVER 1...GASKET, AIR COOLER COVER 1
-
176R8-13116-A0-00 ...GASKET, PUMP CASE...GASKET, PUMP CASE
-
186M6-81365-A0-00 ...GASKET, HOLE COVER...GASKET, HOLE COVER
-
1962T-45127-00-00 ...SEAL...SEAL
-
2061X-W0001-22-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
2193210-17MA4-00 ...O-RING...O-RING
-
2293101-25M55-00 ...OIL SEAL...OIL SEAL
-
2393101-25M56-00 ...OIL SEAL...OIL SEAL
-
2493102-25M34-00 ...OIL SEAL...OIL SEAL
-
2593101-25M50-00 ...OIL SEAL...OIL SEAL
-
2693210-46M16-00 ...O-RING...O-RING
-
276R7-51117-01-00 ...PACKING...PACKING
