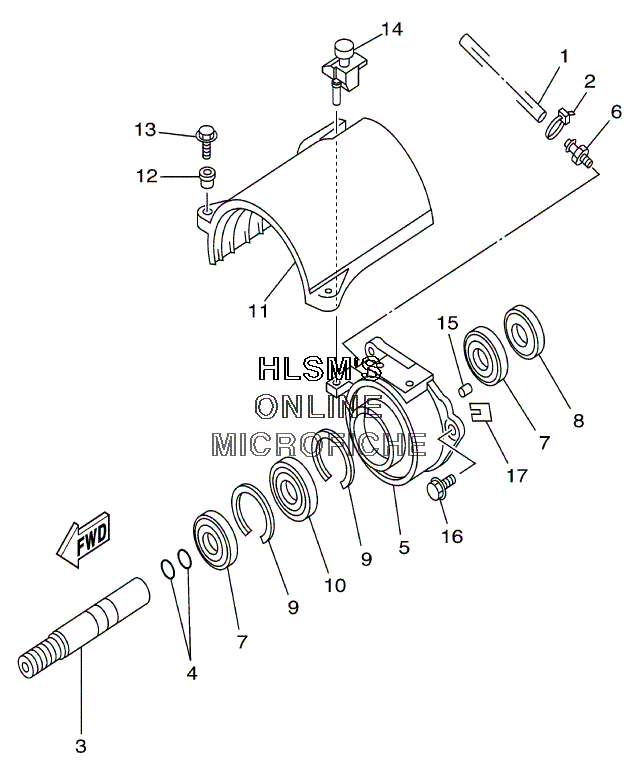

PROPULSION SYSTEM - INTERNAL для Yamaha SJ 700 A - 2002 года выпуска`
-
№АртикулНазвание
-
190445-09M17-00 HOSE (L320)HOSE (L320)
-
290465-11M10-00 CLAMPCLAMP
-
36R7-51323-02-00 SHAFT, COUPLORSHAFT, COUPLOR
-
493210-17MA4-00 ...O-RING...O-RING
-
561X-45332-03-94 HOUSING, BEARINGHOUSING, BEARING
-
661L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
793101-25M55-00 ...OIL SEAL...OIL SEAL
-
893101-25M56-00 ...OIL SEAL...OIL SEAL
-
993430-47M04-00 CIRCLIPCIRCLIP
-
1093306-205U6-00 BEARINGBEARING
-
1161X-51381-00-00 COVERCOVER
-
1290387-06M60-00 COLLARCOLLAR
-
1397595-06525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490480-06M69-00 GROMMETGROMMET
-
1593606-12019-00 PIN, DOWELPIN, DOWEL
-
1690119-08907-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
17GD0-67249-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
17GD0-67249-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
Все узлы модели:
- AIR SILENCER W/ INTAKE
- BUMBER W/ GUNWALE MAT
- CARBURETOR
- CARBURETOR REPAIR KIT
- CONTROL CABLES
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CRANKCASE
- ELECTRICAL 1
- ELECTRICAL 2
- ENGINE HATCH
- EXHAUST - HOSES
- EXHAUST SYSTEM
- FUEL LINES
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD W/ STEERING POLE
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL FITTINGS W/ BILGE DRAIN
- MODEL INFO - MANUALS
- PROPULSION SYSTEM - EXTERNAL
- • PROPULSION SYSTEM - INTERNAL
- STARTING MOTOR
