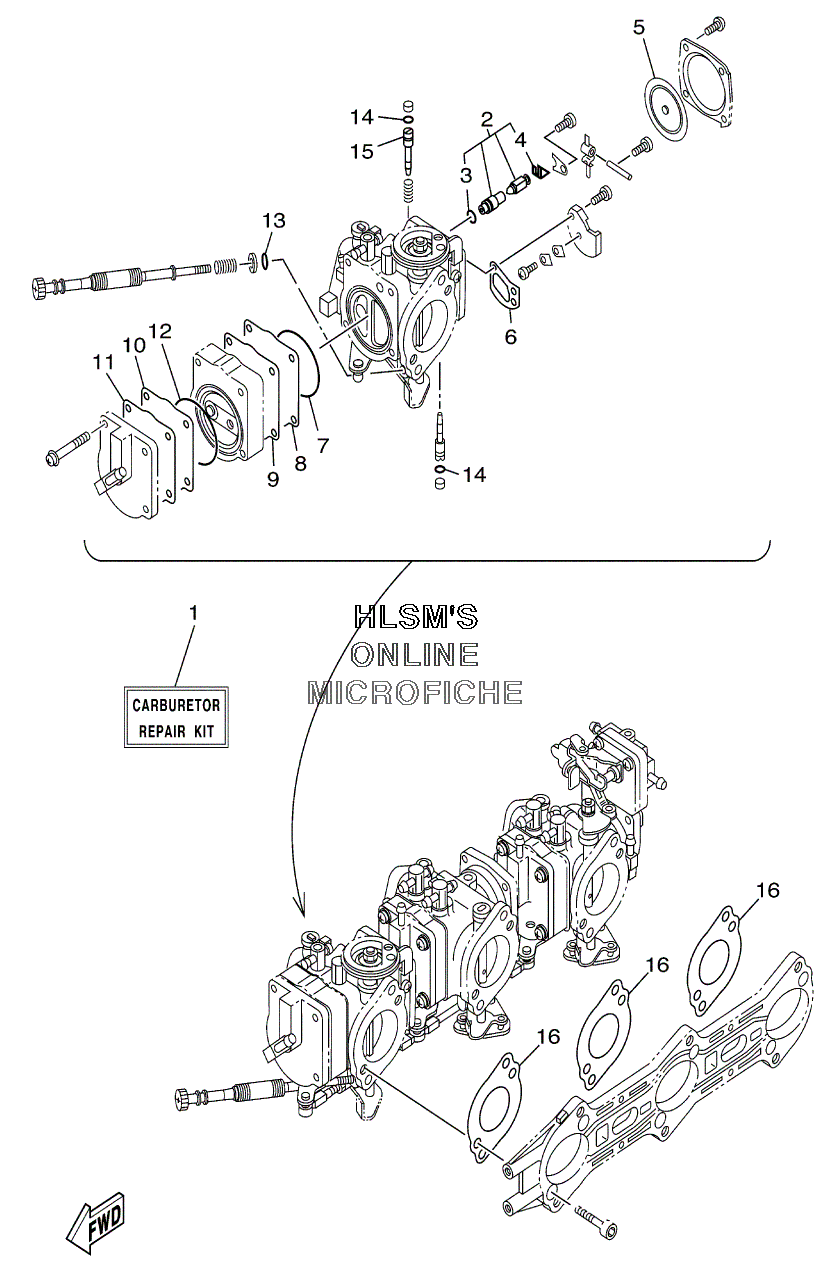

CARBURETOR REPAIR KIT для Yamaha XLT 1200 A - 2002 года выпуска
-
№АртикулНазвание
-
166V-W0093-01-00 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
264T-14916-00-00 ....NEEDLE....NEEDLE
-
38F2-14147-00-00 ......O-RING......O-RING
-
47EG-14159-00-00 ......CLIP......CLIP
-
56R7-14541-00-00 ....DIAPHRAGM, PUMP....DIAPHRAGM, PUMP
-
66K8-14536-11-00 ....GASKET....GASKET
-
766E-14563-01-00 ....O-RING....O-RING
-
866E-24471-00-00 ....DIAPHRAGM....DIAPHRAGM
-
966E-24411-00-00 ....DIAPHRAGM....DIAPHRAGM
-
1066E-24421-00-00 ....VALVE, CHECK....VALVE, CHECK
-
1166E-24431-00-00 ....GASKET, FUEL PUMP 1....GASKET, FUEL PUMP 1
-
1266E-14564-01-00 ....O-RING....O-RING
-
13812-14147-00-00 .....O-RING.....O-RING
-
1493210-03119-00 ....O-RING....O-RING
-
1566V-14946-00-00 ....PLATE, NEEDLE FITTING....PLATE, NEEDLE FITTING
