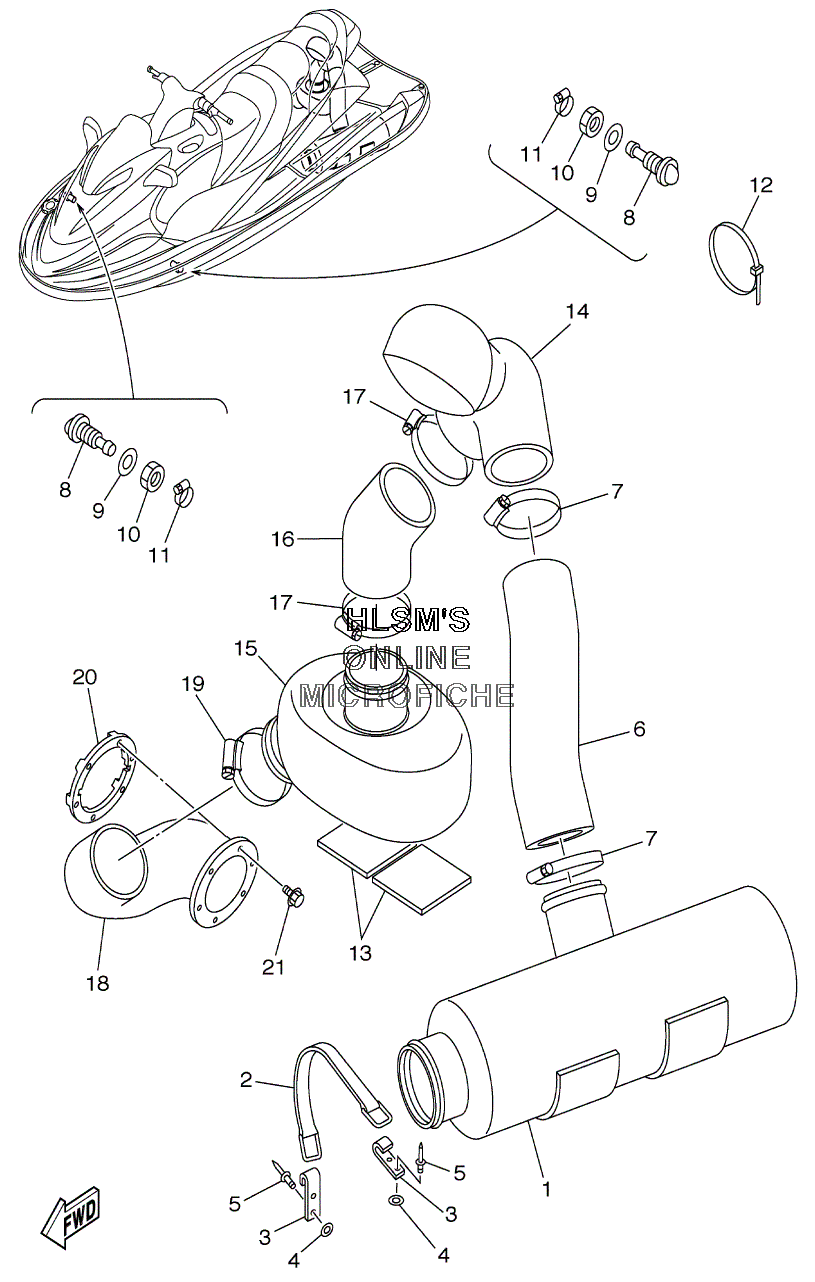

EXHAUST - WATER BOX для Yamaha XLT 1200 A - 2002 года выпуска
-
№АртикулНазвание
-
1F0D-67550-03-00 WATER LOCK COMP.WATER LOCK COMP.
-
2GA7-6756E-00-00 BAND,WATER LOCKBAND,WATER LOCK
-
3GA7-65772-00-00 HOOK AHOOK A
-
49299R-05200-00 WASHERWASHER
-
590267-489U7-00 RIVET, BLINDRIVET, BLIND
-
6F0D-6758B-00-00 HOSE,EXHAUST 1HOSE,EXHAUST 1
-
790601-195UD-00 BAND, HOSE 95BAND, HOSE 95
-
8F0P-6753B-00-00 PILOT, WATERPILOT, WATER
-
990430-16910-00 GASKETGASKET
-
10F0X-62733-00-00 NUTNUT
-
1190601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
1290464-32801-00 CLAMPCLAMP
-
13F0D-U7578-00-00 PACKING, HOSE 2PACKING, HOSE 2
-
14F0D-6753D-01-00 RESONATOR, 2RESONATOR, 2
-
15F0D-64261-02-00 TANK, WATERTANK, WATER
-
16F0D-6758C-01-00 HOSE,EXHAUST2HOSE,EXHAUST2
-
1790601-195UD-00 BAND, HOSE 95BAND, HOSE 95
-
18F0V-U758D-00-00 HOSE,EXHAUST 3HOSE,EXHAUST 3
-
1990601-195UD-00 BAND, HOSE 95BAND, HOSE 95
-
20F0V-U757B-00-00 PLATEPLATE
-
2190119-06851-00 BOLT, WITH WASHERBOLT, WITH WASHER
