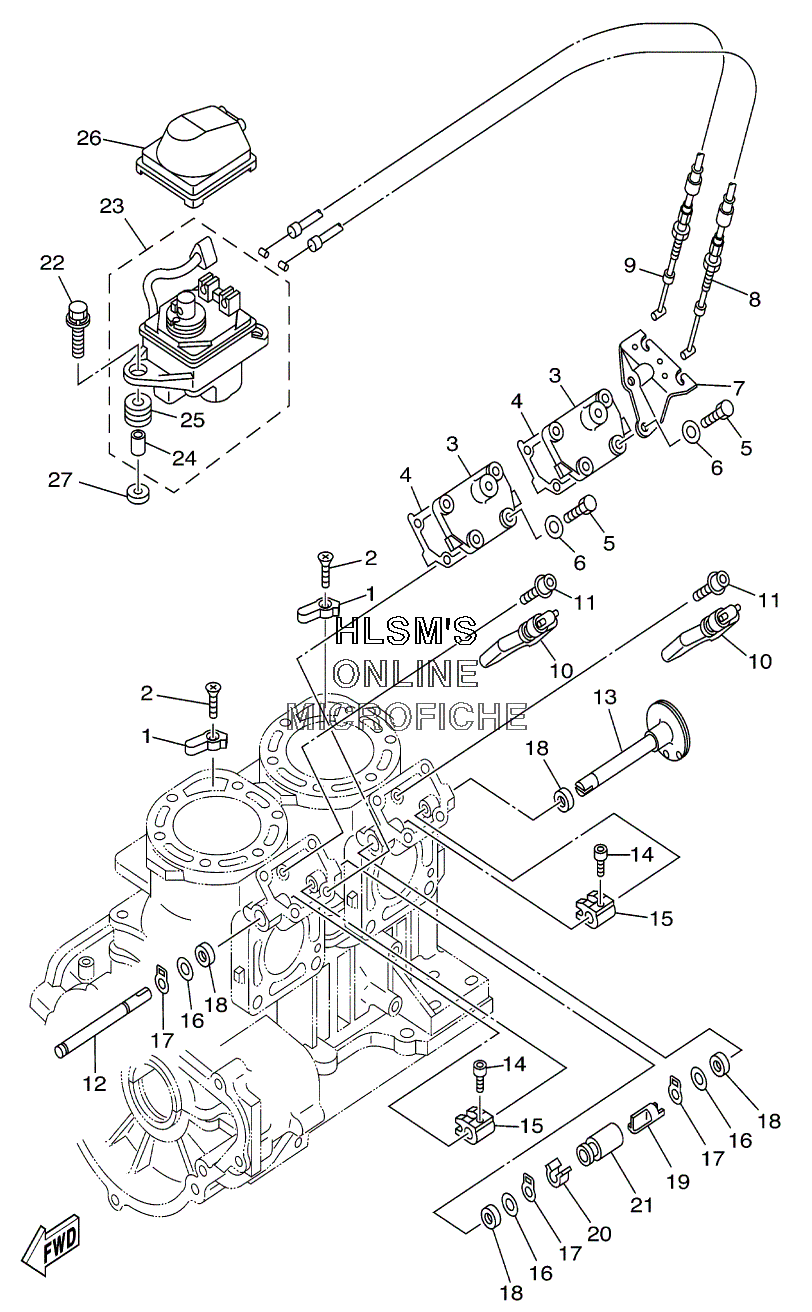

CYLINDER W/ CRANKCASE 2 для Yamaha XLT 800 A - 2002 года выпуска
-
№АртикулНазвание
-
166E-11325-00-00 ANODEANODE
-
298780-05020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
366E-1131M-01-8P COVERCOVER
-
466E-1131B-01-00 GASKET, COVERGASKET, COVER
-
597013-06025-00 BOLTBOLT
-
692903-06600-00 WASHER, PLATEWASHER, PLATE
-
766E-11998-00-00 BRACKET 1BRACKET 1
-
866V-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
966V-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
1066E-1131S-10-00 VALVE ASSY.VALVE ASSY.
-
1190110-05008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1266E-1131V-00-00 SHAFT 1SHAFT 1
-
1366E-1132C-00-00 PULLEY, SHAFTPULLEY, SHAFT
-
1490110-04M03-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1566E-11832-01-00 LEVER, LINKLEVER, LINK
-
1690201-08M09-00 WASHER, PLATEWASHER, PLATE
-
1793410-08M12-00 CIRCLIPCIRCLIP
-
1893109-08M07-00 OIL SEALOIL SEAL
-
1966E-1131H-00-00 JOINT 1JOINT 1
-
2066E-1131J-10-00 JOINT 2JOINT 2
-
2166E-1131C-10-00 COVER, JOINTCOVER, JOINT
-
2290119-069UX-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2360G-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
2490387-07598-00 ...COLLAR...COLLAR
-
2590480-14023-00 ...GROMMET...GROMMET
-
2666E-85825-00-00 COVER, WIRECOVER, WIRE
-
2790201-06M04-00 WASHER, PLATEWASHER, PLATE
