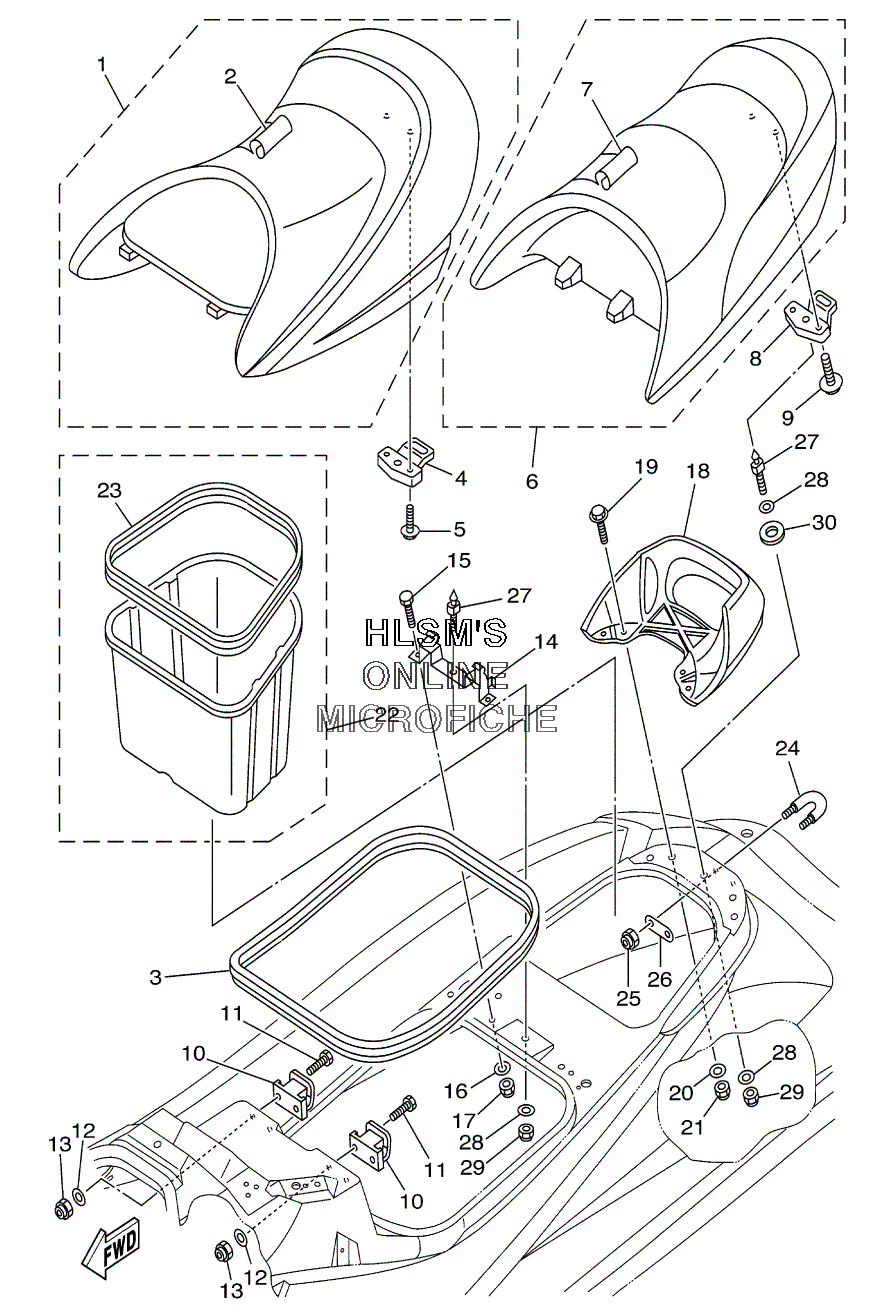

SEAT для Yamaha XLT 800 A - 2002 года выпуска
-
№АртикулНазвание
-
1F1F-U371A-02-00 DOUBLE SEAT ASSY (BLACK (BL))DOUBLE SEAT ASSY (BLACK (BL))
-
2F1F-U371B-02-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3F0D-U266C-00-00 PACKING 4PACKING 4
-
4F0D-63850-01-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
590119-06853-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6F1F-U372A-02-00 SINGLE SEAT ASSY (BLACK (BL))SINGLE SEAT ASSY (BLACK (BL))
-
7F1F-U372B-02-00 ...COVER, SEAT...COVER, SEAT
-
8F0D-63850-01-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
990119-06853-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10F0V-U378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
1190101-069U0-00 BOLTBOLT
-
129299R-06200-00 WASHERWASHER
-
139572R-06300-00 NUT, NYLONNUT, NYLON
-
14F0D-6378D-01-00 STAY, SEAT 2STAY, SEAT 2
-
1597080-10025-00 BOLTBOLT
-
169299R-10200-00 WASHERWASHER
-
179572R-10300-00 NUT, FLANGENUT, FLANGE
-
18F0D-U271B-00-00 GRIP, HAND (YAMAHA (YB))GRIP, HAND (YAMAHA (YB))
-
1990119-06820-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
209299R-06200-00 WASHERWASHER
-
219572R-06300-00 NUT, NYLONNUT, NYLON
-
22F0D-U474A-00-00 UNDER LOCKER ASSYUNDER LOCKER ASSY
-
23F0D-U266D-00-00 ...PACKING 5...PACKING 5
-
24GP7-61628-00-00 STERN EYESTERN EYE
-
259572R-08300-00 NUT, FLANGENUT, FLANGE
-
26GP7-U4953-00-00 PLATE APLATE A
-
27GH1-U3774-00-00 PINPIN
-
289299R-10200-00 WASHERWASHER
-
299572R-10300-00 NUT, FLANGENUT, FLANGE
-
30F0D-6376D-00-00 PLATE, DAMPERPLATE, DAMPER
