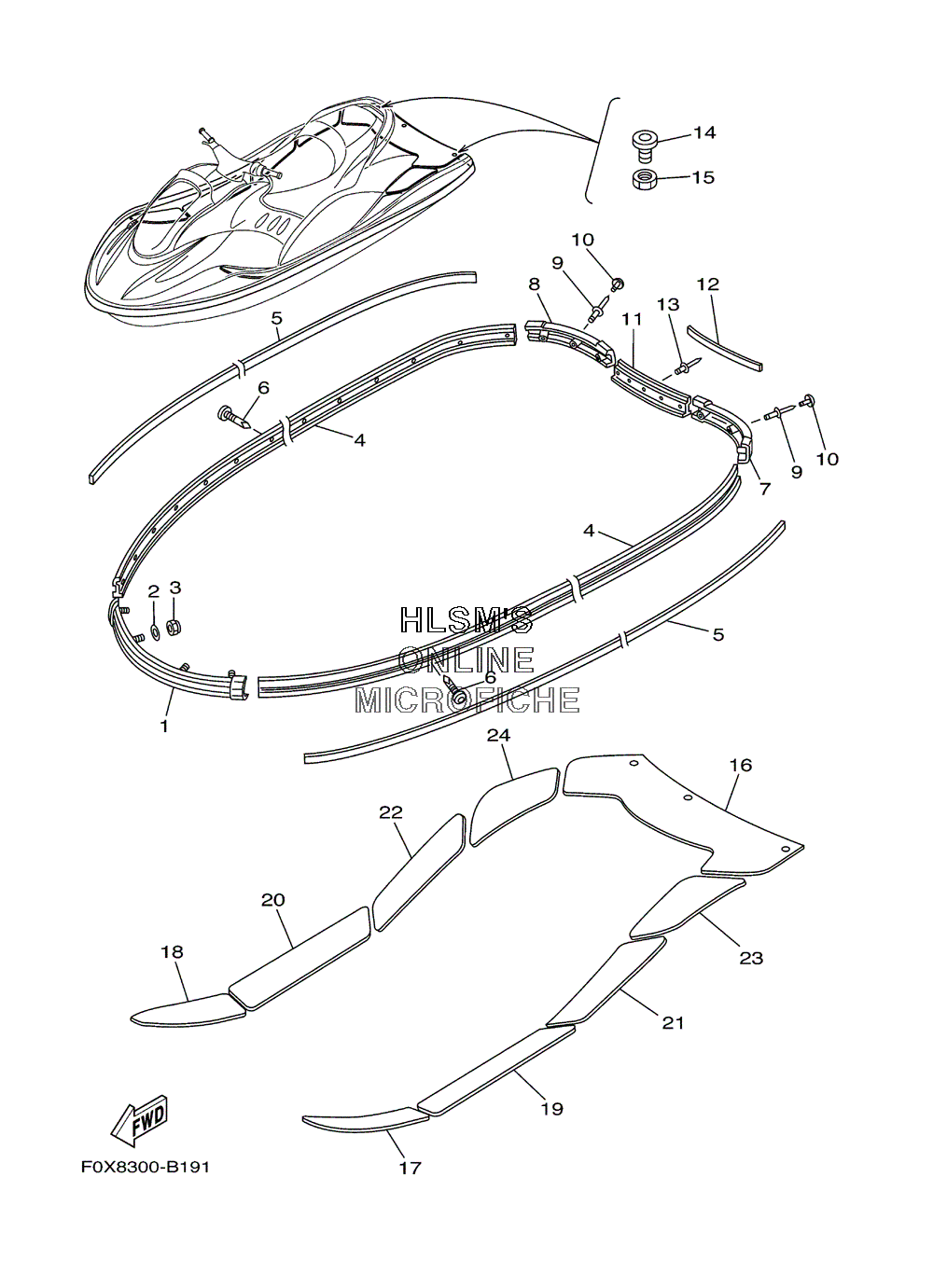

BUMBER W/ GUNWALE MAT для Yamaha GP800R WAVERUNNER 2-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
1GP7-U2501-20-00 BOW GUNWALE COMP. (BLACK (BL))BOW GUNWALE COMP. (BLACK (BL))
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, FLANGENUT, FLANGE
-
4F0X-U2512-00-00 GUNWALE, SIDE (BLACK (BL))GUNWALE, SIDE (BLACK (BL))
-
5F0X-U2519-02-00 INNER, GUNWALE (BLACK (BL))INNER, GUNWALE (BLACK (BL))
-
690169-059U1-00 SCREW,TAPPINGSCREW,TAPPING
-
7F0X-U251D-00-00 GUNWALE, STERN 1 (BLACK (BL))GUNWALE, STERN 1 (BLACK (BL))
-
8F0X-U251E-00-00 GUNWALE, STERN 2 (BLACK (BL))GUNWALE, STERN 2 (BLACK (BL))
-
990267-489US-00 RIVET, BLINDRIVET, BLIND
-
10GJ3-U352E-40-00 MAT, BOWMAT, BOW
-
11F0X-U252C-00-00 COVER, GUNWALE 1 (BLACK (BL))COVER, GUNWALE 1 (BLACK (BL))
-
12F0X-U252D-01-00 COVER, GUNWALE 2 (BLACK (BL))COVER, GUNWALE 2 (BLACK (BL))
-
1390267-489US-00 RIVET, BLINDRIVET, BLIND
-
14FN8-61651-01-00 ROPE HOLEROPE HOLE
-
15EU0-61652-00-00 NUTNUT
-
16F0X-U3581-03-00 MAT, UPPER (BLACK (BL))MAT, UPPER (BLACK (BL))
-
17F0X-U351H-00-00 MAT, STEP 1 (BLACK (BL))MAT, STEP 1 (BLACK (BL))
-
18F0X-U351J-00-00 MAT, STEP 2 (BLACK (BL))MAT, STEP 2 (BLACK (BL))
-
19F0X-U351K-04-00 MAT, STEP 3 (BLACK (BL))MAT, STEP 3 (BLACK (BL))
-
20F0X-U351M-04-00 MAT, STEP 4 (BLACK (BL))MAT, STEP 4 (BLACK (BL))
-
21F0X-U351N-00-00 MAT, STEP 5 (BLACK (BL))MAT, STEP 5 (BLACK (BL))
-
22F0X-U351P-00-00 MAT, STEP 6 (BLACK (BL))MAT, STEP 6 (BLACK (BL))
-
23F0X-U351R-03-00 MAT, STEP 7 (BLACK (BL))MAT, STEP 7 (BLACK (BL))
-
24F0X-U351S-03-00 MAT, STEP 8 (BLACK (BL))MAT, STEP 8 (BLACK (BL))
